8-Rock Noggin Configuration Assembly (Noggin 500 & 1000 only) Noggin

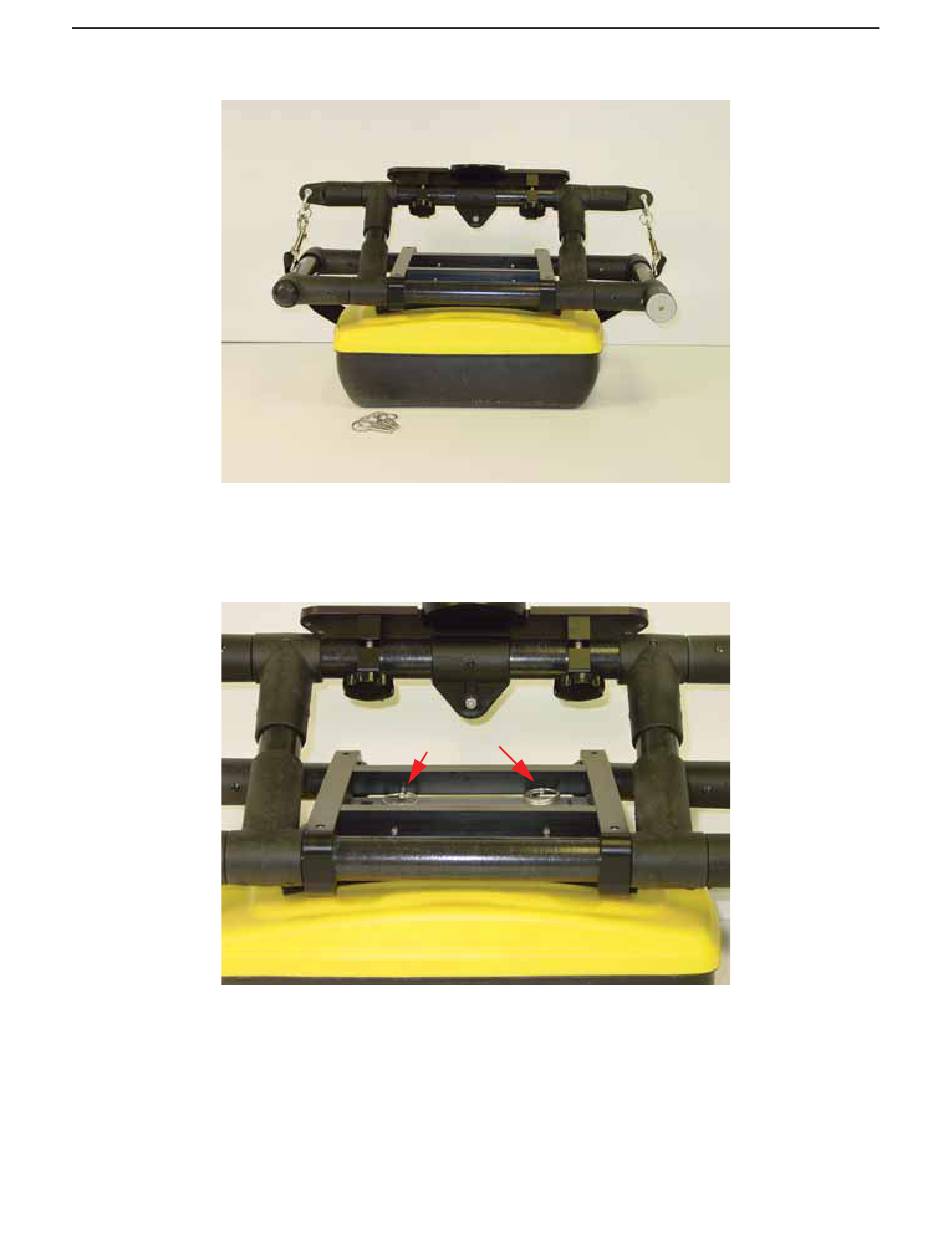

Figure: 8-8 Using the 4 holes on the bottom of the Rock Noggin frame, place the frame on the 4 mounting posts on
the top of the Noggin (shown in Figure 8-6). Push the frame down until it cannot go any further. The Noggin should be
oriented such that the 37 socket receptacle on the Noggin is on the same side as the SmartButton on the frame.
Metal Pins
Figure: 8-9 Secure the frame to the Noggin by pushing the 4 metal pins into the holes on the frame as shown.
