Noggin 6-SmartTow Configuration Assembly

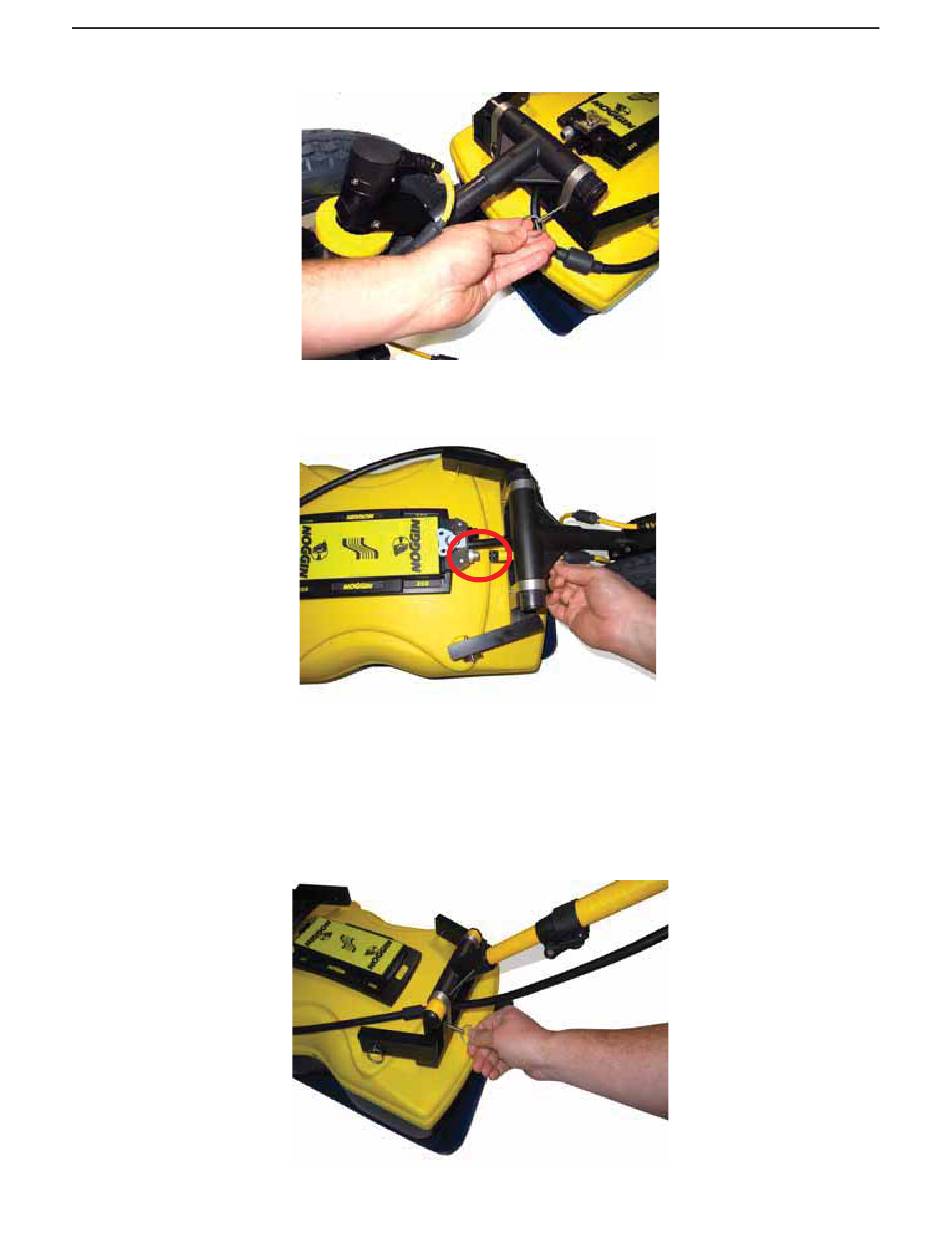

The yellow cable from the odometer connects to the receptacle on the connector to the Noggin.
Odometer calibration is critical for accurate data images. Odometer calibration instructions are
available in 13.5.2: p.120.
Attach the handle to the front SmartTow Bracket Assembly with the U-brackets and pins. The
black cable should lie between the SmartTow Bracket and the handle. Secure the cable along the
side of the handle using 2 or 3 Velcro straps.
