4-Base Configuration Assembly

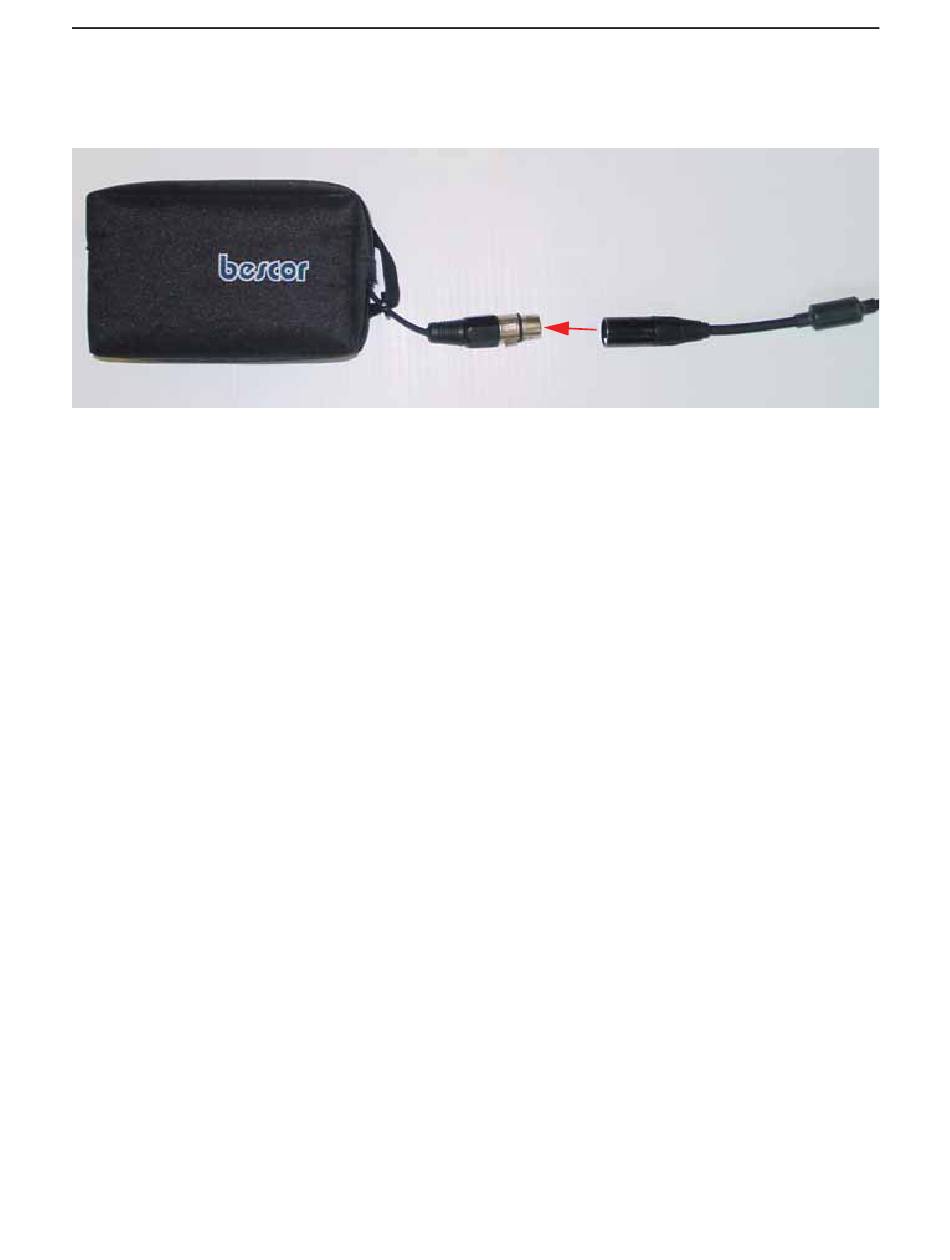

Power Connection: The third connection on the SmartHandle cable attaches to a power supply.
The round, 4-pin connector attaches to the belt battery.
The base configuration has all the components necessary for data acquisition in Free Run or
Button modes (13.3.2.2: p.98). This configuration is appropriate for:
1) special or unusual GPR applications that require a customized data acquisition
platform fabricated by the customer or a third-party.
2) time-lapse data collection to monitor changes in the subsurface at one location over
time.
The base configuration is often augmented with handles and odometer wheels to make data
acquisition easier.
