13.2.2 Screen Overview

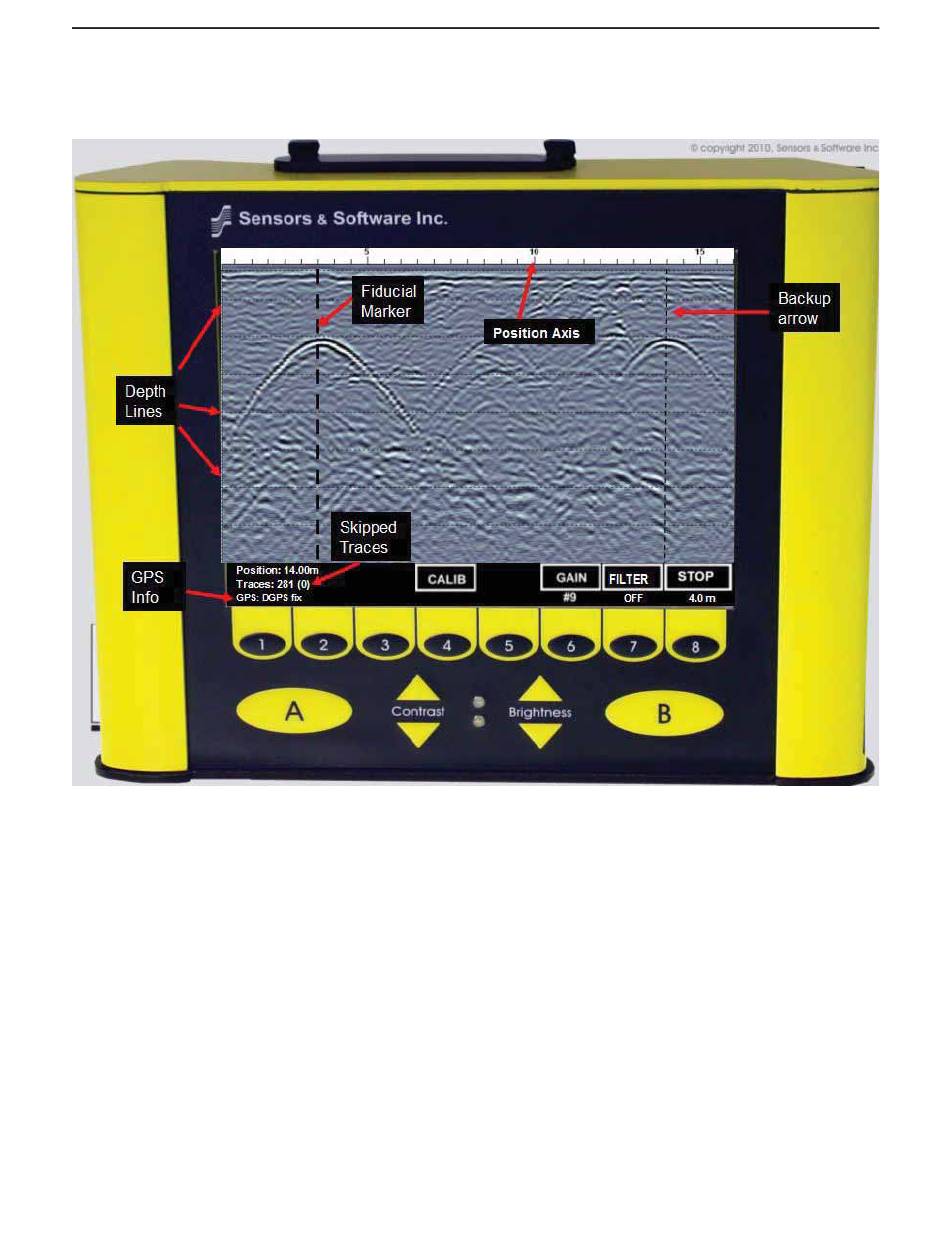

Figure: 13-1 Survey & Map Data Acquisition Screen
The Noggin screen is shown in Figure 13-1. It is divided into 3 sections. The top section provides
positioning information. The center section contains the actual data and the bottom section
contains the menu.

13.2.3 Position Information

The top section contains horizontal spatial positioning information in feet or meters depending on
the position units setting (13.3.1.7: p.97).

13.2.4 Data Display

The data image displays the actual data collected or replayed. The image also contains the
Depth Lines and any Fiducial Markers the user enters. See the sections below for more details.
