2 Noggin Components
The Noggin family of GPR systems consists of the Noggin 100, 250, 500 and 1000. The name
reflects the center frequency of the GPR signals in MHz.
The basic configuration and key components of the Noggin 250, 500 and 1000 are shown in
Figure 2-1 and Figure 2-2. The key components of the Noggin 100 are shown in Figure 2-3.

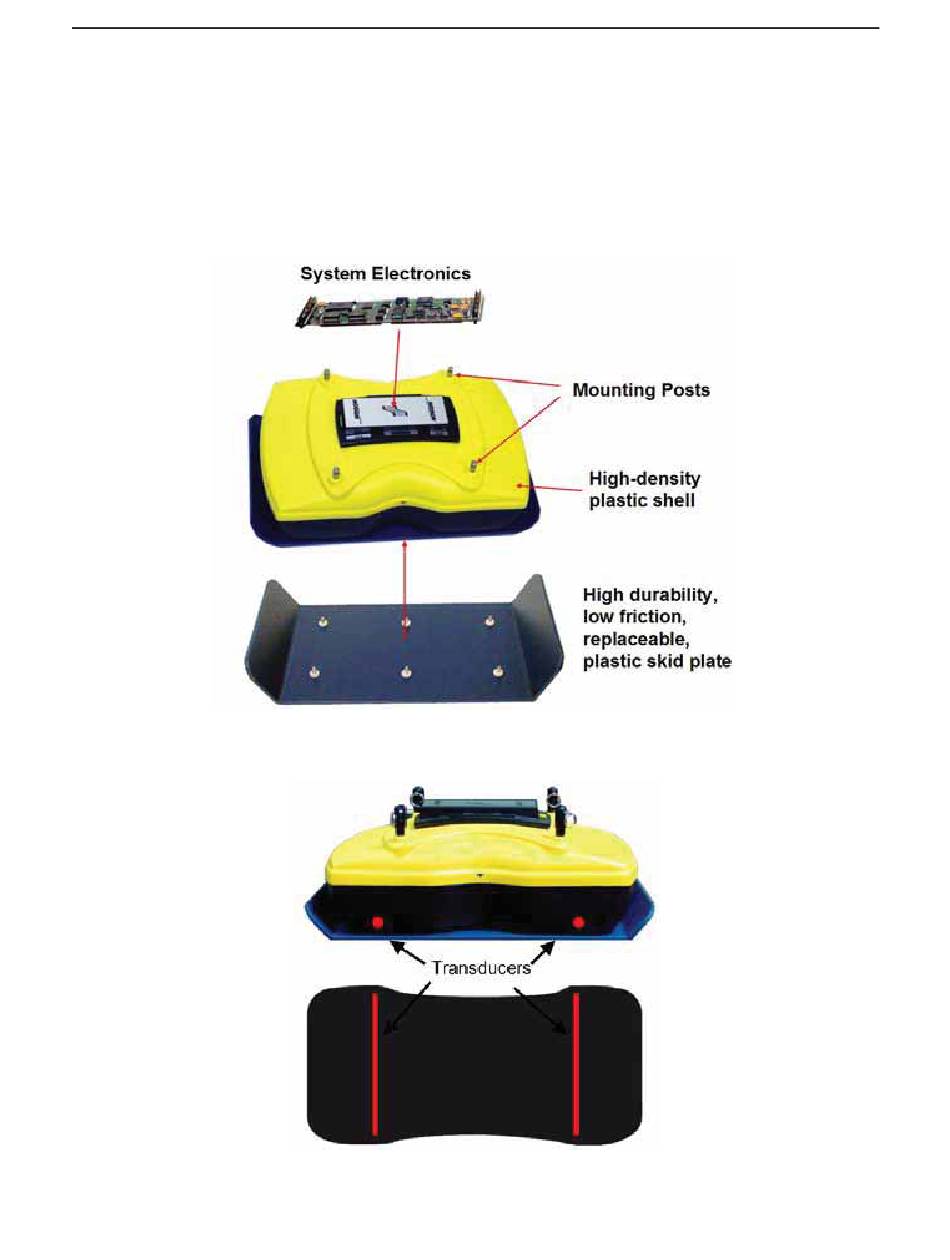

Figure: 2-1 Noggin components
Figure: 2-2 Location of the Noggin transducers
