Noggin
7-SmartHandle Configuration Assembly (Noggin 500 & 1000 only)

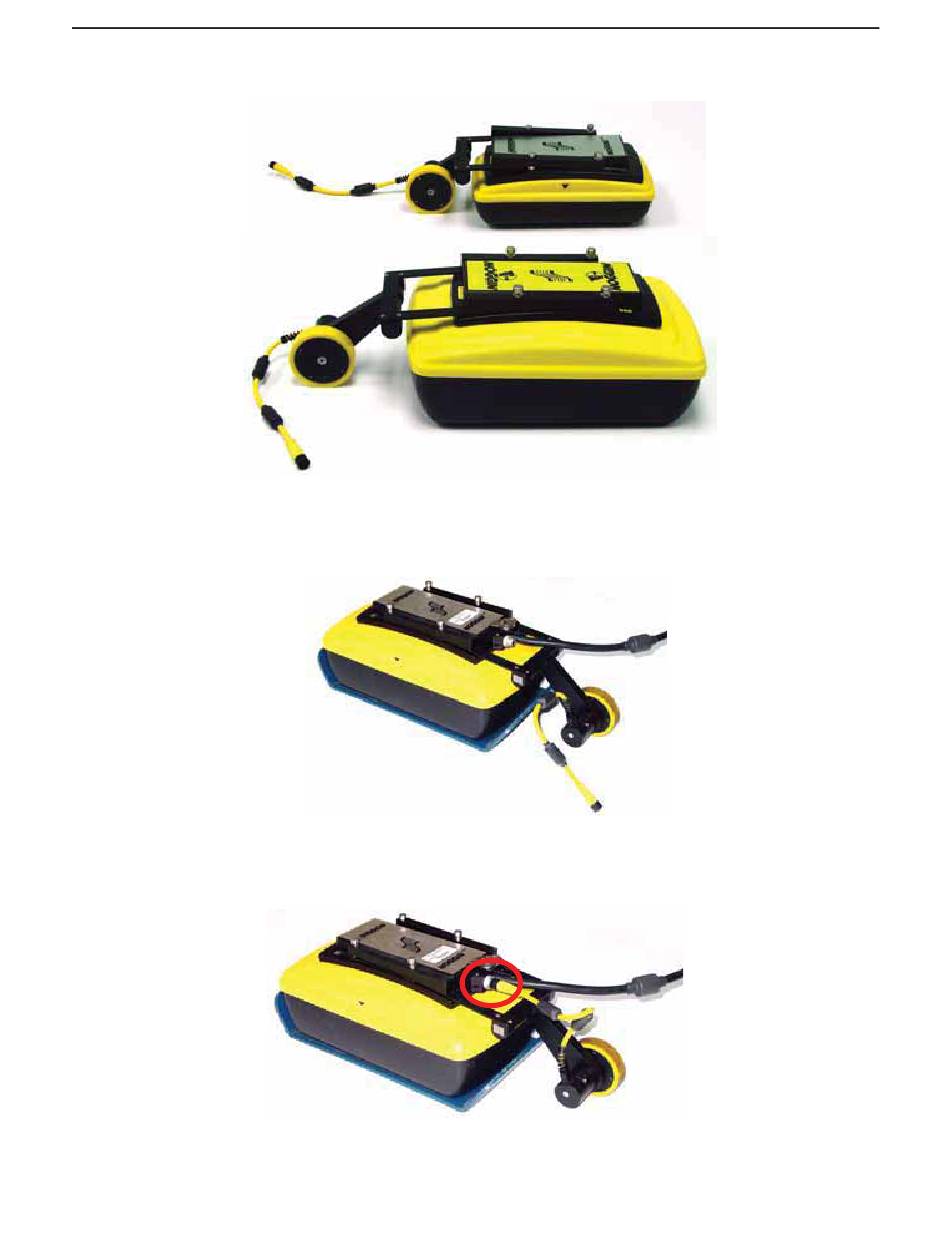

Figure: 7-2 Slide the Noggin odometer bracket over the four, silver mounting posts for both the Noggin
1000 (top) and Noggin 500 (bottom).
Figure: 7-3 Connect the 37 pin connector on the Noggin-to-DVL cable to the 37 socket receptacle on the
Noggin unit by tightening the latch.
Figure: 7-4 On the Noggin-to-DVL cable, note the round receptacle on the back of the connector that
attaches to the Noggin unit. Connect the yellow odometer cable to this round receptacle.
33
