Noggin 8-Rock Noggin Configuration Assembly (Noggin 500 & 1000 only)

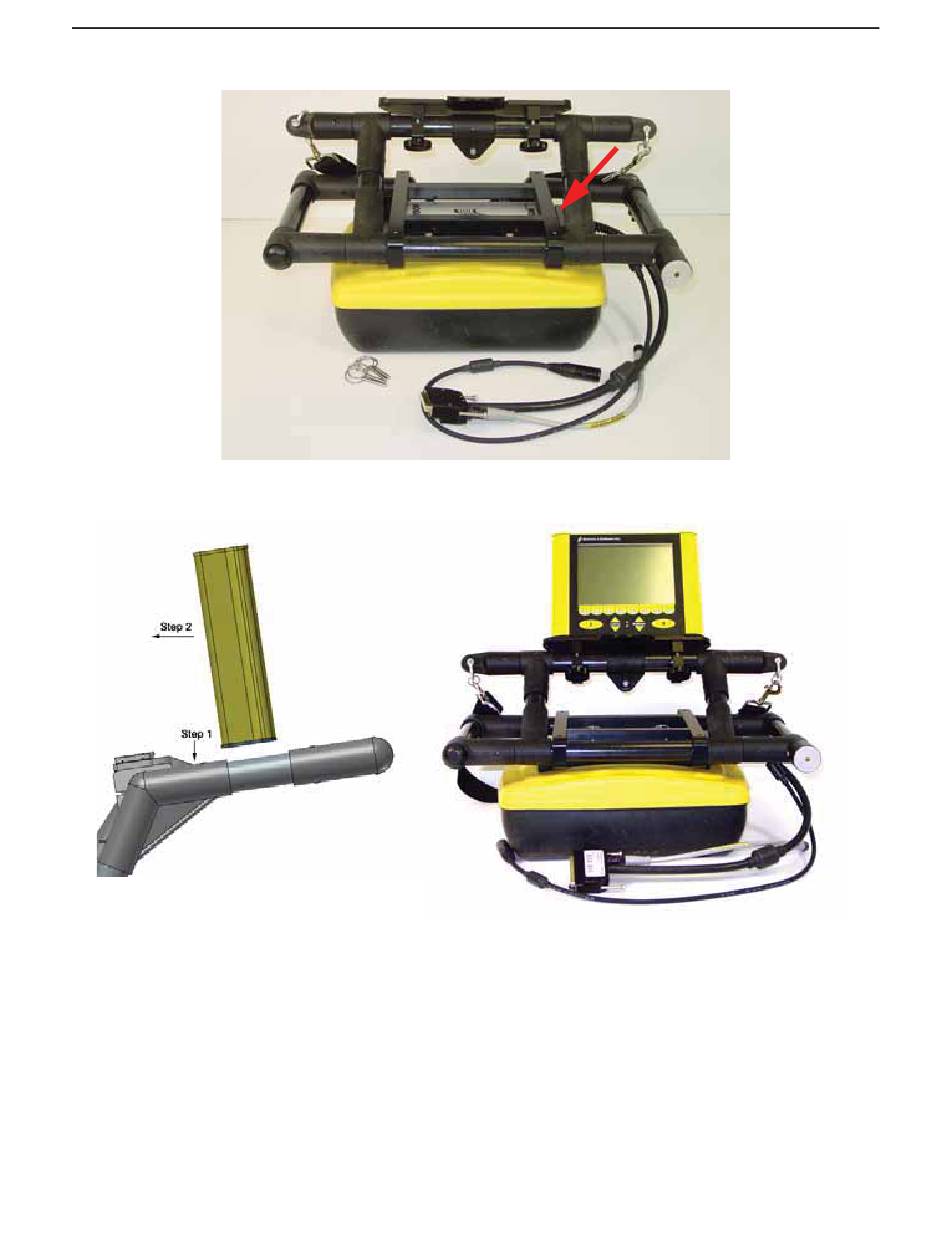

Figure: 8-10 Attach the end of the cable with the 37 pin (male) connection to the Noggin. Use a slotted screwdriver to
tighten the connection.
Figure: 8-11 Attach the Digital Video Logger to the frame. Attaching the digital video logger (DVL). Step 1: Depress
flexible clip. Step 2: Slide DVL onto shelf.
Attach the Digital Video Logger (DVL): The bottom of the Digital Video Logger is designed to
slide onto the support shelf attached to the Rock Noggin frame (see Figure 8-11). Line up the
bottom of the Digital Video Logger with the shelf and slide it back onto the shelf. Push the Digital
Video Logger back far enough so that the flexible clip on the front of the shelf catches and holds
the Digital Video Logger firmly in place. Wiggle the DVL to make sure it is firmly snapped in
before letting go of the unit. (To remove the Digital Video Logger from the Rock Noggin frame,
this clip must be flexed downward as the DVL is slid forward off of the shelf.
The two hand-screws on the bottom of the DVL shelf can be loosened to allow the DVL to be
rotated to a different position on the Rock Noggin frame.
