Image Settings Screen; Scan - Sensors & Software Noggin 100 User Manual

Noggin 12-Locate & Mark Mode

12.4 Image Settings Screen

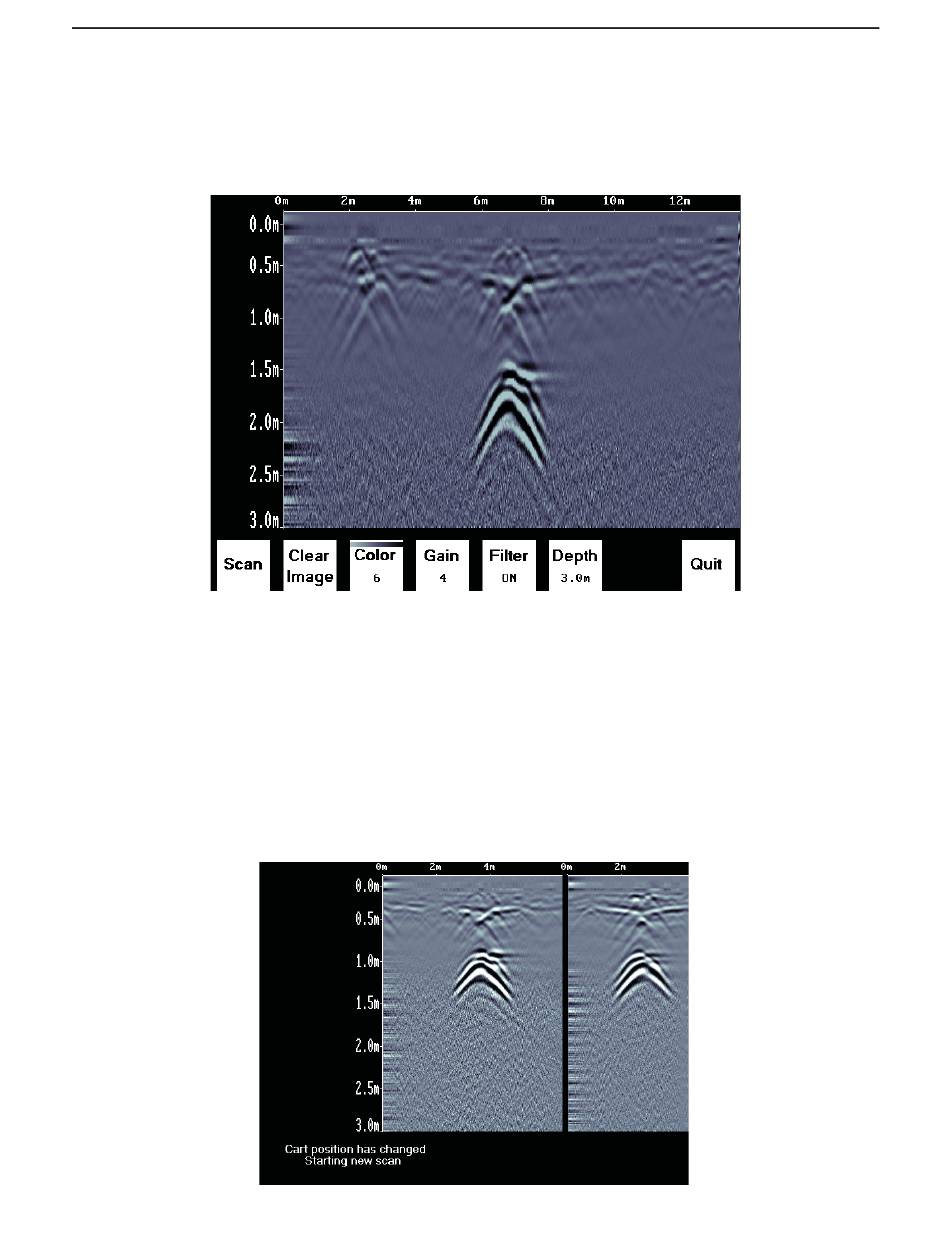

The Image Settings Screen is accessed by pressing the A (Pause) button while in the Scanning
Screen or the Locating Screen. Menu options appear along the bottom of the screen:

12.4.1 Scan

To exit from the Image Settings Screen and resume Scanning, press the Scan button or the A
(Pause) button again. The Scanning Screen returns at the current location with the position
information preserved.
If, while paused in the Image Settings Screen, the GPR system has moved more than a few
centimeters, when scanning is restarted, a gap called a "Position Break" will appear in the image.
The position break is also indicated by a message on the bottom of the screen and the Position
Axis along the top of the data image resetting to zero.
