4/ System specifications

4.1. Component Main Data

The table below summarizes the features of the pITX-iMX8M embedded motherboard.

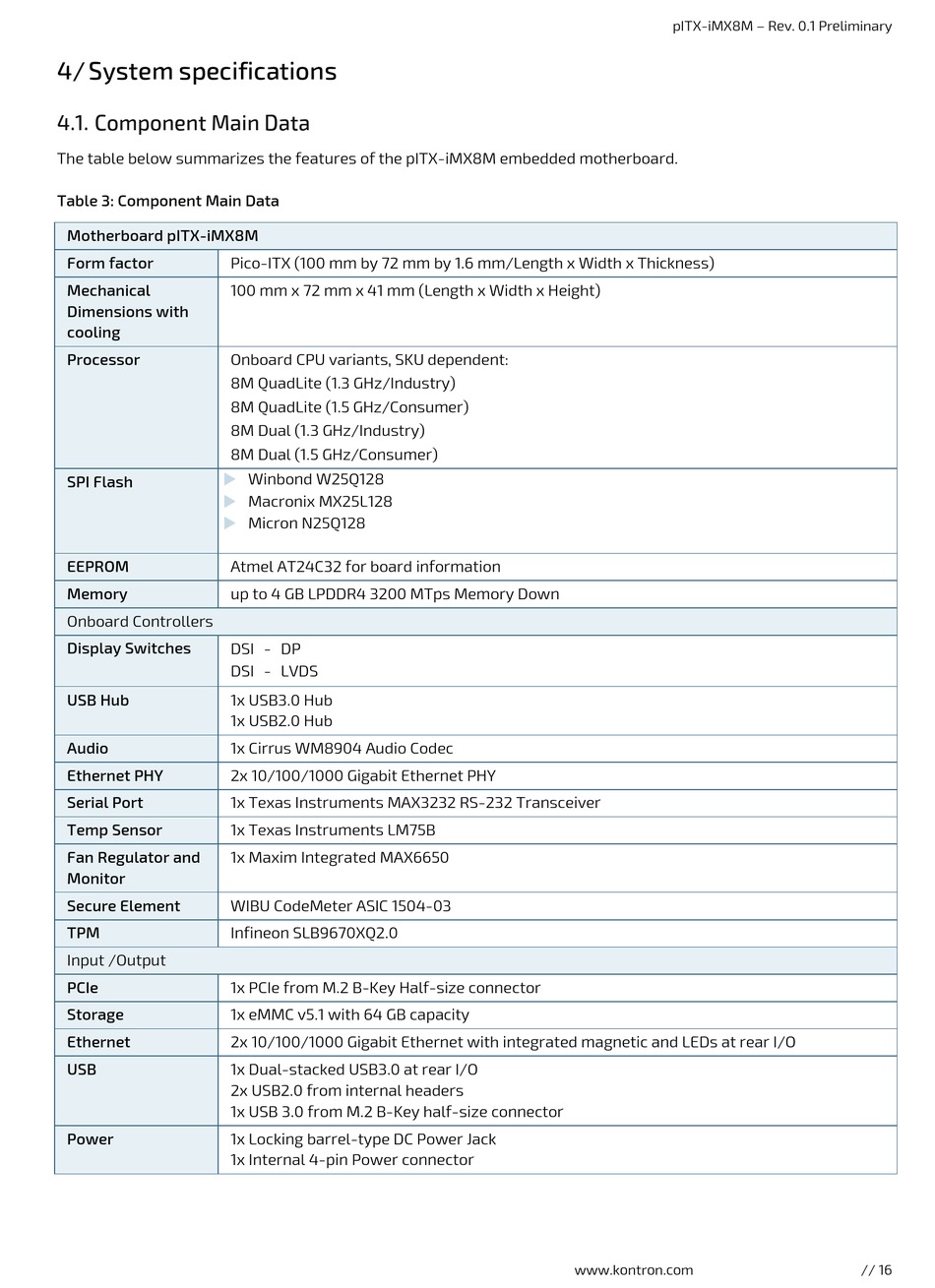

Table 3: Component Main Data

Motherboard pITX-iMX8M
Form factor Pico-ITX (100 mm by 72 mm by 1.6 mm/Length x Width x Thickness)
Mechanical 100 mm x 72 mm x 41 mm (Length x Width x Height)
Dimensions with
cooling
Processor Onboard CPU variants, SKU dependent:
8M QuadLite (1.3 GHz/Industry)
8M QuadLite (1.5 GHz/Consumer)
8M Dual (1.3 GHz/Industry)
8M Dual (1.5 GHz/Consumer)

SPI Flash


EEPROM Atmel AT24C32 for board information
Memory up to 4 GB LPDDR4 3200 MTps Memory Down
Onboard Controllers
Display Switches
DSI - DP
DSI - LVDS
USB Hub 1x USB3.0 Hub
1x USB2.0 Hub
Audio
1x Cirrus WM8904 Audio Codec
Ethernet PHY 2x 10/100/1000 Gigabit Ethernet PHY
Serial Port 1x Texas Instruments MAX3232 RS-232 Transceiver
Temp Sensor 1x Texas Instruments LM75B
Fan Regulator and 1x Maxim Integrated MAX6650
Monitor
Secure Element
WIBU CodeMeter ASIC 1504-03
TPM Infineon SLB9670XQ2.0
Input /Output
PCIe 1x PCIe from M.2 B-Key Half-size connector
Storage 1x eMMC v5.1 with 64 GB capacity
Ethernet 2x 10/100/1000 Gigabit Ethernet with integrated magnetic and LEDs at rear I/O
USB 1x Dual-stacked USB3.0 at rear I/O
2x USB2.0 from internal headers
1x USB 3.0 from M.2 B-Key half-size connector
Power 1x Locking barrel-type DC Power Jack
1x Internal 4-pin Power connector
Winbond W25Q128
Macronix MX25L128
Micron N25Q128
