6.3. MicroSD and MicroSIM (J12)

The pITX-iMX8M board supports micro SD cards via micro SD/micro SIM combo connector.

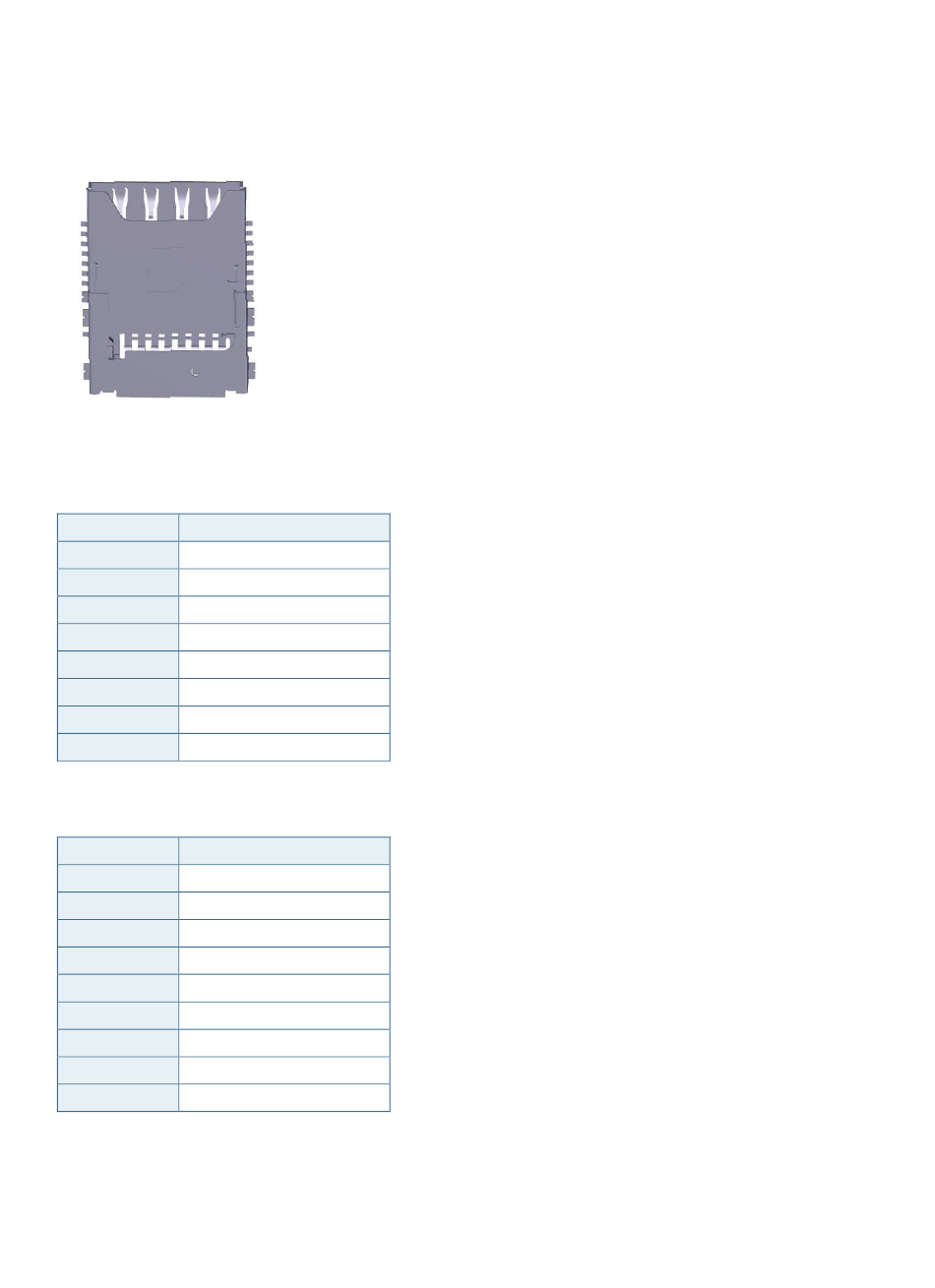

Figure 7: Combo Connector for MicroSD and MicroSIM

Table 7: Pin Assignment MicroSIM

Pin Type
1 V_VCC
2 RST
3
CLK_S3
4 RSVD_S4
5 GND_S5
6 V_VPP
7 I/O
8 RSVD_S8

Table 8: Pin Assignment MicroSD

Pin Type
1 DAT2
2 CD/DAT3
3 CMD
4 V_VDD
5 CLK_T5
6 VSS/GND
7 DAT0
8
DAT8
SW
CARD_DETECT
