Usb Internal (J2, J3); Gpio Connector (Internal, J17); Table 17: Usb Internal Connection; Table 18: Gpio Connector - Kontron pITX-iMX8M User Manual

6.10. USB internal (J2, J3)

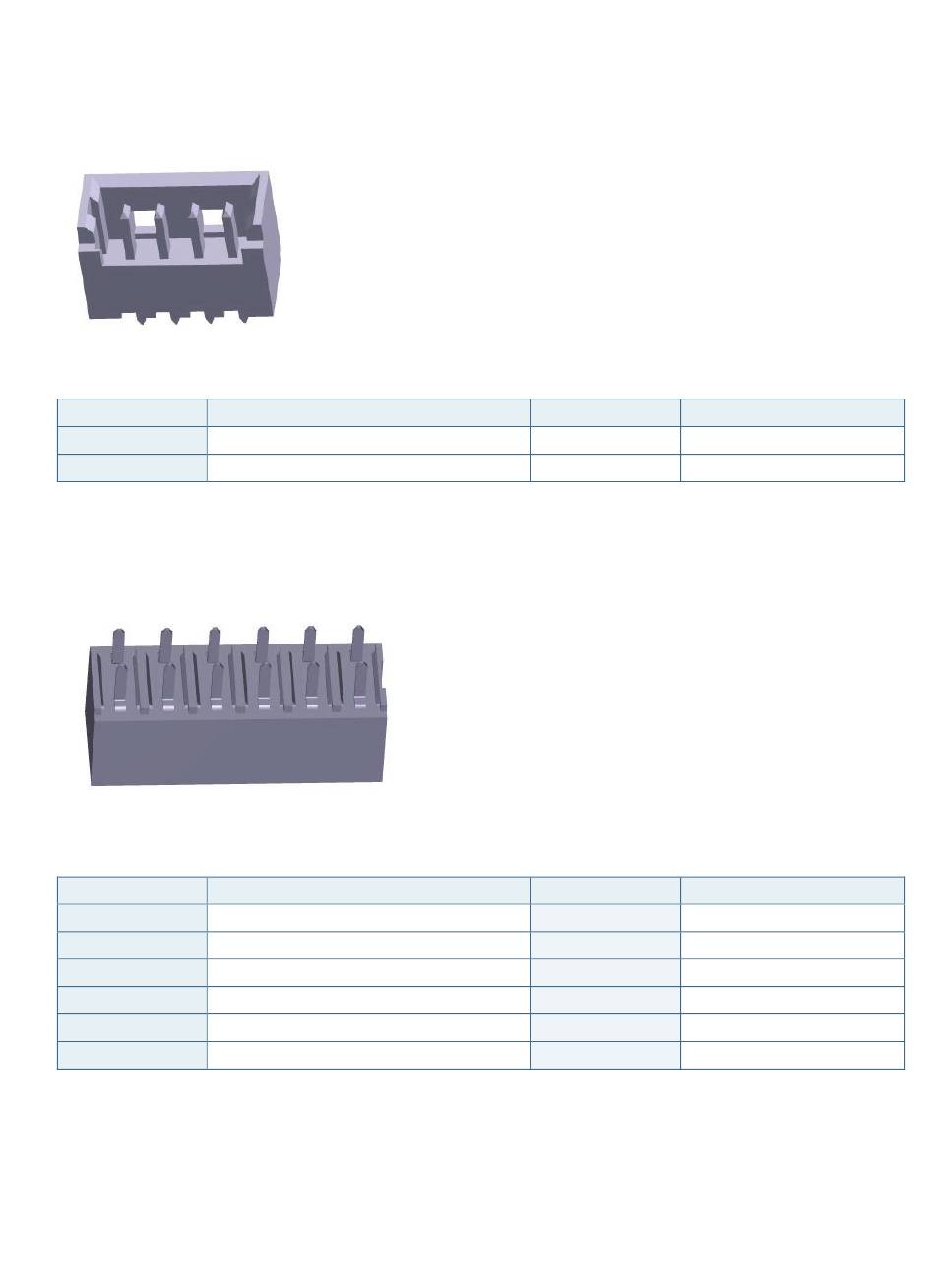

Figure 16: USB Internal Connector

1

Table 17: USB Internal Connection

Pin Description
1 GND
3 USB_Pn-

6.11. GPIO Connector (internal, J17)

Figure 17: GPIO Connector

1

Table 18: GPIO Connector

Pin Description
1 V_3V3_S5
3
FGPIO1
5 FGPIO3
7 FGPIO5
9 FGPIO7
11 GND
pITX-iMX8M – Rev. 0.1 Preliminary
Pin Description
2 USB_Pn+
4 5 V/SB 5 V
Pin Description
2 FGPIO0
4
FGPIO2
6 FGPIO4
8 FGPIO6
10 GND
12 EXT_BAT
