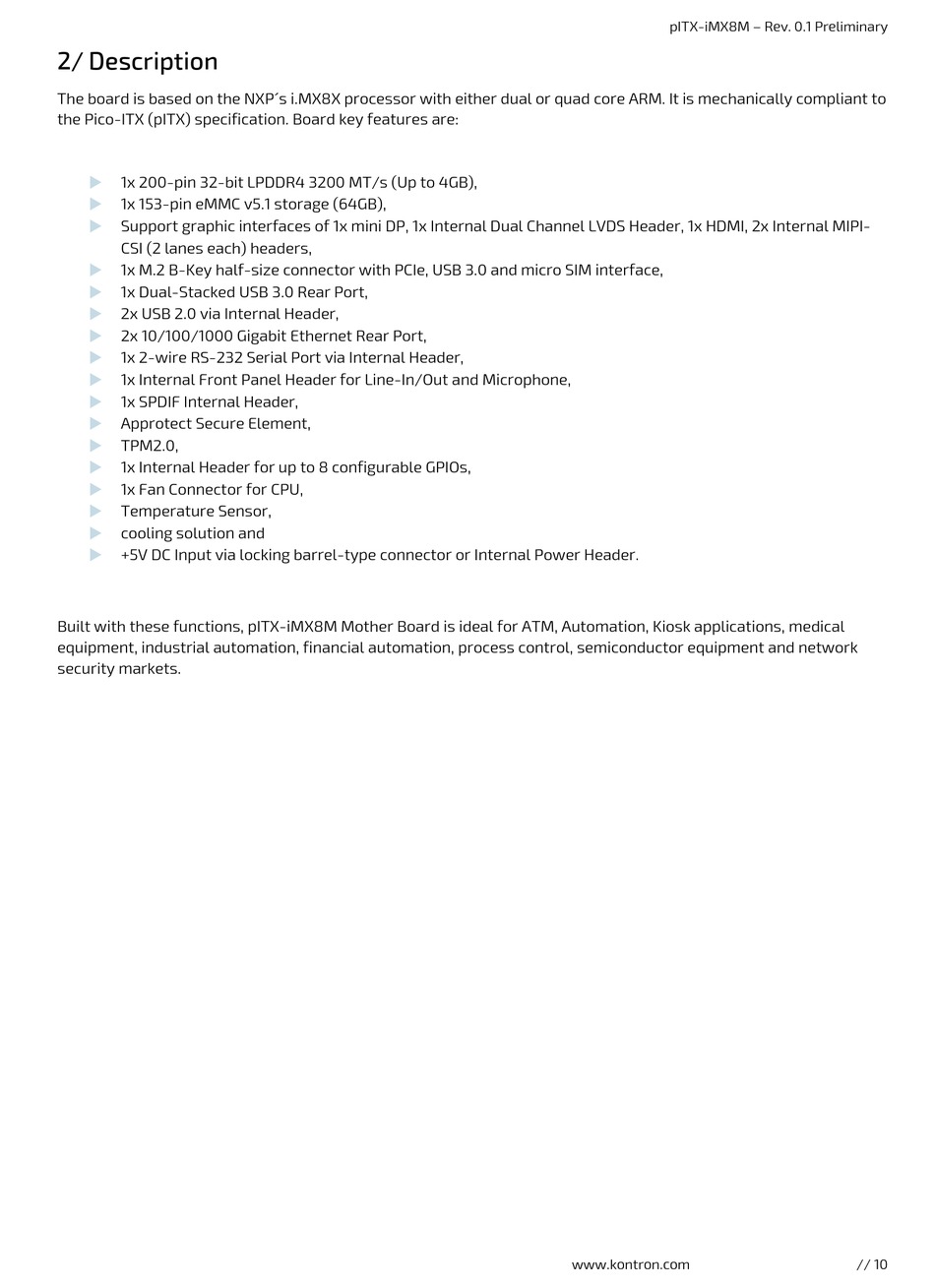

2/ Description

The board is based on the NXP´s i.MX8X processor with either dual or quad core ARM. It is mechanically compliant to
the Pico-ITX (pITX) specification. Board key features are:
 1x 200-pin 32-bit LPDDR4 3200 MT/s (Up to 4GB),
 1x 153-pin eMMC v5.1 storage (64GB),
 Support graphic interfaces of 1x mini DP, 1x Internal Dual Channel LVDS Header, 1x HDMI, 2x Internal MIPI-
CSI (2 lanes each) headers,
 1x M.2 B-Key half-size connector with PCIe, USB 3.0 and micro SIM interface,
 1x Dual-Stacked USB 3.0 Rear Port,
 2x USB 2.0 via Internal Header,
 2x 10/100/1000 Gigabit Ethernet Rear Port,
 1x 2-wire RS-232 Serial Port via Internal Header,
 1x Internal Front Panel Header for Line-In/Out and Microphone,
 1x SPDIF Internal Header,
 Approtect Secure Element,
 TPM2.0,
 1x Internal Header for up to 8 configurable GPIOs,
 1x Fan Connector for CPU,
 Temperature Sensor,
 cooling solution and
 +5V DC Input via locking barrel-type connector or Internal Power Header.
Built with these functions, pITX-iMX8M Mother Board is ideal for ATM, Automation, Kiosk applications, medical
equipment, industrial automation, financial automation, process control, semiconductor equipment and network
security markets.
