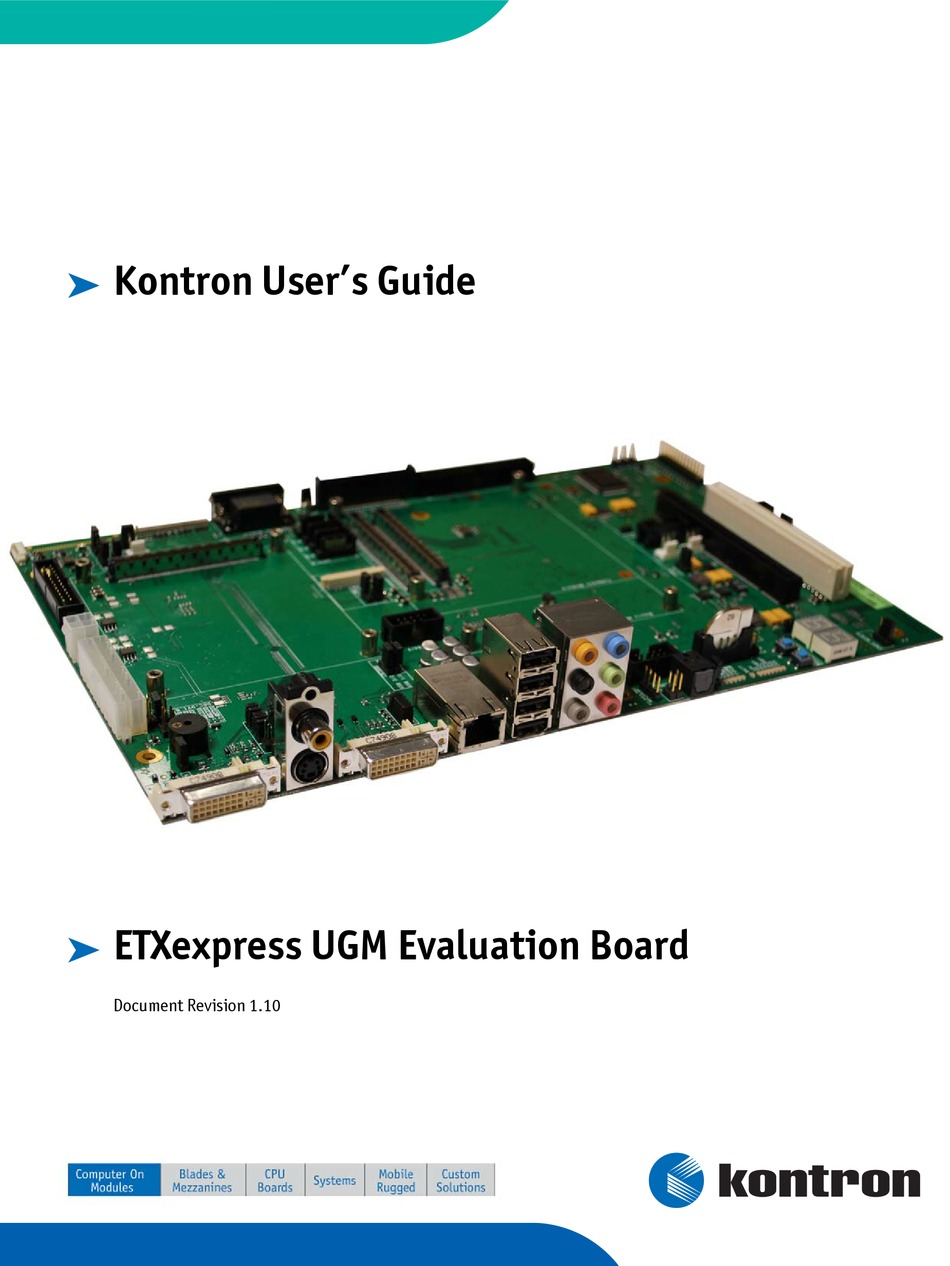

- Page 1 Kontron User’s Guide ® ETXexpress UGM Evaluation Board ® Document Revision 1.10...
- Page 2 This page intentionally left blank...
-
Page 3: Table Of Contents
6.11.2 UGM JILI (J38, J39, J44, J204, J207, J208) ............27 6.11.3 UGM TV-Out (J8, J212, J221, J222, J223, J227, J228) ..........28 6.11.4 UGM FAN (J48, J220) ..................29 6.12 Kontron Feature Connector (J9) ................. 30 6.13 PCI and PCIexpress (J10, J11) ................32 6.14 ... - Page 4 Appendix A - Power Distribution ................. 46 11.2 Appendix B - 5V option for FAN2 ................. 47 11.3 Appendix C - Assembly Instructions to single supply without ATX ......48 12 Document History ...................... 49 Kontron User's Guide ETXexpress UGM Evaluation Board...
-
Page 5: User Information
“as-is” and is subject to change without notice. For the circuits, descriptions and tables indicated, Kontron assumes no responsibility as far as patents or other rights of third parties are concerned. -
Page 6: Technical Support
Kontron Embedded Modules GmbH will not be responsible for any defects or damages to other products not supplied by Kontron Embedded Modules GmbH that are caused by a faulty Kontron Embedded Modules GmbH product. -
Page 7: Specifications
2 Specifications Specifications Mechanical Specifications Kontron User's Guide ETXexpress UGM Evaluation Board... - Page 8 2 Specifications The ETXexpress UGM Evaluation Board is 305mm x 190mm in size and the overall height is 42,5mm. Kontron User's Guide ETXexpress UGM Evaluation Board...
-
Page 9: Environmental Specifications
The maximum operating temperature is the maximum measurable temperature on any spot on a baseboards’ surface. You must maintain the temperature according to the above specification. 2.2.2 Humidity Operating: 10% to 90% (non condensing) ® Non operating: 5% to 95% (non condensing) ® Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 10: Short Description

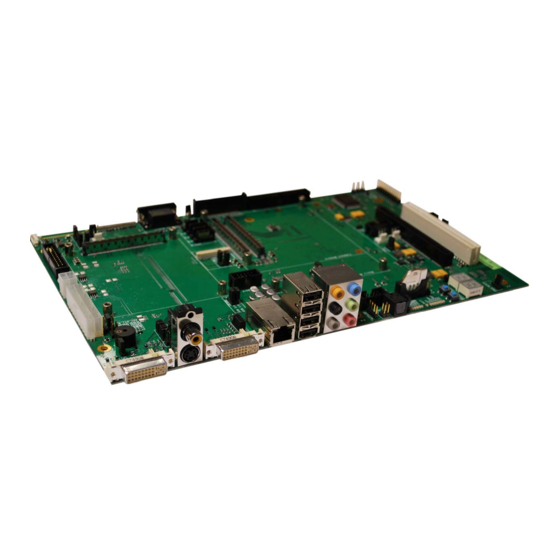

3 Short description Short description The Kontron ETXexpress UGM Evaluation Board is a COM Express baseboard compatible to COM Express Type 2 modules in basic, compact and extended module size with additional universal graphics module UGM support. The baseboard size and mounting holes conforms to ATX standard size 12"x7.5". -
Page 11: Block Diagram
4 Block Diagram Block Diagram Kontron User's Guide ETXexpress UGM Evaluation Board... - Page 12 4 Block Diagram 4 Block Diagram Kontron User's Guide ETXexpress UGM Kontron User's Guide ETXexpress UGM Evaluation Board Evaluation Board...
-
Page 13: Connector Locations
5 Connector locations Connector locations Kontron User's Guide ETXexpress UGM Evaluation Board... - Page 14 5 Connector locations Kontron User's Guide ETXexpress UGM Evaluation Board...
- Page 15 Express Card Slot (bottom side) J241 GND Pins ATX 20pin Main Power J242 100MBit / 1GBit Ethernet Switch ATX_12V 4pin Power Reset Button CPLD JTAG (for internal use only) Bower Button Backup BIOS (bottom side) Kontron User's Guide ETXexpress UGM Evaluation Board...
-
Page 16: Connector And Feature Description
Module directly without using a PEG Riser Card. For more details and UGM pin out descriptions refer to UGM product manuals on Kontron webpage. When using a Type 1 COMexpress module like Kontron nanoETXexpress, be sure to connect the module via extender on COMexpress Row A/B, otherwise your module and baseboard could be damaged. -
Page 17: Atx Power Connector (J58, J59)
The 12V power connector mainly supplies power to the module. If the ATX_12V power connector is not connected, the system will not start. 20 pin ATX Power 4 pin ATX_12V +3.3VDC +3.3VDC +3.3VDC -12VDC +12VDC +5VDC PS_ON +12VDC +5VDC PWR_OK -5VDC +5VSB +5VDC +12VDC +5VDC Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 18: Power, Reset & Ps_On Override (Sw1, Sw2, J61, J62, J26, J230-J232)
The Suspend configuration jumper J230, J231 and J232 controls the PS_ON signal from ATX Power Supply. Please use default jumper J232 to enable S3 cold. J230 and J231 are for internal use only. Note: Blue Jumpers and bold marked text shows Kontron default settings Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 19: Status Led (J70), Hdd Led (J17) & Post Code Display (D136/D137)
LED. D136 (Port80 MSB) and D137 (Port80 LSB) shows the actual POST Codes if the module BIOS is configured to send POST Code cycles to the LPC Bus. Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 20: Sata (J3, J5, J33, J34)
SATA Connector Pin out Connector Configuration Signal Connector SATA Port SATA3 SATA2 SATA0 SATA1 Refer to the COMexpress module manual how to enable and configure SATA. For connecting optical drives it's recommended to use SATA0 (J3). Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 21: Ide And Compact Flash (J4, J14, J15)
5V VCC Key Pin #DMARQ #IOW n.c. n.c. #IOR n.c. IORDY CSEL #DMACK INTRQ #CS3 n.c. #IOR #PDIAG #IOW INTRQ #CS1 5V VCC #CS3 #CSEL #ACT/#DASP n.c. #RESET IORDY #DMARQ #DMACK #DASP #PDIAG Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 22: Usb (J16, J65, J236, J237)
USB (J16, J65, J236, J237) COM Express defines a maximum of 8 USB Ports. On ETXexpress UGM Baseboard 4 USB Ports (USB0- USB3) are provided via rear panel connector (J16) and two (USB4 & USB6) ports via onboard pin header (J65). -
Page 23: Ethernet (J19, J242)
J242 (default). For modules with only 10/100MBit connection (e.g. microETXexpress) open all Jumpers. J19 Ethernet LED function State Function Green Link1000 1 (left) Yellow Link100 Link10 Link 2 (right) Blinking Activity Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 24: High Definition Audio (J43, J46, J51, J71, J72, J219)
6 Connector and feature description High Definition Audio (J43, J46, J51, J71, J72, J219) The ETXexpress UGM Baseboard is equipped with a Realtek ALC888 High Definition Audio Codec which supports up to 7.1-channel speaker configuration, optical and digital S/PDIF out, S/PDIF in and digital microphone input. -
Page 25: Etxexpress Graphics - Vga & Lvds1 (J45, J47, J55, J205)
+5V (+3,3V) LCDDO8 LCDDO9 ID3 (DDC_CLK) BLON# JILI_DAT LCDDO10 +12V (+5V) LCDDO11 JILI_CLK +12V (+5V) +12V (+5V) LCDDO12 For a detailed description of LVDS JILI interface refer to the JILI documentation on Kontron’s webpage. Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 26: Ugm - Universal Graphics Module
6 Connector and feature description 6.11 UGM - Universal Graphics Module The Kontron ETXexpress UGM Baseboard is the first evaluation baseboard using an Universal Graphics Module directly on the backplane without a riser card and providing all UGM interfaces and functions. Note: UGM is based on PCIexpress Graphics. -
Page 27: Ugm Jili (J38, J39, J44, J204, J207, J208)
LVDS_F_B0- n.c. LVDS_DDC_DAT_F n.c. LVDS_F_B0+ n.c. JILI30 VCC JILI30 VCC JILI30 VCC JILI30 VCC LVDS_F_B1- n.c. JILI30 VCC JILI30 VCC Warning: Check necessary panel and backlight power for your display before connecting! Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 28: Ugm Tv-Out (J8, J212, J221, J222, J223, J227, J228)
6 Connector and feature description 6.11.3 UGM TV-Out (J8, J212, J221, J222, J223, J227, J228) The ETXexpress UGM Baseboard provides three possible TV-Out connections. Composite Video (Yellow Cinch) and S-Video out are available on rear panel connector J212. Component TV-Out is available via pin header J8. -
Page 29: Ugm Fan (J48, J220)
The UGM FAN J220 can be configured to run in +12V or +5V (default) mode with Jumper J48. UGM FAN Voltage Selector J48 Fan Connector J49, J50 Jumper UGM FAN Voltage UGM FAN +12V Sense +12V / +5V Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 30: Kontron Feature Connector (J9)
6 Connector and feature description 6.12 Kontron Feature Connector (J9) The Feature Connector J9 is a Kontron standard connection for easy communication with external devices for example SM Bus communication with Kontron M.A.R.S. Smart Battery System. See the detailed description of available functions below:... - Page 31 Power Button Input. This input is used to support the ACPI Power Button function. Ground #ATA_ACT 3.3V-O Low active output signal, which indicates activity on IDE interfaces. #CB_RESET 3.3V-O Low active Reset output from module to carrier board Kontron User's Guide ETXexpress UGM Evaluation Board...
-
Page 32: Pci And Pciexpress (J10, J11)
6.13 PCI and PCIexpress (J10, J11) The ETXexpress UGM Baseboard provides a PCIexpress x16 slot (J11) connected to modules PCIexpress Lanes 0-3. PCIexpress Lanes 4-15 on connector J11 are not connected. The PCI slot J10 is a standard PCI 2.x Slot. Please refer to the modules manual for more details. -
Page 33: Express Card (J57)
® 650mA on 1,5V ® Express Card pin out Signal Signal 3.3VS_1 USB_D- 3.3VS_0 USB_D+ CLKREQ# CPUSB# CPPE# REFCLK- REFCLK+ SMB_CLK SMB_DATA PERN0 1.5V_2 PERP0 1.5V_1 GND_1 WAKE# PETN0 3.3VAUX PETP0 PERST# GND_0 Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 34: Super I/O Controller (J25)
Jumper Address closed open Note: To use the SIO functions like COM, LPT, PS2 and hardware monitoring features a Kontron module with legacy BIOS is necessary to support the onboard Winbond Super I/O. Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 35: Sio Hardware Monitor Hwm (J40, J41, J42, J49, J50, J233)
Super I/O sensors in BIOS Setup or with 3 party tools. Internal SIO Sensors External Temp Sensor Connection Sensor Connected Voltage Connector Function Pin1 Pin2 Temp1 VTIN3 -12V Temp2 VTIN2 +12V +12V Temp3 VTIN1 +3.3V +3.3V VCOREB +2.5V VCOREA Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 36: Sio Parallel And Serial Ports (J6, J66, J67)
#ACK BUSY SLCT PWR_+5V Note: To use the SIO functions like COM, LPT, PS2 and hardware monitoring features a Kontron module with legacy BIOS is necessary to support the onboard Winbond Super I/O. Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 37: Sio Ps/2 Mouse & Keyboard (J234)
The Winbond Super I/O Controller supports a PS/2 Mouse and Keyboard. Use an adapter following the pin out description below if you want to use PS/2. PS/2 Pin out PS/2 PS/2 n.c. n.c. KBLOCK#K KBDAT KBCLK# KBGND MSDAT MSCLK Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 38: Backup Bios (J69, U43)
6 Connector and feature description 6.16 Backup BIOS (J69, U43) The ETXexpress UGM Baseboard provides a backup BIOS chip on the PCB's bottom side. Backup BIOS Disable J69 Active BIOS Closed Backup BIOS Open Module BIOS Updating the baseboard BIOS with booting from the module Open jumper J69 to boot from the module ®... -
Page 39: Lpc Bus (J235)
6 Connector and feature description 6.17 LPC Bus (J235) The ETXexpress UGM Baseboard provides a LPC interface J235 to connect external LPC devices. LPC Pin out LPC J235 LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3 #LPC_Reset LPC_CLK #LPC_FRAME #LPC_DRQ0 PWR_+3V3 Kontron User's Guide ETXexpress UGM... -
Page 40: Internal I/O And Cpld Connectors (J7, J60, J239, J240)
6.18 Internal I/O and CPLD connectors (J7, J60, J239, J240) Current Kontron products are equipped with a CPLD (Complex Programmable Logic Device) for power up sequencing and other functionalities. The ETXexpress UGM Baseboard's CPLD can be accessed by connector J60. Connector J7, J240 (I/O Ports) and J239 (Debug) are reserved for future functions. -
Page 41: Battery Information (Bt3, J238)
The ETXexpress UGM Baseboard includes a standard CR2032 3V RTC battery. To reset the modules RTC power off the module and short pin 1-2 of jumper 238. The reset of the RTC power will not cause a CMOS clear, because the BIOS setting of all Kontron boards are backed up in an onboard EEPROM. - Page 42 English, German, French, Danish, Finish and Spanish language. If the battery of this product however is accessible by the end user, it is in the responsibility of the Kontron customer to give the corresponding safety instructions in the required language(s). Kontron User's Guide ETXexpress UGM...
-
Page 43: Limitations And Installation Hints
DVI Connector-B not tested (current UGM-M72 does not support DVI-B) ® Connecting a DVI and CRT monitor simultaneously to DVI-A is not supported ® (with Y-Adapters from DVI-I to DVI-D+VGA only one monitor is working) Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 44: Single Supply (Without Atx)
Single Supply (without ATX) The ETXexpress UGM Baseboard is able to be supplied by just one voltage. This voltage has to be in the range of 8.5V to 18V. This supply has to be connected at the 4pin ATX_12V power connector J59. -
Page 45: Security Advice
To protect the external power lines to peripheral devices the customer has to take care about: - The wires to the external device have the right diameter to withstand the max. available current - The housing of the external device fulfils the fire protection requirements of IEC/EN 60950. Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 46: Appendix
11 Appendix Appendix 11.1 Appendix A - Power Distribution Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 47: Appendix B - 5V Option For Fan2
Appendix B - 5V option for FAN2 The 12V/5V soldering option for SIO Fan2 is located on bottom site near the express card connector. Remove and mount instead to switch Fan2 from 12V in 5V mode. Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 48: Appendix C - Assembly Instructions To Single Supply Without Atx
11 Appendix 11.3 Appendix C - Assembly Instructions to single supply without ATX See chapter Singly Supply (without ATX) for a detailed description. Kontron User's Guide ETXexpress UGM Evaluation Board... -
Page 49: Document History
12 Document History Document History Rev. Date Edited by Changes 0.10_prelim 08.09.08 Initial Release Added Note for USB 5V SB Supply. Added Restriction s 1.10 12.02.09 Corrected J207/J208 Updated product images to final PCB Kontron User's Guide ETXexpress UGM Evaluation Board...
