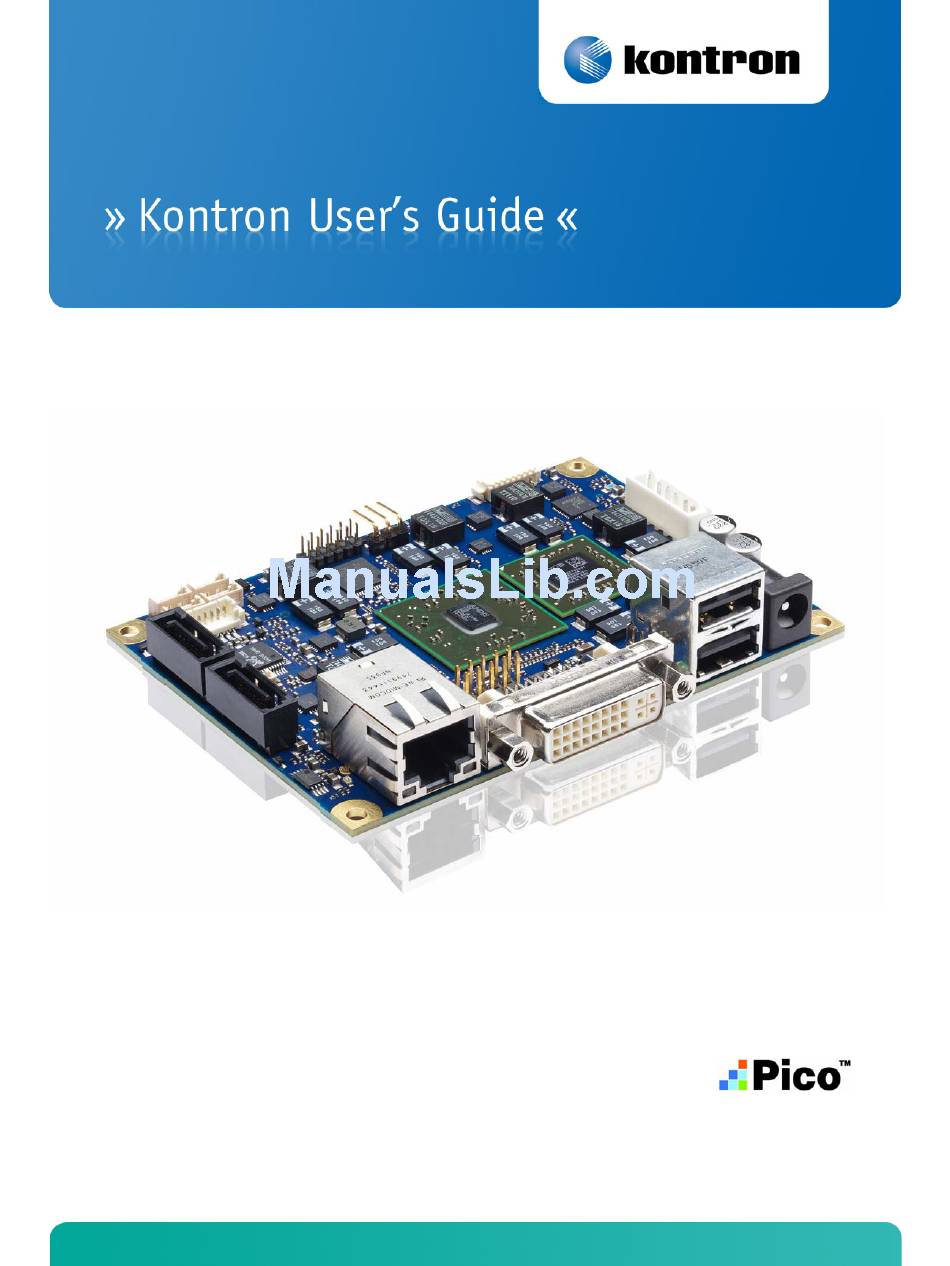

- Page 1 KTA55/pITX KTD-S0031-E...
-
Page 2: Table Of Contents
Available Video Modes ......................15 Extended VESA Modes....................... 15 Backlight Connector......................... 16 6.7.1 External Voltage............................16 6.7.2 Backlight Voltage Jumper ..........................16 6.7.3 Connector ...............................17 Simultaneous Mode........................17 USB Interface..................18 Standard Connector ......................... 18 Extension Connectors....................... 18 Limitations..........................18 KTA55/pITX User's Guide... - Page 3 Connector ...............................33 Setup Guide ..................34 18.1 Determining the BIOS Version ....................34 ® 18.2 Start AMI BIOS Setup Utility ..................... 34 18.3 Menu Bar ..........................36 18.4 Main Menu ..........................36 18.4.1 Board Information Submenu ........................36 KTA55/pITX User's Guide...
- Page 4 Top Side ..............................52 B.1.2 Bottom Side ............................53 B.1.3 Battery Module ............................53 Mechanical Dimensions ......................54 Mating Connectors........................55 Pinout Tables.......................... 56 Appendix C: Reference Documents ............... 58 Appendix D: Certifications.................. 59 Appendix E: Document Revision History ..............63 KTA55/pITX User's Guide...
-
Page 5: User Information
KONTRON Technology A/S will not be responsible for any defects or damages to third party products that are caused by a faulty KONTRON Technology A/S product. -
Page 6: Life Support Policy
Page 2 User Information Life Support Policy KONTRON Technology's products are not for use as critical components in life support devices or systems without express written approval of the general manager of KONTRON Technology A/S. As used herein: Life support devices or systems are devices or systems which... -
Page 7: Introduction

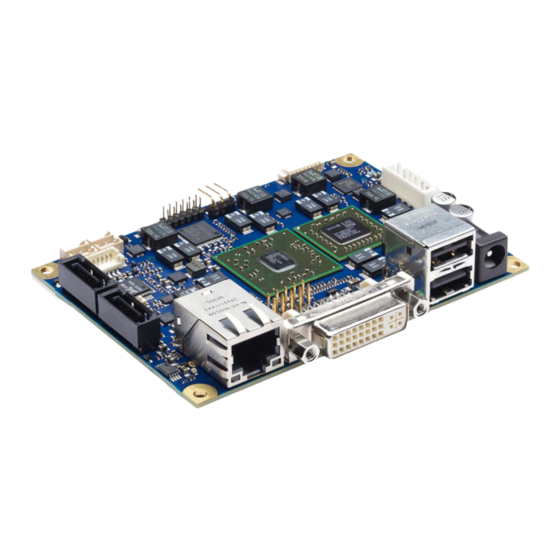

Introduction Introduction pITX Embedded Line Family Each pITX is a member of the 2.5" SBC family of KONTRON Technology A/S based on the Pico-ITX specifi- cation (only mechanical outer dimensions) from the Small Form Factor Special Interest Group (SFF-SIG). pITX embedded line modules are characterized by the same front-line pinouts and interfaces for reset logic and simple power supply, 2 x USB, Gigabit LAN, S-ATA, Audio, GPIOs, DVI and LVDS interface. -
Page 8: Specifications
18/24 bit color depth and resolutions up to 1920x1200 pixel Highly optimized 128 bit 2D accelerator ® 3D accelerator with full DirectX 11, Open CL 1.1 and Open GL 2.1/3.2 support Full hardware acceleration of following video decode standards: H.264, MPEG2, MPEG4 and VC-1 KTA55/pITX User's Guide... - Page 9 ® Gigabit LAN (PCI Express ): Intel 82574L Full duplex operation at 10/100/1000 Mbps Fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab Trusted Platform Module (LPC): Infineon SLB9635TT Chipset LPC bus supports TPM 1.2 devices KTA55/pITX User's Guide...
- Page 10 KTD-S0031-E Page 6 Specifications Watchdog Timer (CPLD) Seven discrete time-out values from 1 second to 10 minutes ® BIOS: AMI , 4 MB Flash BIOS Real-Time Clock (RTC) with CMOS RAM and battery KTA55/pITX User's Guide...
-
Page 11: Block Diagram
S/PDIF Hudson-E1 ® J2200 Audio (FCH) HD Audio Codec J1801 0-5_ Controller Controller ALC888 J2201 J1802 Micro LPC Bus J1804 GPIOs J1803 Controller Controller J1805 J1503 FAN_ J1806 Flash (BIOS) SLB9635 Watchdog J1800 CPLD LPC Bus Connector KTA55/pITX User's Guide... -
Page 12: Mechanical Specifications
3D graphic. The boards were ran with 4 GB DDR3 SDRAM, DVI monitor, USB keyboard & mouse and S-ATA (Solid State Drive, external powered) as boot device (default BIOS settings). Full Load Idle Standby S3 3.15 15.75 1.45 7.25 0.11 0.55 KTA55/pITX User's Guide... -
Page 13: Real-Time Clock Battery
Hävitä käytetty använt batteri enligt fabrikantens instruktion. paristo valmistajan ohjeiden mukaisesti. Environmental Specifications Temperature Operating (with original KONTRON heat-spreader plate and heat-sink): Ambient temperature: 0 to +60°C Non operating: Ambient temperature: -10 to +85°C Note: It is the customer's responsibility to provide sufficient airflow around each of the components to keep them within the allowed temperature range. -
Page 14: Mtbf
MTBF calculation. The RTC battery lifetime has to be considered separately. Battery life depends on both temperature and operating conditions. When the KONTRON unit has external power; the only battery drain is from leakage paths. -
Page 15: Getting Started
KTA55/pITX. Unified Memory Architecture (UMA) manages the sharing of the system memory between graphic controller and processor. Therefore the full memory size is not available for software applications. Attention: KONTRON Technology A/S cannot guarantee the correct functionality of the KTA55/pITX when a module faster then DDR3-1066 is used. -
Page 16: Graphics Interface
To protect the external power lines of peripheral devices make sure that - the wires have the right diameter to withstand the maximum available current. - the enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950. KTA55/pITX User's Guide... -
Page 17: Flat Panel Connector (Jili30)
This connector represents the JILI interface. The implementation of this subsystem complies with the JILI specification of KONTRON Technology A/S. A variety of cables for different display types are available from KONTRON. Please refer to the actual Display Cable Guide on the same product web site. -
Page 18: Connecting A Flat Panel
Check jumper J1203 for correct panel voltage Connect an external power supply for the correct backlight voltage (exception: +5V). Connect the cable to the flat panel connector J1202 on the KTA55/pITX and connect the other end to your display. Connect a DVI monitor to the DVI-I connector. Hint: the default boot display setting in the BIOS Setup is DVI. -
Page 19: Available Video Modes
640 x 480 111h Graphic 640 x 480 113h Graphic 800 x 600 114h Graphic 800 x 600 116h Graphic 1024 x 768 117h Graphic 1024 x 768 119h Graphic 1280 x 1024 11Ah Graphic 1280 x 1024 KTA55/pITX User's Guide... -
Page 20: Backlight Connector
Note: The backlight voltage that is sourced through connector J2901 can be chosen freely. 6.7.1 External Voltage Parameter Min. Typ. Max. Units Input voltage +12.0 +30.0 Continuous input current 6.7.2 Backlight Voltage Jumper (Pos. 1-2 = +5V 2-3 = external voltage). Check the jumper J1201 for the correct backlight voltage KTA55/pITX User's Guide... -
Page 21: Connector
For simultaneous digital and analog connection from the DVI-I connector a Y-cable is needed. It is impor- tant that the DDC lines are routed to the DVI monitor otherwise only the analog CRT output is available. Y-Cable Note: Without the right DDC connection you have no output on the DVI monitor. KTA55/pITX User's Guide... -
Page 22: Usb Interface
The other USB ports are available through the extension connectors J1802/J1803 and J1805/J1806 (4 pins). To have the signals available on the standard USB interface connectors an adapter cable is required. An USB interface cable is available from KONTRON (KAB-USB-2, part number 96054-0000-00-2). Header... -
Page 23: Serial-Ata Interface (S-Ata)
Serial-ATA Interface (S-ATA) Serial-ATA Interface (S-ATA) The KTA55/pITX has realized two S-ATA III ports. Serial-ATA connections boost the transfer rate theoreti- cally up to 600 MB/sec. In addition it changes the parallel interface requiring 40 separate wires to a serial interface requiring only 6 wires. -
Page 24: Lan Controller
LAN Controller LAN Controller ® ® The KTA55/pITX uses an Intel 82574L Gigabit PCI Express LAN controller. The controller support 10/100/ 1000 Base-T interfaces. The device auto-negotiates the use of a 10, 100 or 1000 Mbps connection. Additionally it is possible to enable the LAN PXE Boot in the BIOS Setup to allow the system to boot up via a network connection from a PXE server. -
Page 25: Audio Interface
44.1/48/96 Input signal-to-noise ratio (LINE IN) 10.2 Analog Connector The analog audio interface is available through the connector J2201 (6 pins). A prototype adapter cable (open ended) is deliverable from KONTRON (KAB-SOUND-CMP-2, part number 96063-0000-00-1). Header Signal Name Function LINE_IN_L... -
Page 26: Secure Digital I/O And Multimedia Card
To protect the external power lines of peripheral devices make sure that - the wires have the right diameter to withstand the maximum available current. - the enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950. KTA55/pITX User's Guide... -
Page 27: Digital I/O Interface
KTD-S0031-E Page 23 Digital I/O Interface Digital I/O Interface The KTA55/pITX features eight bidirectional I/O lines. 12.1 Electrical Specifications Digital Inputs Parameter Min. Typ. Max. Units Input LOW voltage +1.5 Input HIGH voltage +1.5 +3.45 Input rate (direct access) Digital Outputs Parameter Min. -
Page 28: Connector Redirection
When the board is shipped the digital I/O pins are routed to a 10 pin Molex connector on the RTC battery module. The digital I/O interface is available through the Molex connector J2 (10 pins). An interface cable (open ended) is deliverable from KONTRON (KAB-GPIO-PROTO-10, part number 62038). Header Signal Name Function Power +3.3V... -
Page 29: Lpc Bus
To protect the external power lines of peripheral devices make sure that - the wires have the right diameter to withstand the maximum available current. - the enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950. KTA55/pITX User's Guide... -
Page 30: Power Supply
KTD-S0031-E Page 26 Power Supply Power Supply The KTA55/pITX SBC has a power input voltage range from +4.75 to +5.25V DC. All other voltages are gene- rated onboard (e.g. +3.3V system and +1.5V memory voltage). 14.1 Connector The power supply is injected through the connector J2900 (3 pins, DC power jacket 2.1mm). -
Page 31: Power Front Panel Header
Power Supply 14.3 Power Front Panel Header The power button and other power signals are available through the pin strip J2401 (10 pins). A button set (two buttons) is deliverable from KONTRON (BUTTON-SET, part number 60905-0000-00-0). Header Signal Name Function... -
Page 32: Battery Connector
To protect the external power lines of peripheral devices make sure that - the wires have the right diameter to withstand the maximum available current. - the enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950. KTA55/pITX User's Guide... - Page 33 KTD-S0031-E Page 29 Power Supply When the board is shipped the RTC battery is mounted on the RTC battery module. KTA55/pITX User's Guide...
-
Page 34: Crisis Management
Put a jumper on pin 3 and 5 (pins side by side) to the Front Panel Header (J2401). Power up the board. The BIOS bootblock starts the recovery process and loads the new BIOS. After the programming the BIOS performs a reset. Before the reset is executed the jumper should be removed. KTA55/pITX User's Guide... -
Page 35: Autostart Function
KTD-S0031-E Page 31 Autostart Function Autostart Function When the KTA55/pITX should start directly when the power is applied (without a power button signal) the autostart jumper J2403 must be set. KTA55/pITX User's Guide... -
Page 36: Power And Thermal Management
The aluminum slugs and thermal pads on the underside of the heat-spreader plate implement thermal interfaces between the heat-spreader plate and the major heat generating components on the KTA55/pITX. The optimum cooling solution varies - depending on the application and environmental conditions. -
Page 37: Fan Interface
To protect the external power lines of peripheral devices make sure that - the wires have the right diameter to withstand the maximum available current. - the enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950. KTA55/pITX User's Guide... -
Page 38: Setup Guide
Selection fields for current menu General Help Window Overlay (center) Help for selected menu Menu Bar The menu bar at the top of the window lists different menus. Use the left/right arrow keys to make a selec- tion. KTA55/pITX User's Guide... - Page 39 General Help Window Pressing <F1> on a menu brings up the general help window that describes the legend keys and their alternates. Press <Esc> to exit the general help window. KTA55/pITX User's Guide...
-
Page 40: Menu Bar
18.4.1 Board Information Submenu Feature Option Description Product Name N / A Show the KONTRON specific product name Serial Number N / A Show the KONTRON specific serial number Manufacturing Date N / A Show the KONTRON specific manufacturing date... -
Page 41: Advanced Menu
Enable or disable the generation of ACPI _PPC, _PSS, and _PCT objects Enabled PSTATE Adjustment PState 0 Provide to adjust startup P-state level PState 1 PPC Adjustment PState 0 Provide to adjust _PPC object. _PPC = number of performance states PState 1 KTA55/pITX User's Guide... -
Page 42: Onboard Device Configuration Submenu
Display the drive size on port 0 and/or port 1 Serial-ATA Controller Disabled Enable or disable the S-ATA controller Enabled Serial-ATA Mode AHCI Configure the S-ATA mode Native IDE Legacy IDE RAID IDE->AHCI RAID Mode RAID 5 Define the RAID mode RAID 0/1 KTA55/pITX User's Guide... -
Page 43: Sdio Configuration Submenu
Enable or disable the onboard PCIe LAN controller Enabled Network Stack Disabled Enable or disable the network stack Enabled Legacy LAN PXE Boot Disabled Enable or disable the option ROM to allow LAN boot functio- nality Enabled KTA55/pITX User's Guide... -
Page 44: Usb Configuration Submenu
USB 2.0 (EHCI) ownership Port 60h/64h Emulation Disabled Emulation support should be enabled for the complete USB keyboard legacy support for non-USB aware OSes Enabled 8 USB Mass Storage Submenu Display the status of USB mass storage devices Device Configuration KTA55/pITX User's Guide... -
Page 45: Usb Mass Storage Device Configuration Submenu
Control the boot display LVDS Digital Display Port 1 Disabled Control the boot display DVI-D DVI-I HDMI LVDS Flat Panel Type Panel 0 ... Panel 15 Select a predefined panel Brightness Level 0 ... 128 ... 255 Backlight brightness KTA55/pITX User's Guide... -
Page 46: Acpi Configuration Submenu
Configuration 18.5.5.1 Cooling Monitor Submenu Feature Option Description CPU Temperature N / A Show the CPU temperature Chipset Temperature N / A Show the chipset/southbridge temperature (Hudson E1) Fan Speed N / A Show the fan speed KTA55/pITX User's Guide... -
Page 47: Active Cooling Configuration Submenu
Temperature Averaging Disabled Enable or disable temperature averaging Enabled Temperature Hysteresis 0°C ... 5°C ... 16°C Define the temperature hysteresis for fan on/off 8 Enhanced Fan Control Submenu Define the temperature and PWM values for fan ramping KTA55/pITX User's Guide... -
Page 48: Enhanced Fan Control Submenu
Show the current status Information TPM Enabled Status N / A Show the TPM 'Enabled' status TPM Active Status N / A Show the TPM 'Active' status TPM Owner Status N / A Show the TPM 'Owner' status KTA55/pITX User's Guide... -
Page 49: Boot Menu
If enabled 'Addon ROMs' can be trapped interrupt 19h (boot IRQ) Enabled 18.8 Security Menu Feature Option Description Administrator Password N / A Press 'Enter' to change the administrator password User Password N / A Press 'Enter' to change the user password KTA55/pITX User's Guide... -
Page 50: Exit Menu
Restore Defaults Restore or load default values for all the setup options Save as User Defaults Save the changes done so far as user defaults Restore User Defaults Restore the user defaults to all the setup options KTA55/pITX User's Guide... -
Page 51: Appendix A: System Resources
PCI IRQ for PCI PCI IRQ for PCI Real Time Clock (RTC) ACPI Power Management PCI IRQ for PCI PCI IRQ for PCI Floating Point Unit (FPU) S-ATA (Legacy IDE) Note (1) Note (1) S-ATA (Legacy IDE) KTA55/pITX User's Guide... - Page 52 ACPI Power Management Floating Point Unit (FPU) S-ATA (Legacy IDE) Note (1) S-ATA (Legacy IDE) Note (1) PCI IRQ for PCI PCI IRQ for PCI PCI IRQ for PCI PCI IRQ for PCI Note: Default mode is 'Native IDE'. KTA55/pITX User's Guide...
-
Page 53: Memory Area
System BIOS I/O Address Map The I/O port addresses of the KTA55/pITX are functionally identical to a standard PC/AT. All addresses not mentioned in this table should be available. We recommend that you do not use I/O addresses below 0100h with additional hardware for compatibility reasons even though they are available. -
Page 54: Pci Devices
® JMicron Card Reader (SD/SDHC) Onboard PCI Express device ® JMicron Card Reader (MS) Onboard PCI Express device ® JMicron Card Reader (XD) Onboard PCI Express device ® ® Intel LAN Controller Onboard PCI Express device KTA55/pITX User's Guide... -
Page 55: System Management Bus
KTD-S0031-E Page 51 Appendix A: System Resources System Management Bus (SMBus The KTA55/pITX uses three onboard System Management Buses (SMBus ). These buses are not available on a peripheral connector and therefore cannot be used for external SMBus devices. SMBus 0... -
Page 56: Appendix B: Connector Layout
KTD-S0031-E Page 52 Appendix B: Connector Layout Appendix B: Connector Layout Connector Locations B.1.1 Top Side KTA55/pITX User's Guide... -
Page 57: Bottom Side
KTD-S0031-E Page 53 Appendix B: Connector Layout B.1.2 Bottom Side B.1.3 Battery Module Digital I/O Battery KTA55/pITX User's Guide... -
Page 58: Mechanical Dimensions
KTD-S0031-E Page 54 Appendix B: Connector Layout Mechanical Dimensions KTA55/pITX User's Guide... -
Page 59: Mating Connectors
(Line in, Line out J2201 (MOLEX 51021-0600 or comp.) and Microphone) 2.5 mm 6 pin external power connector J2901 (Yimtex 510XW1*06STR) 1.25 mm 10 pin for digital I/O interface J2 (Battery Module) (MOLEX 51021-1000 or comp.) KTA55/pITX User's Guide... -
Page 60: Pinout Tables
STX1- TMDS_HPD STX1+ TMDS0- TMDS0+ STX2- STX2+ N.C. STXC- N.C. STXC+ STX3- TMDS_CLK+ STX3+ TMDS_CLK- 25 / C1 26 / C2 GREEN DATAENA 27 / C3 BLUE 28 / C4 HSYNC VCC3/VCC5 29 / C5 VCC3/VCC5 VCC3/VCC5 KTA55/pITX User's Guide... - Page 61 USB1+ BI_D4- S-ATA HD Audio S/PDIF J1500/01 J2201 J2200 LINE_IN_L SPDIF_OUT MIC_IN LINE_IN_R LINE_OUT_L LINE_OUT_R Power Header External Power Battery J2401 J2901 J1400 RST_BTN+ VCC5 VBAT PWR_BTN+ VCC5 RST_BTN- PWR_BTN- RECOVERY VCC5 RSVD PWR_LED- HDD_LED- PWR_LED+ HDD_LED+ KTA55/pITX User's Guide...
-
Page 62: Appendix C: Reference Documents
KTD-S0031-E Page 58 Appendix C: Reference Documents Appendix C: Reference Documents KONTRON Technology A/S can't guarantee the availability of internet addresses. Document Internet Address Advanced Configuration and Power Interface (ACPI) http://www.acpi.info/spec.htm AT Attachment Storage Interface Specification (ATA) http://t13.org Digital Visual Interface (DVI) http://www.ddwg.org... -
Page 63: Appendix D: Certifications
KTD-S0031-E Page 59 Appendix D: Certifications Appendix D: Certifications KTA55/pITX User's Guide... - Page 64 KTD-S0031-E Page 60 Appendix D: Certifications KTA55/pITX User's Guide...
- Page 65 KTD-S0031-E Page 61 Appendix D: Certifications KTA55/pITX User's Guide...
- Page 66 KTD-S0031-E Page 62 Appendix D: Certifications KTA55/pITX User's Guide...
-
Page 67: Appendix E: Document Revision History
Beijing 100070, P.R.China Germany Tel.: + 86 10 63751188 Tel.: +1 888 294 4558 Tel.: +49 (0)8165/ 77 777 Fax: + 86 10 83682438 Fax: +1 858 677 0898 Fax: +49 (0)8165/ 77 219 info@kontron.cn info@us.kontron.com info@kontron.com KTA55/pITX User's Guide...
