6.12. Jumper Internal Boot (J21)

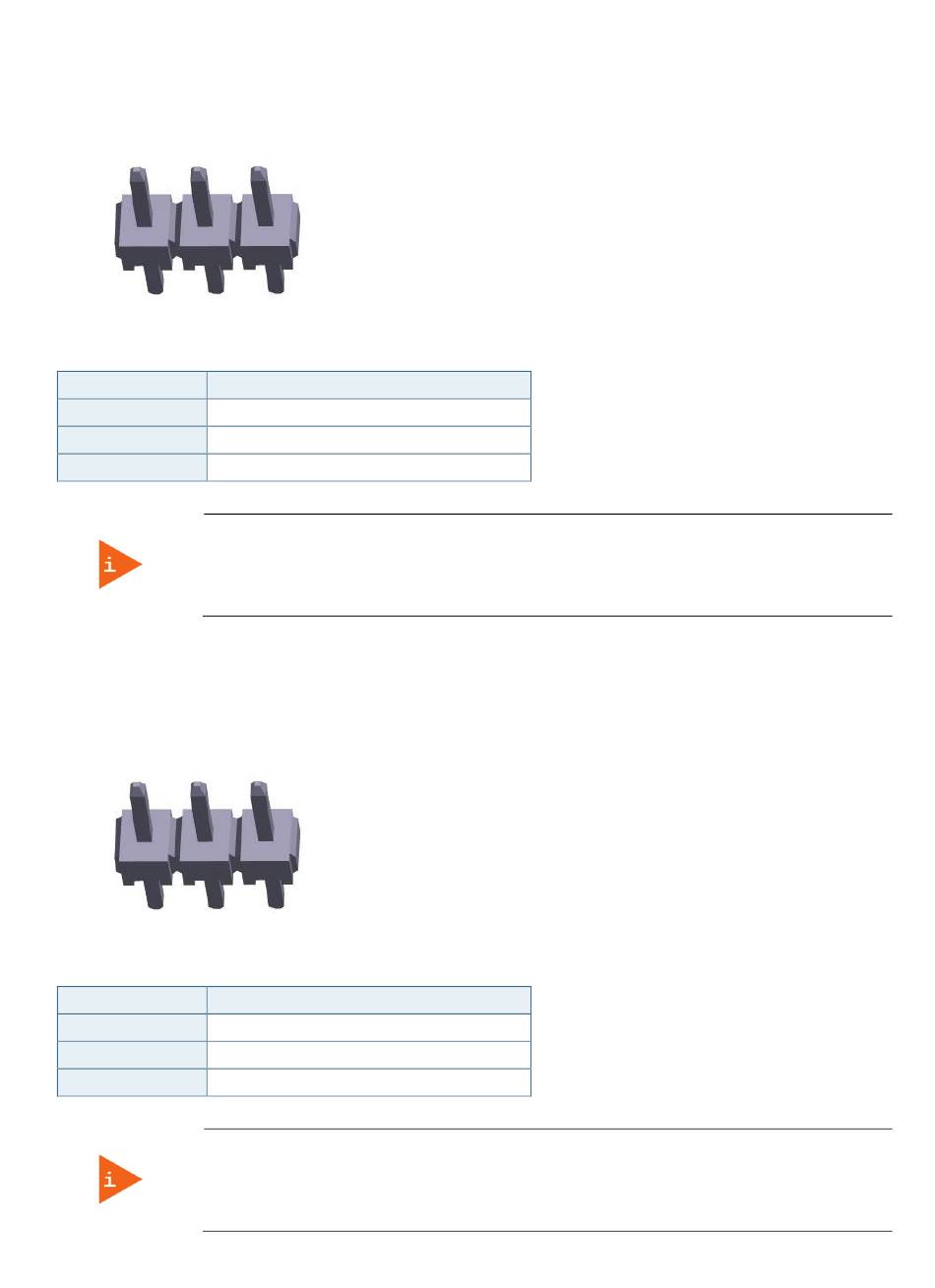

Figure 18: Jumper Internal Boot

Table 19: Jumper Internal Boot

Pin Description
1 SCU_BOOT_MODE0
2 SCU_BOOT_MODE1
3 GND
Function:
Pin 1-2: Internal Boot [Default]
Pin 2-3: Boot From Fuse

6.13. Jumper Autostart/Always ON (J20)

Figure 19: Always ON

Table 20: Always ON Internal Connection

Pin Description
1 NC
2 AUTOSTART#
3 GND
Function:
Pin1-2: Off
Pin2-3: Always ON (Default)
1
1
