UVITEC Cambridge FIREREADER MAX User & Service Manual page 36

D59 darkroom – Epi UV & WL
UV epi-illumination
Select the appropriate wavelength: 254 or 365nm. Switch on the epi-UV lamp by pushing the
corresponding button to the position [I], the control panel diode will light on. After use, switch off the
light by putting the switch to the position [0].
White light epi-illumination
Switch on the white light lamp by switching the white light command to the position [I], the control
panel diode will light on. After use, switch off the light by putting the switch to the position [0].
Transilluminator
Case 1: security on when the door is open
Switch on the door security switch to the "0" position to activate the UV security when the door is
opened. Switch on the transilluminator command. The door is opened and the UV transilluminator is
off.
Case 2: security off when the door is open
Switch off the door security switch to the "1" position to inactivate the UV security when the door is
opened. The security switch's diode will light on. Switch on the transilluminator command. The door is
opened and the UV transilluminator is on.
UVITEC – Cambridge
36/225

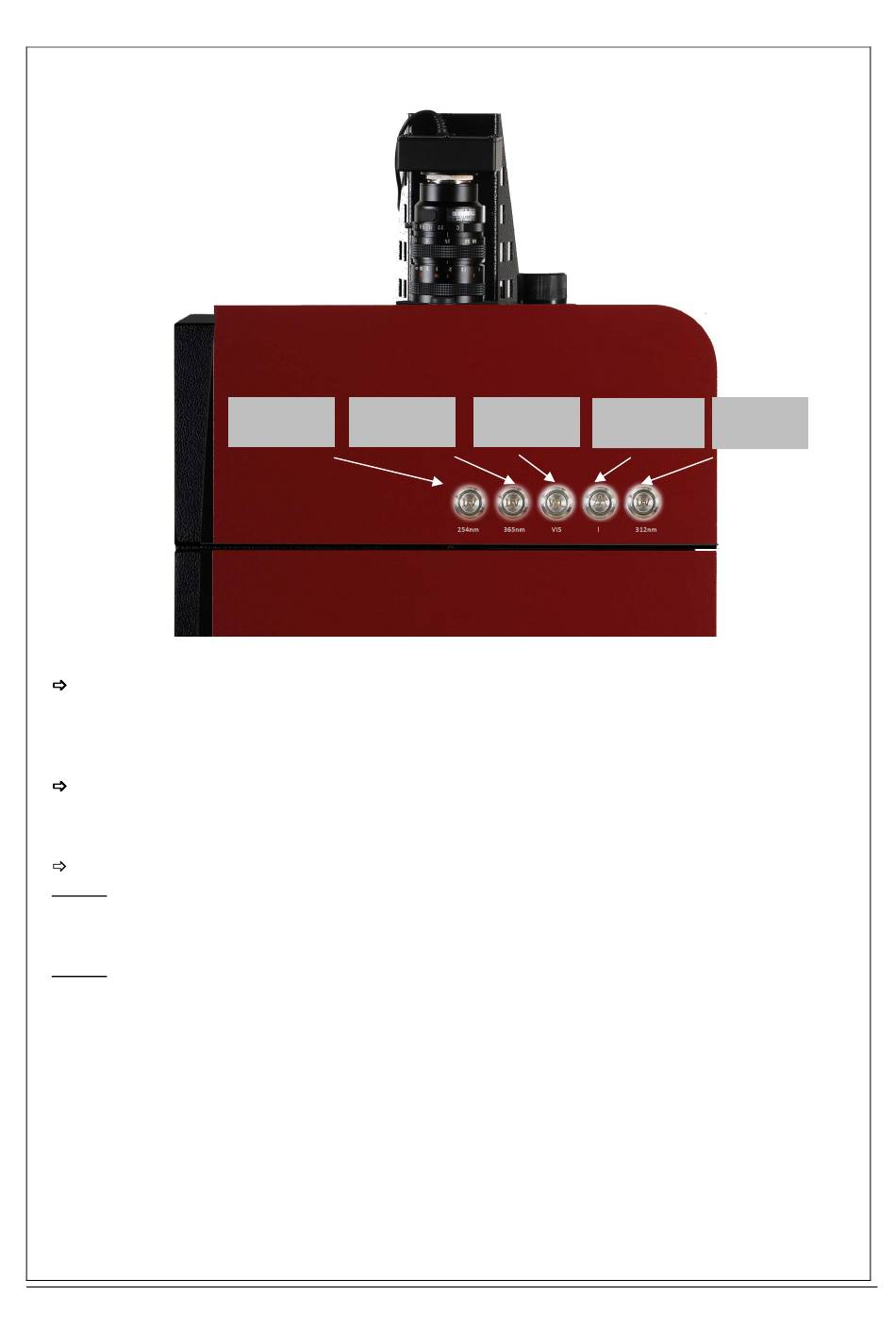

Epi 254nm Epi 365nm
switch switch
Visible white
Door security
light switch
switch
UV table
switch
