Inverse or display pseudo color

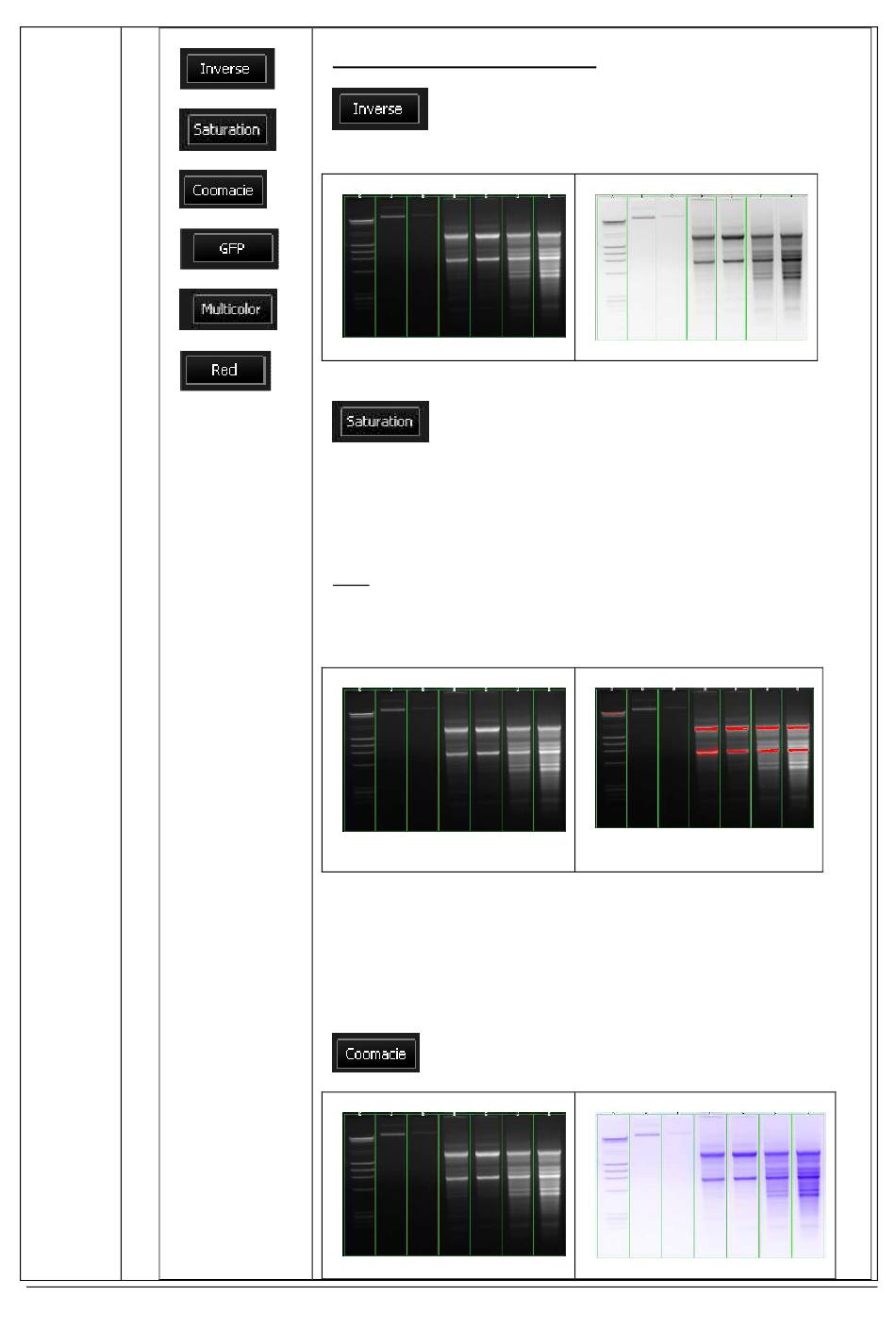

Click on the "Inverse" icon to inverse the grey level of
the image. This makes a negative image
Before
A saturated image is inappropriate for image
quantification with image analysis software. The saturation option
allows you to visualise in red, pixels that have the maximum grey
level (4095 for a 12-bit image or 16 383 for a 14-bit image or 65536
for a 16-bit image) in order to avoid to flatten the peaks. Select the
saturation option and the saturated pixels are displayed in red:
Note: A saturated image creates quantification error when studied
by image analysis software. Gel-doc systems have to indicate to the
user if the image is saturated and if it is then necessary to modify
the integration time.
Saturated pixels are not
displayed
The pseudo colors can display different types or levels of
fluorescence in an image. It replaces the original grey levels of the
image by another palette color. The 1D software has several
predefined palette designs. Select your palette design from the
followings:
Original image
After
Saturated pixels are
displayed in red
Coomassie painted image
