to have as a reference:
L
ANE OF REFERENCE
The lane of reference defines the lane of the known concentration.
Select the lane of reference from the list:
If a single lane is selected, only the volumes of this reference lane will be used to
calculate the relationship between the volume and the quantity. The other concentrations
are calculated based on the concentration/volume relationship of this specific lane.
If "All lanes" is selected, for each lane a new relationship between volume and quantity
will be recalculated, according to the band's lane selected. For instance, the defined
parameters are 100% for all band all lanes; the results table could be as follows. Lane by
lane, the total band concentration is 100%:
S (
POT
The quantity of reference could correspond to one or several spots of the selected lane.
Select one or several spots of the lane of reference from the list:
UVITEC – Cambridge
142/225

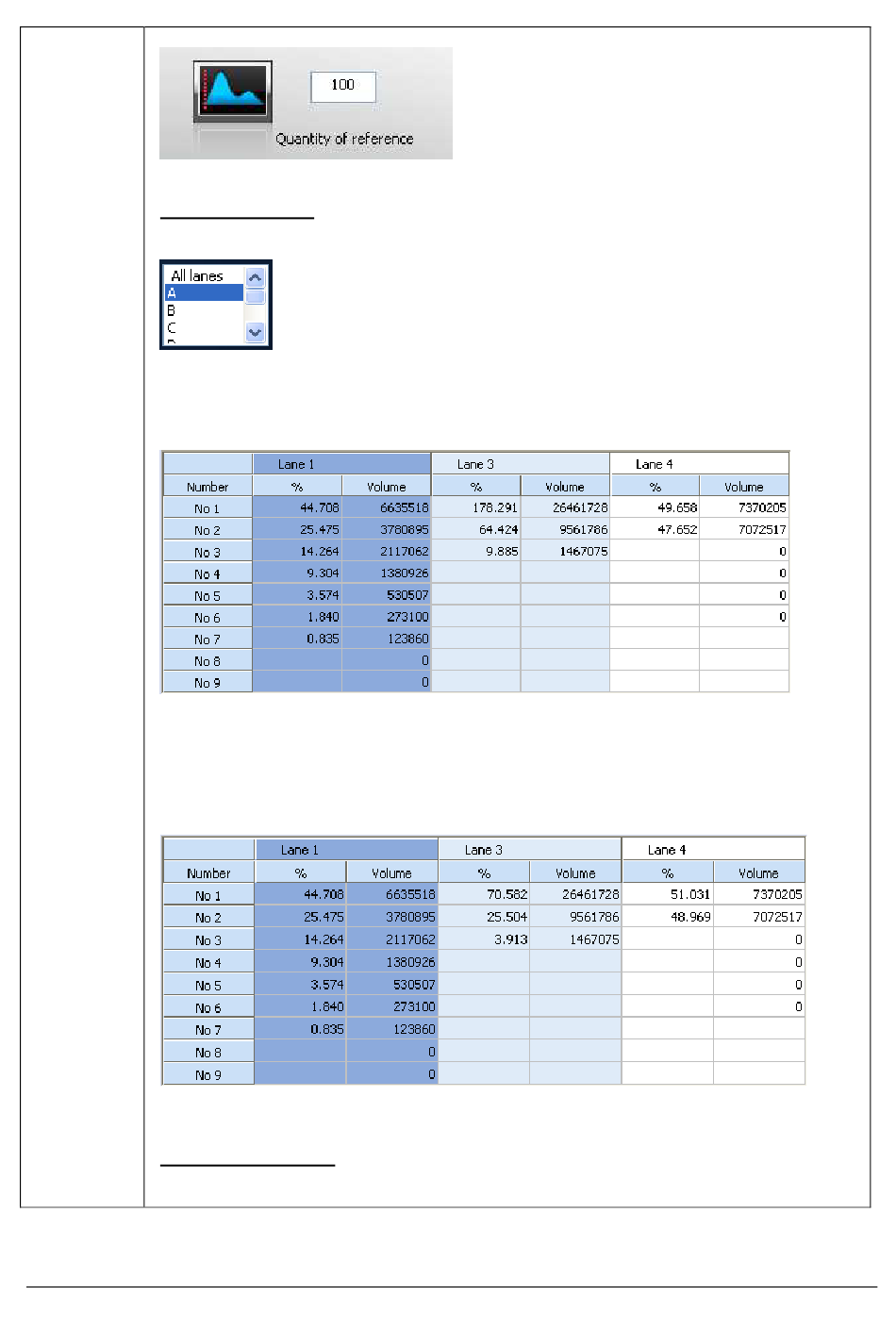

Illustration 1: 100% / lane 1 / all bands. Total concentration lane 1= 100%
Illustration 2: 100% / all lanes / all bands. Total concentration all lanes= 100%
)
S OF REFERENCE
