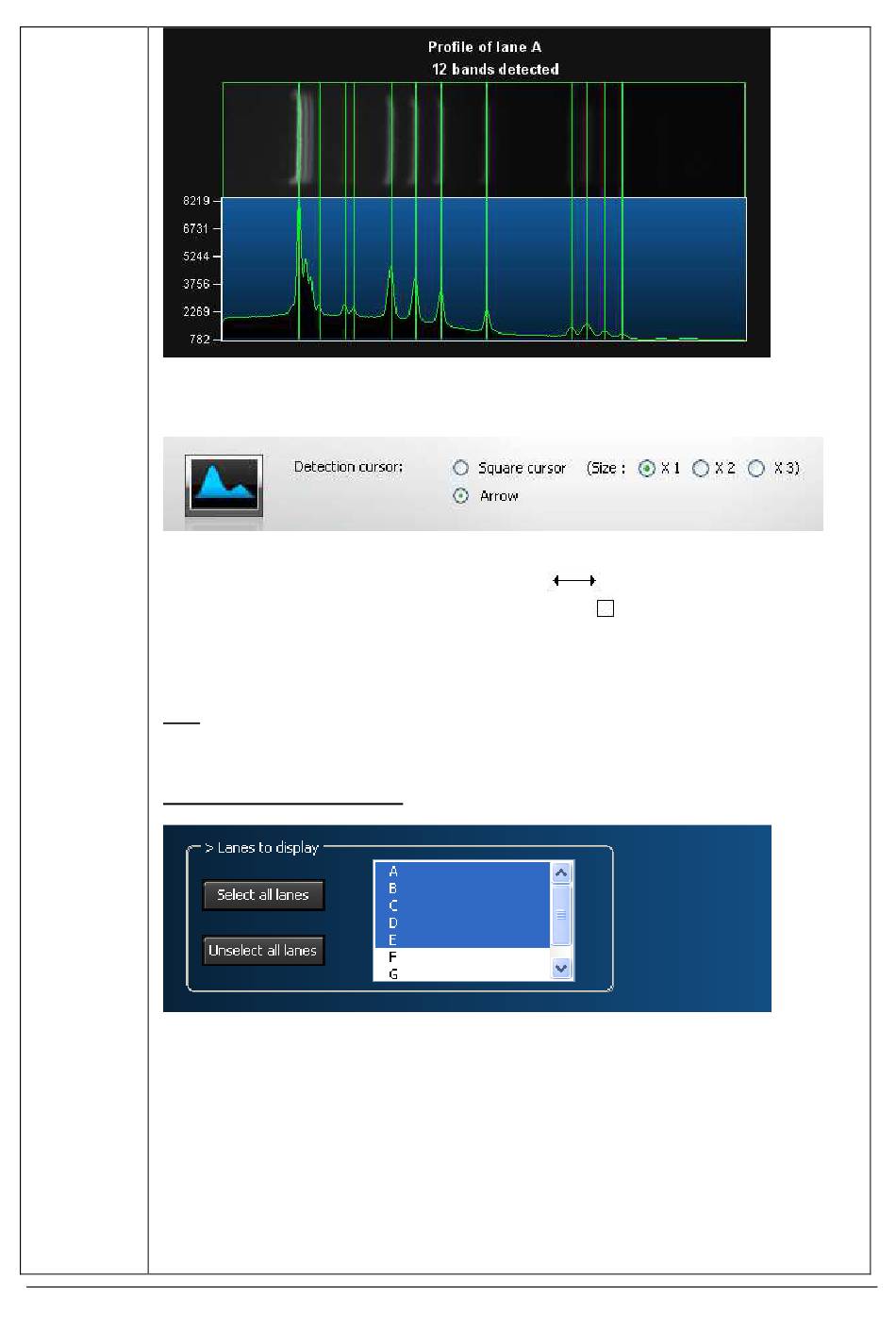

You can add or remove bands by clicking directly on the profile. To proceed, select
the cursor type:
The linear cursor has the shape of an arrow (
The rectangular cursor has the shape of a square (
Place the cursor at the chosen profile location and click. The detection line is
automatically added or removed.
Note: For arrow cursor, the band is added at the cursor position.
For rectangular cursor, the band is added at the highest position within cursor bounds.
V
ISUALISATION OF THE PROFILES
In the profile parameter window, you can select the lanes' profile to be displayed. To do
so, just click on the profile name to select or unselect the profiles.
You can also define the way the profiles are displayed:
-
-
-
-
-
-
UVITEC – Cambridge
113/225
Only the profile
Only the image
Both the profile and the image
In an horizontal way
In a vertical way
Stacked the profiles of the selected lanes
)
)
