6.2.2.1 – Upper Panel: Feedback Display
The options available in the Feedback display panel remain the same with the addition of the following features, as
shown in Figure 96:
1. Option to automatically change between water line displays at intervals up to every 120 seconds;
2. Reference to the current water line being displayed;
3. Use the F1 key to manually toggle the display between water lines.
8 Meadowbank Road, Carrickfergus, BT38 8YF, Northern Ireland

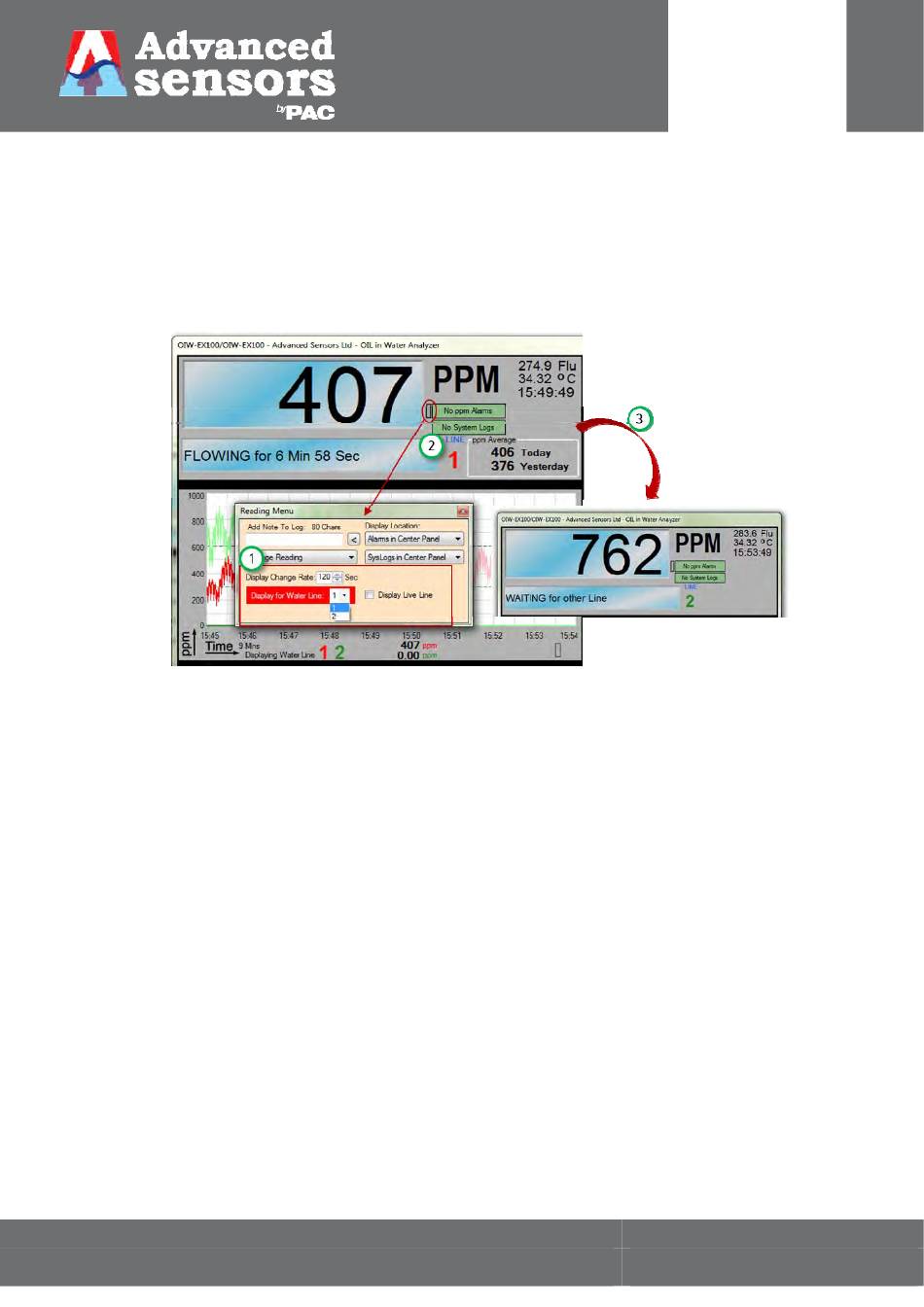

Figure 96: Feedback display panel with options for a dual flow system.
