The underside of the analyzer enclosure, Figure 3, is equipped with 8 x M25 entries (#1) (4 to the front and 4 to the back
of the enclosure) and all unused entries fitted with nickel plated brass stopping plugs as standard. The OIW enclosure is
also fitted with a nickel plated M5 Earth boss (#2) and an external USB port
USB mouse or storage drives.
1. M25 General Purpose Entries (x8) 2. M5 Earth boss 3. External USB Port (approved for Hazardous Areas)
The M25 general purpose entries are typically used for wiring electrical connections. OIW analyzers are wired in one of
three standard configurations – without a terminal box, with a terminal box or a terminal box fitted with an isolation
switch. Under special circumstances, analyzers may also be configured to accommodate specific electrical requirements.
1 USB ports are fitted as standard on all units EXCEPT Aluminium enclosures fitted with terminal boxes.
8 Meadowbank Road, Carrickfergus, BT38 8YF, Northern Ireland

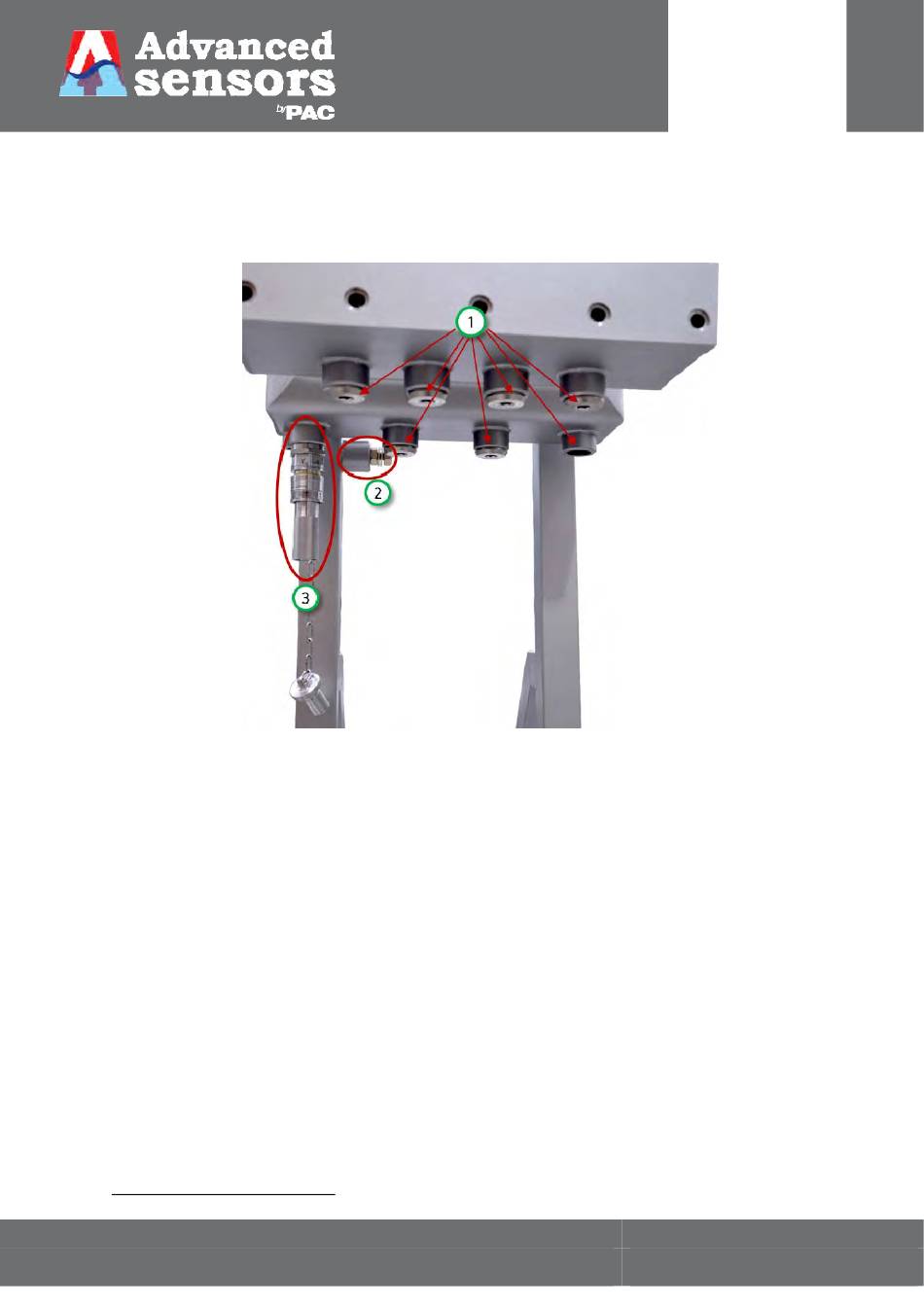

Figure 3: Underside view of an analyzer.
