Main Software Window; Www.advancedsensors.co.uk - Advanced Sensors OIW-EX Series User Handbook Manual

3.2 – M
AIN
All of the OIW Series of analyzers use common software for simplicity and ease of use. The following sections will
provide a detailed overview of the software's functionality. The main screen, Figure 24 below, has 3 main information
display panels:
1. Upper Panel: Feedback display
2. Middle Panel: Graphical display – Reading or spectral data (EX-1000 Models ONLY)
3. Lower Panel: Multifunction display for Configuration Options (with login), Overview & additional Graphical display
(*Please note this screen image is from an EX-1000 and is for illustrative purposes only in this instance)
NOTE:
8 Meadowbank Road, Carrickfergus, BT38 8YF, Northern Ireland
S W
OFTWARE INDOW

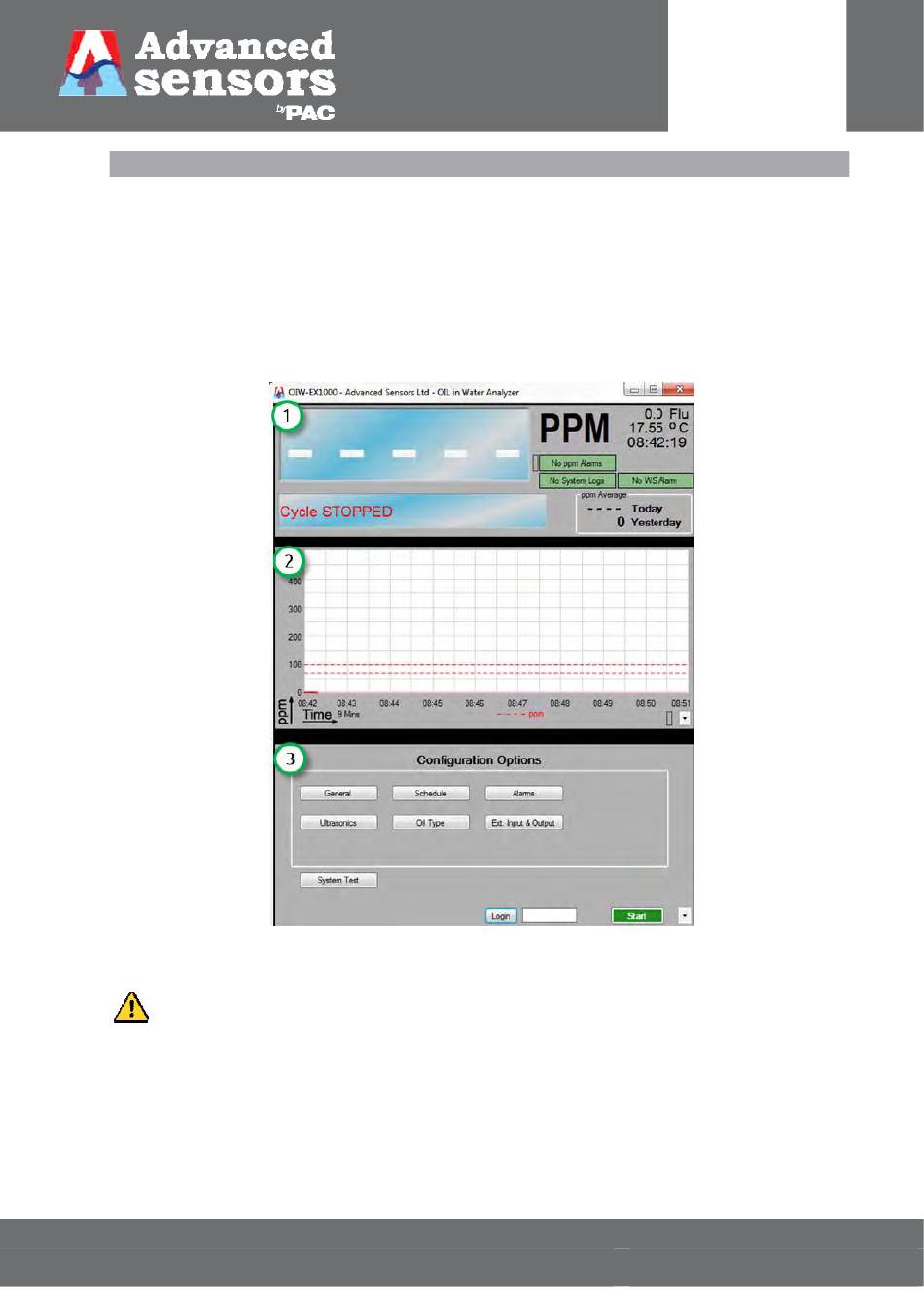

Figure 24: OIW EX Software main display*
To change any of the configurable options, or display options, user login is required. For any
changes to take effect the user must log out. For some changes to take effect restarting the
software may be required.
