For EX-1000 Models:
Both graphical displays for the EX-1000 have the same basic 'Graph Menu' functions as the EX-100. Both graphs,
however, have an additional drop down list which allows the user to select a 'Reading Graph' and/or a 'Spec Graph' to
display reading values or spectral data respectively. Figure 34 below is a graphical display showing a 'Reading Graph' in
the upper graphical display and a 'Spec Graph' in the lower display. These displays can show either reading or spectral
data or both depending on the users requirements.
When the 'Spec Graph' is selected for display, graph information is displayed to the right which includes the time and
date of the displayed sample, the active oil type, spectra scaled to mask, a 'Take Spectra' button and a grey menu
button, like those from previous displays, to bring up the 'Spectra Graph Menu'.
Selecting the 'Take Spectra' button will display a spectral graph of the current active water line. The time, date and
active oil type for the spectra taken is then displayed.
8 Meadowbank Road, Carrickfergus, BT38 8YF, Northern Ireland

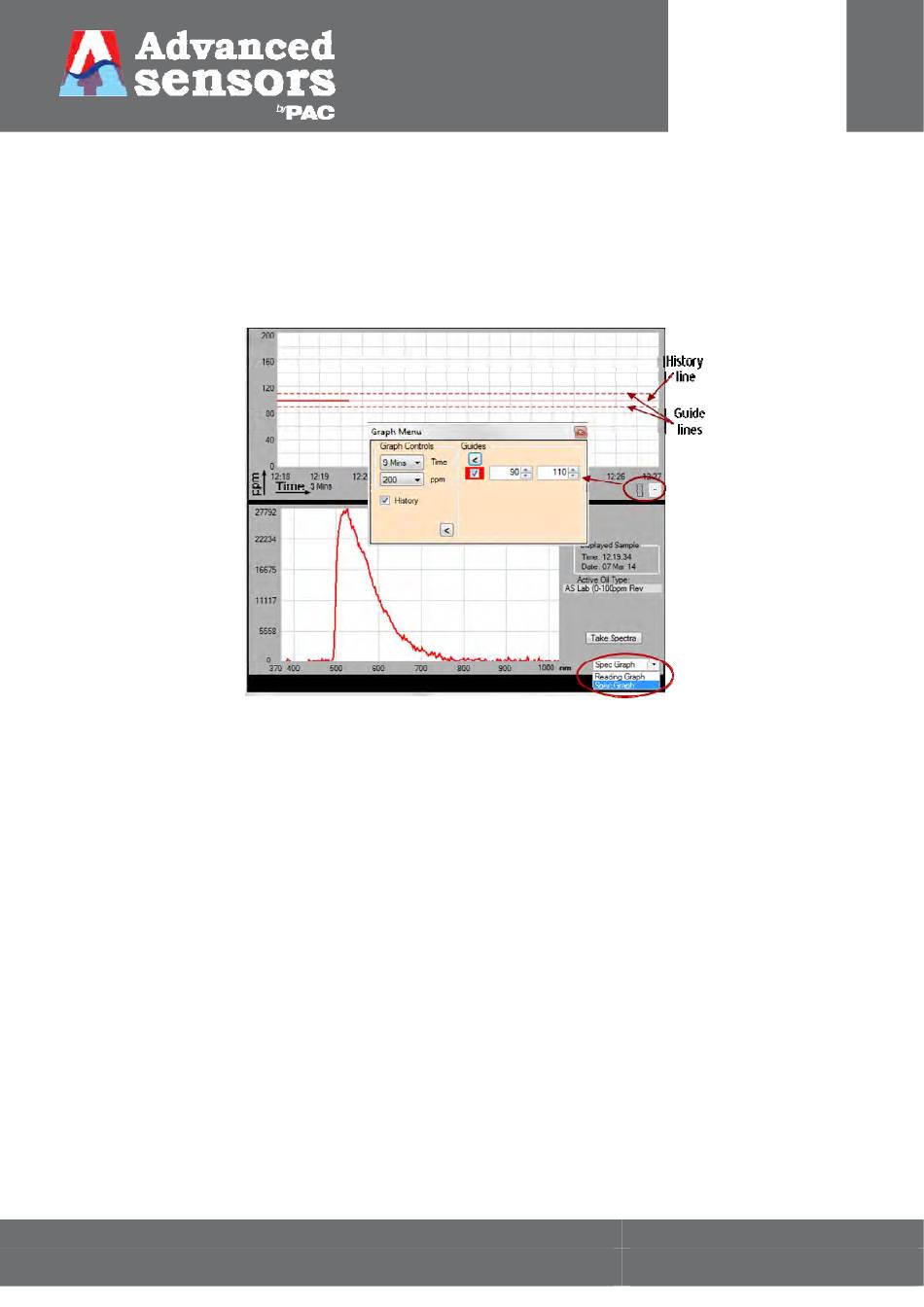

Figure 34: Graphical display for the EX-1000*.
*Example for illustration only actual screen may vary with alarm type.
