6.2 – S
OFTWARE
6.2.1 – Selecting a Water Line for Configuration
When analysis of an additional process line is required, the OIW analyzer can be fitted with a second flow valve. The OIW
software is designed to accommodate this extra process or water line. The second water line must be configured for
the process to be analyzed; this is done in the same way as the first water line. All of the system Configuration Option
Menus will have a Water Line drop down selection box as shown in Figure 94. To apply process specific configurations
users must ensure Water Line 2 is selected for the menu option, configure the items, 'Close' and then 'Save Changes &
Logout'. For complete software information see Section 3 – Overview of Software Operation p.22.
6.2.2 – Display Options for Dual Flow
The main software display maintains the same layout with a few minor adjustments for the second Water Line as shown
below in Figure 95. The following section will highlight the additional information present in the OIW software display
for dual flow systems.
8 Meadowbank Road, Carrickfergus, BT38 8YF, Northern Ireland
I
NTERFACE

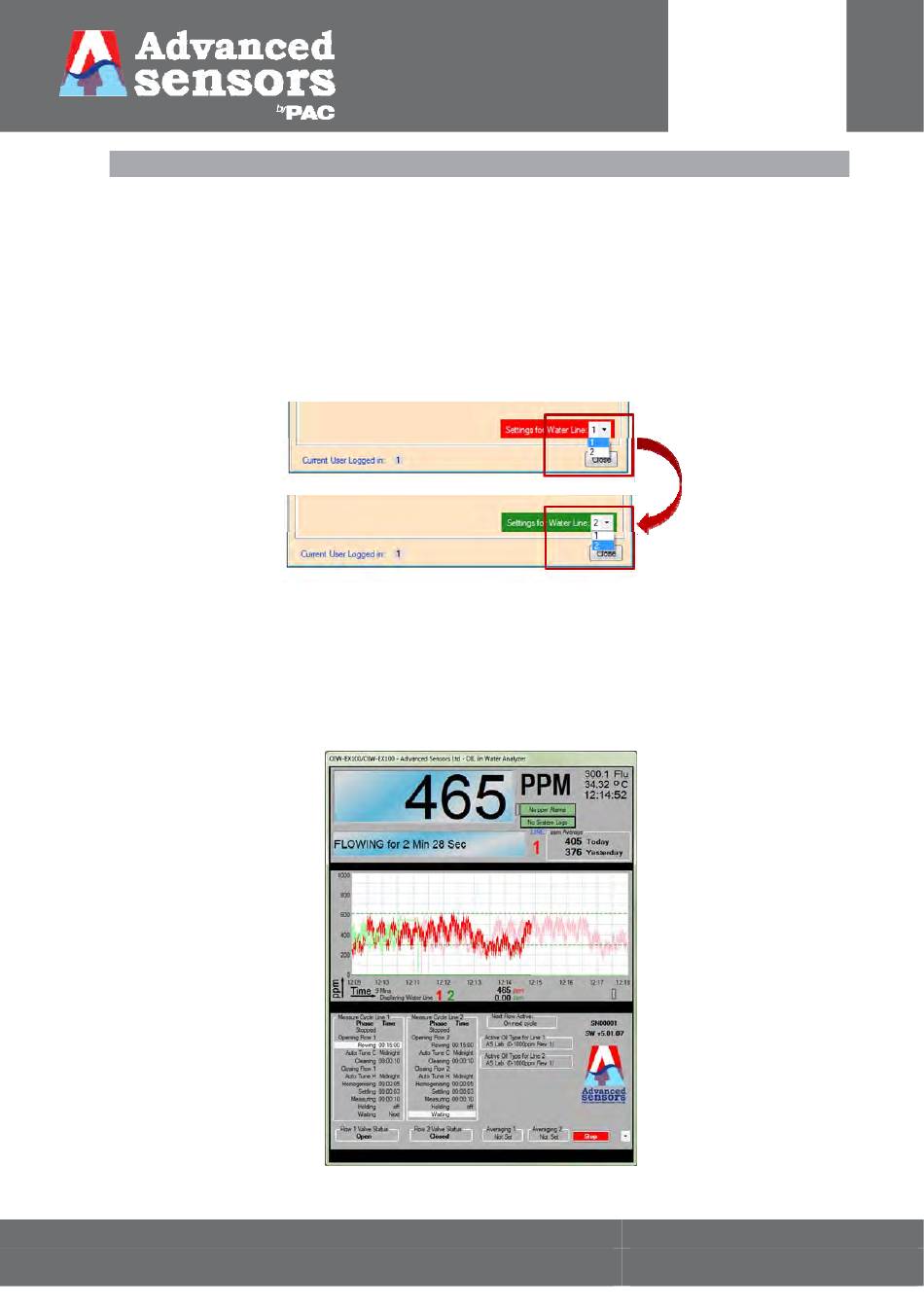

Figure 94: Water line selection from the Configurations Options Menu.
