The status indicates if a log or alarm is 'Raised', 'Acknowledged (Ack'ed)' or 'Cleared'. 'Raised' indicates the system has
raised a log or alarm and no action has been taken. An 'Ack'ed' status indicates the user has checked or selected the log
or alarm for more information and the status box will change to amber. Finally 'Cleared' indicates the user has cleared
the log or alarm and the status box changes to green. To delete a selection or all logs or alarms right click in the alarm
list and a delete dialogue box will open to confirm the action. Figure 31 shows an example list of alarms, with
descriptive logs in each of the 3 status settings, and the 'Delete' system logs confirmation dialogue.
The 'Log' column displays information about the log or alarm. See Section 4 – System Logs and Troubleshooting for
additional information.
Next is a 'Severity' column, which categorizes logs or alarms into 'Info', 'Minor', 'Major' and 'Critical'. Information logs,
'Info', indicate a log for information only and the alarm button will remain green with 'Unread Logs'. For alarm logs that
are categorized as 'Minor', 'Major' or 'Critical' the alarm button will change to red. See Section 4.1 – List of System Log
Messages and User Actions for further information.
The OIW-EX series generates three types of alarms:
1. Measurement Alarms: where specified measurement thresholds are exceeded;
2. System Logs: generated as a result of system events during routine operation; and
3. WS (Water Status) Alarms
To configure both measurement alarms and system logs see Section 3.2.3.3 – Alarms Configuration Menu. WS alarms
are configured under the 'Oil Type' menu as described in Section 3.2.3.5.5. – Spec Mask Settings.
3.2.1.6 – Measurement Average Display
This section of the Feedback Display Area is an optional display to provide the user with a comparative daily average. A
cumulative daily average is calculated for the current (today) and previous (yesterday) days, displayed as in Figure 32
below. Additional information to add or remove this from the display area is in Section 3.2.1.4 – Reading Menu.
2 Applicable to EX-1000 systems only.
8 Meadowbank Road, Carrickfergus, BT38 8YF, Northern Ireland

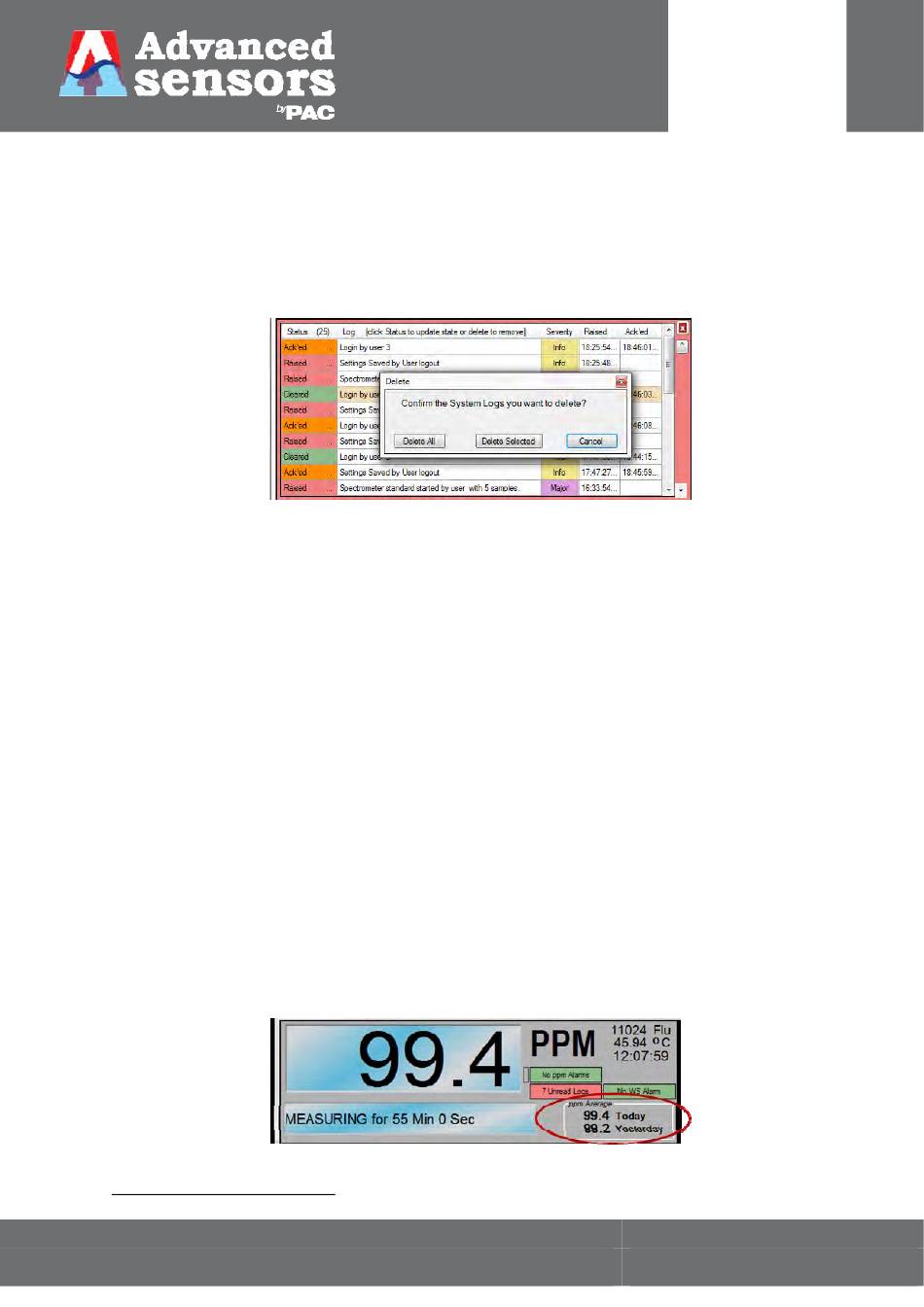

Figure 31: Status indicators and delete options for alarms.
