3.2.2 – Middle (and Lower) Panel: Graphical Display
The EX Series software has 2 graphical display areas for measurements: the main upper (in the middle display panel)
and a secondary lower (in the bottom display panel). Available configurations vary with model and are described below.
NOTE: When using a keyboard F2 and F3 keys can be used to toggle between displayed graph types, where
F2 applies to the middle panel (upper) graph and F3 applies to the lower panel. Additionally F5, F6
and F7 will open PPM, Logs and WS alarm lists respectively in the upper graphical display.
For EX-100 Models:
Display options for the upper and lower graphical display are accessed when right clicking within the graph area (if
using a mouse) or by selecting the grey menu button below the graph as shown in Figure 33 below.
options for the EX-100 allow the user to set values for the reading scale, time intervals, track measurement history
and/or set reference guide lines at specified reading values.
The reading scale for a given value range is selected from the drop down menu (dependent on measurement unit).
The time scale can display values for intervals of 9 minutes, 1.5 hours, 6 hours or 24 hours. Time scale values can be set
independently for the upper and lower graphs; meaning each can display measurements for 2 different time intervals.
Selecting the 'History' option will display the previous results, for the same time interval, as a watermark line.
Ticking the Guides box will open two scroll boxes for the user to define the values for upper and lower guide lines to
display on the graph for reference.
Display options for the lower graph include the same 'Graph Menu' options as listed above. The Reading Value and Time
scales can be adjusted to display different ranges than those selected for the upper display. The additional drop down
menu, as shown in Figure 33 above, will only allow the user to select the 'Reading Graph' option as the display type.
8 Meadowbank Road, Carrickfergus, BT38 8YF, Northern Ireland

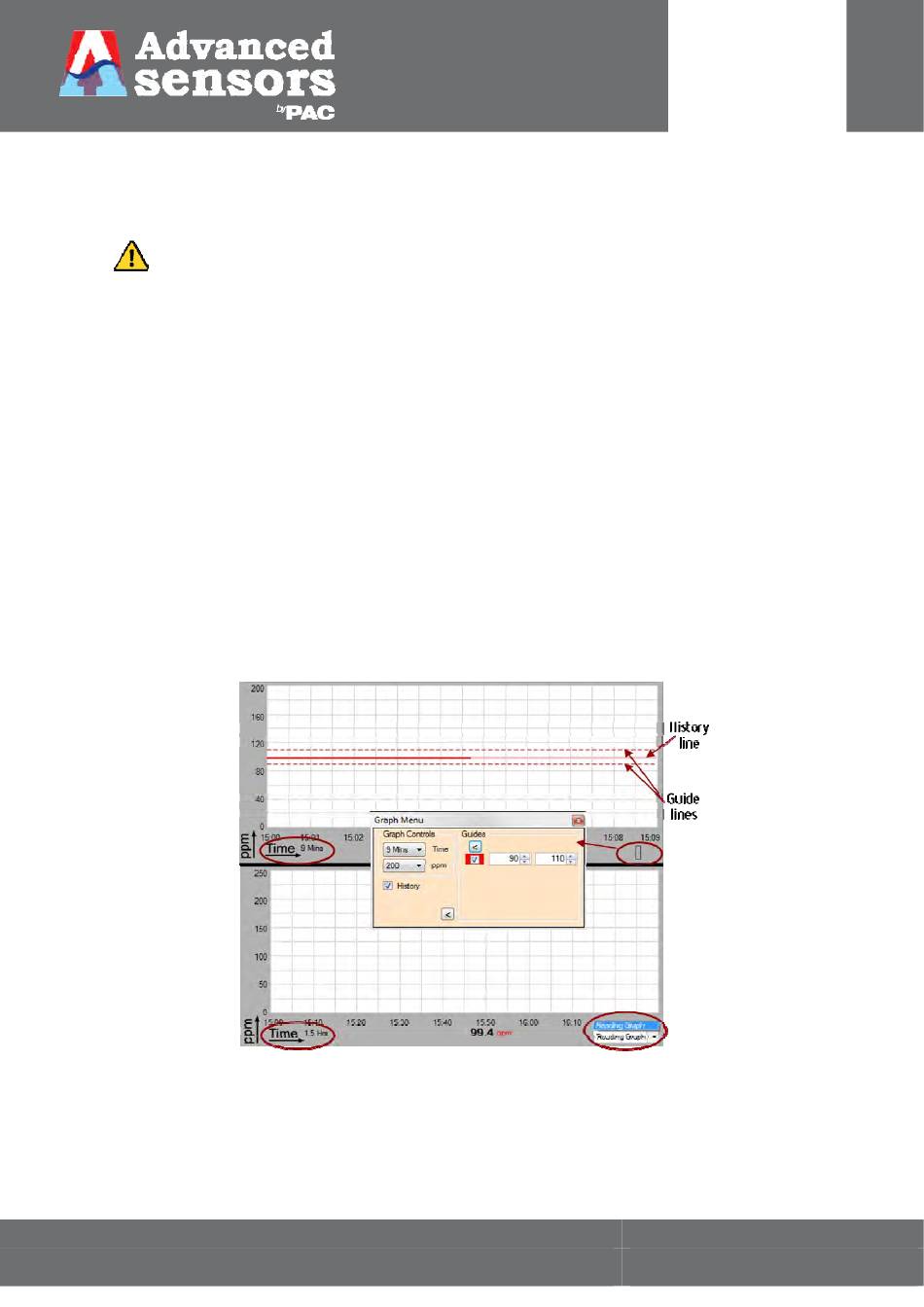

Figure 33: Graphical display area for the SA100
