5.2.1.1 – Locating OIW Log Files
Analyzers will run on either Windows XP Pro or Windows 7 operating systems (OS).
between the two operating systems and is described in the following sections.
5.2.1.1.1 – Windows XP
Users with Windows XP should navigate to the OIW log files as follows; see Figure 83 below for screenshots of file path:
1. Select the 'Start' button
2. Select 'My Computer'
3. Next locate and select the 'Shared Documents' folder.
4. The 'OIWlogs' folder should be the only folder contained in 'Shared Documents'
1. Start  2. My Computer
8 Meadowbank Road, Carrickfergus, BT38 8YF, Northern Ireland

3. Shared Documents

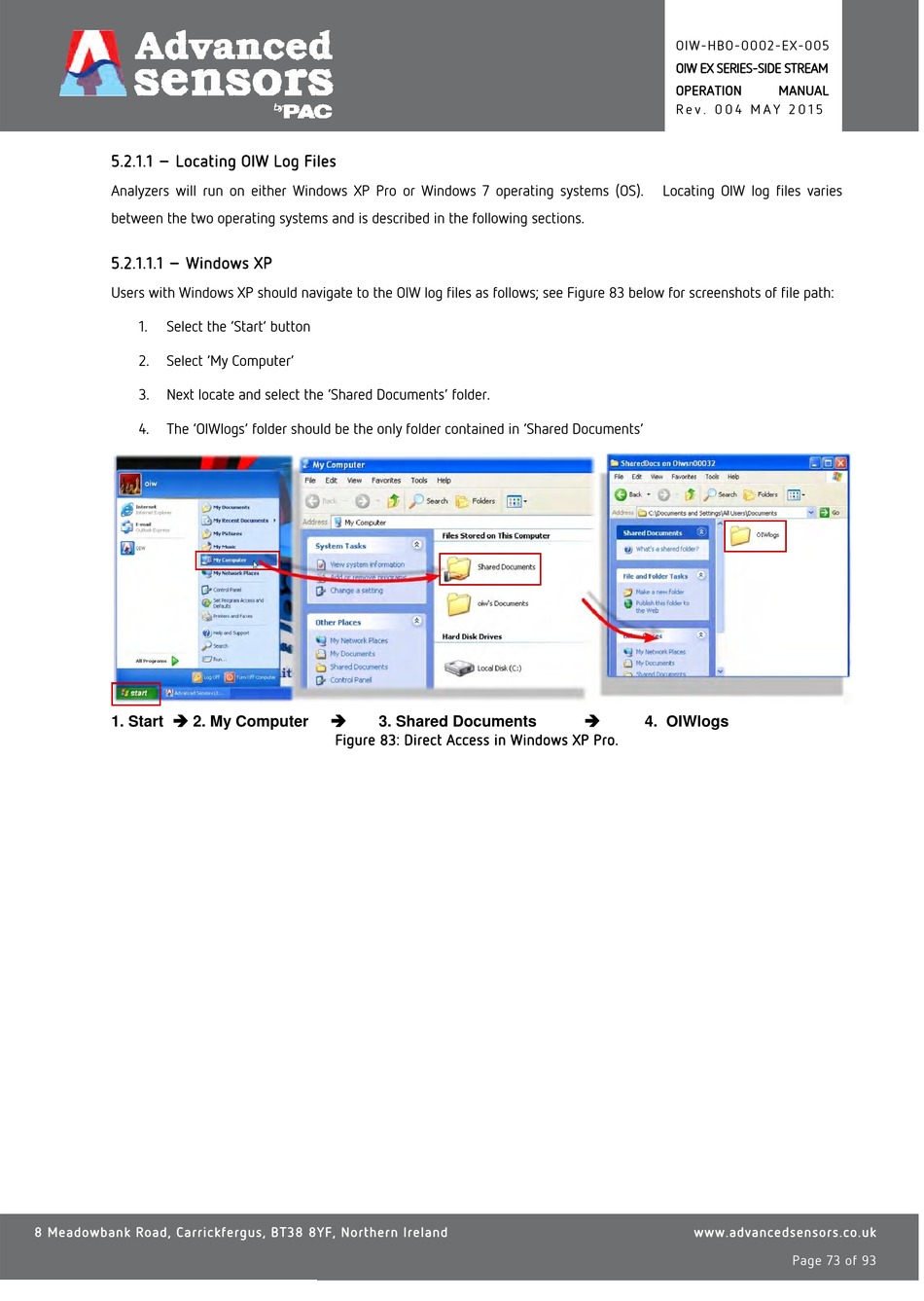

Figure 83: Direct Access in Windows XP Pro.
OIW-HBO-0002-EX-005
OIW EX SERIES-SIDE STREAM
OPERATION
R e v . 0 0 4 M A Y 2 0 1 5
Locating OIW log files varies

4. OIWlogs
