Custom Tag: this editable field allows users to input a tag number, unit identifier or reference label up to 16 characters
long. This is then displayed under the Advanced Sensors corporate logo in the 'Configuration Settings' display area as
circled in the figure below.
Enable MRM Access: tick to enable when a remote manager in use. When enabled system will send data to the Master
Remote Manager. Disable when an MRM is not in use.
Enable On Screen Keyboard: tick to enable and an on screen keyboard, as below in Figure 42, will open when any
editable field is selected. This will allow the user to input information on the touch screen without an external keyboard.
Deselect when not required.
8 Meadowbank Road, Carrickfergus, BT38 8YF, Northern Ireland

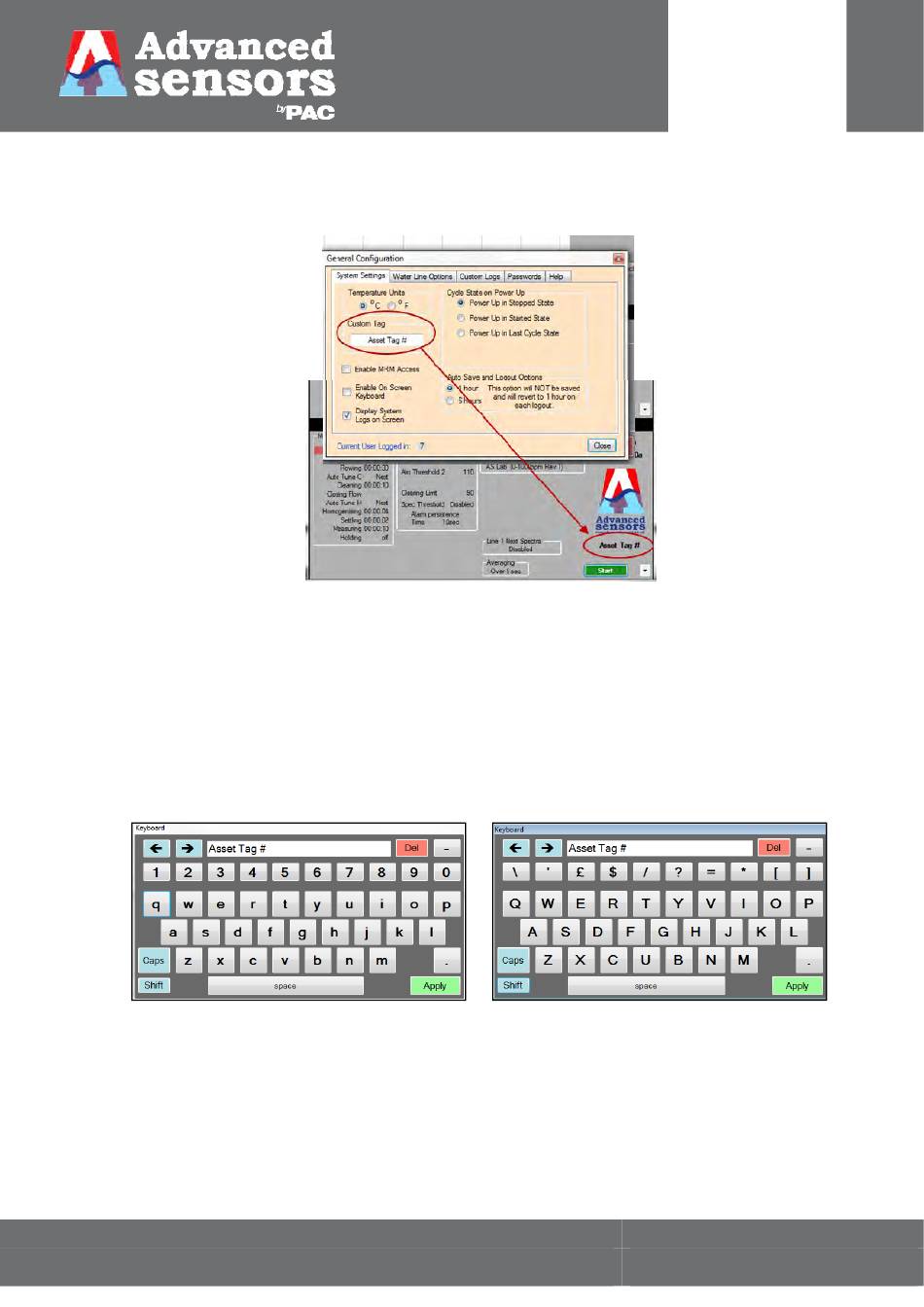

Figure 41: Identifying the configuration and display locations of custom tags.
Figure 42: On screen keyboard, Shift or Caps to toggle between.
