S
2 – U
ECTION
2.1 – O
VERVIEW OF
This section provides an overview of the generic external components common to the EX Series with Side-Stream
configuration. Configurations can be customised based on a users requirements and therefore may differ in appearance
to the generic configuration described in this section.
please see the Installation Manual (OIW-HBO-0001) and the electrical diagram supplied with the analyzer.
Figure 2, shows the front of the analyzer with the enclosure (including the display) (#1), terminal box (#2) and stand
(#3). The flameproof stainless steel enclosure (#1) has an offset hinged door with integrated viewing window and
houses the control PC, ultrasonic power supply, light source and additional PC boards required to integrate operation of
the analytical components. The terminal box (#2) (optional) is also a stainless steel enclosure housing the installed
electrical terminals. The analyzer is mounted to a stainless steel stand (#3) with 4 adjustable feet for levelling.
8 Meadowbank Road, Carrickfergus, BT38 8YF, Northern Ireland
O
NIT
VERVIEW
U
H
NIT
ARDWARE

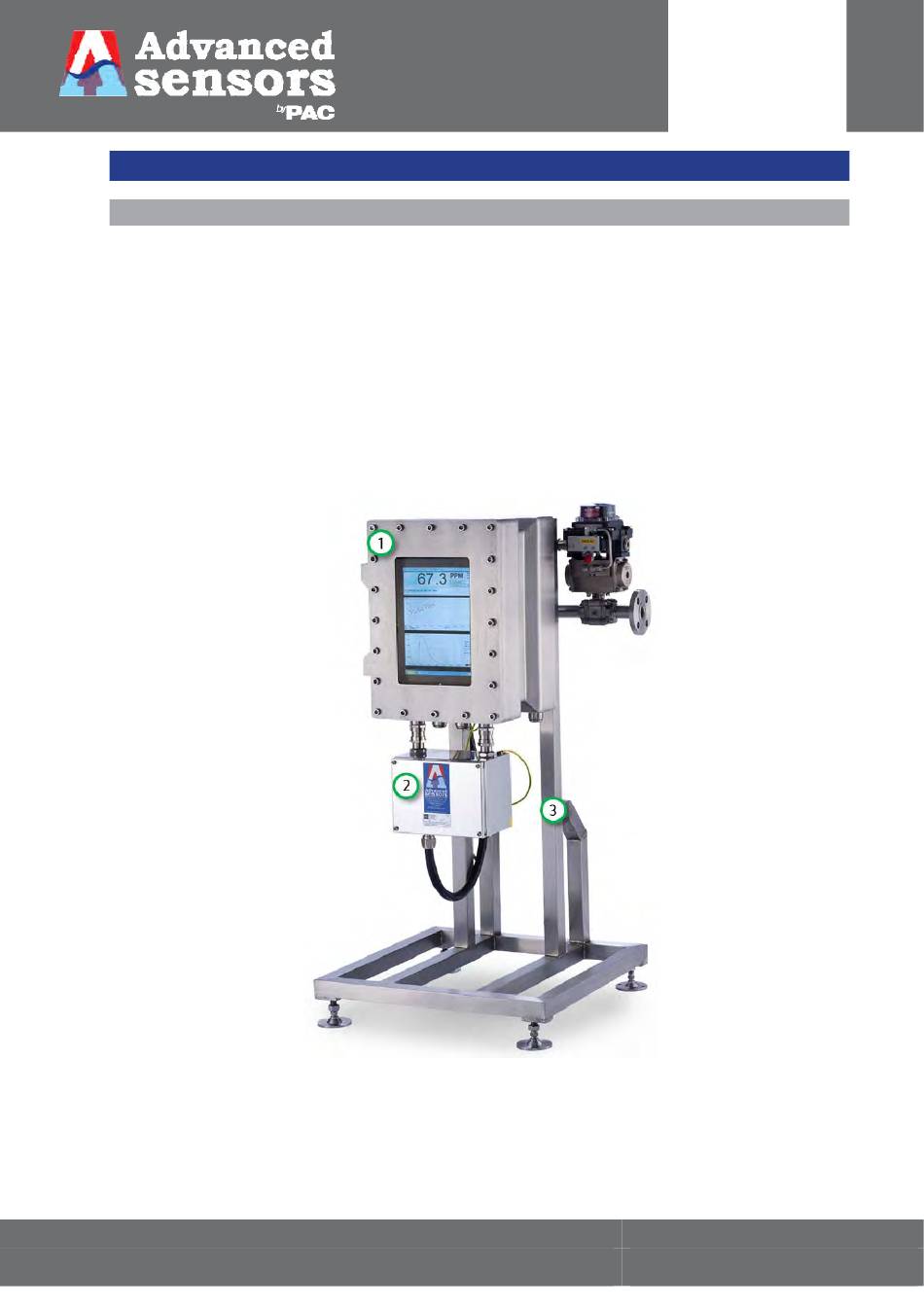

Figure 2: Front view of analyzer.
1. Enclosure (front) with display 2. Terminal box 3. Analyzer stand
For installation information, including electrical connections,
OIW-HBO-0002-EX-005
OIW EX SERIES-SIDE STREAM
OPERATION
MANUAL
R e v . 0 0 4 M A Y 2 0 1 5
www.advancedsensors.co.uk
Page 10 of 93
