Process connections are fitted to the rear of the analyzer, #1 in Figure 6a below. Process water is fed in through the
lower process inlet into the measurement chamber (#8) and flows out through the upper process outlet, as indicated by
the red arrows in Figure 6b below. The standard unit configuration consists of a valve assembly (#4 Valve, #5 Actuator
and #6 valve controller), chamber assembly (#8 chamber, cover and connecting pipe work) and sample point (#9).
At the flow outlet a sample point is fitted which terminates, as standard, in a ½" NPT valve (#9) from which samples can
be taken for lab analysis. The measurement chamber is fitted with a viewing window covered by a removable window
cap (#8). The valve assembly fitted to each unit uses a valve controller (#6) to operate the flow valve (#4)
Each unit is fitted with a valve controller to regulate valve position via a pneumatic (fitted as standard), or electric
(optional), actuator controlling the flow of process water into, and out of, the chamber.
a
.

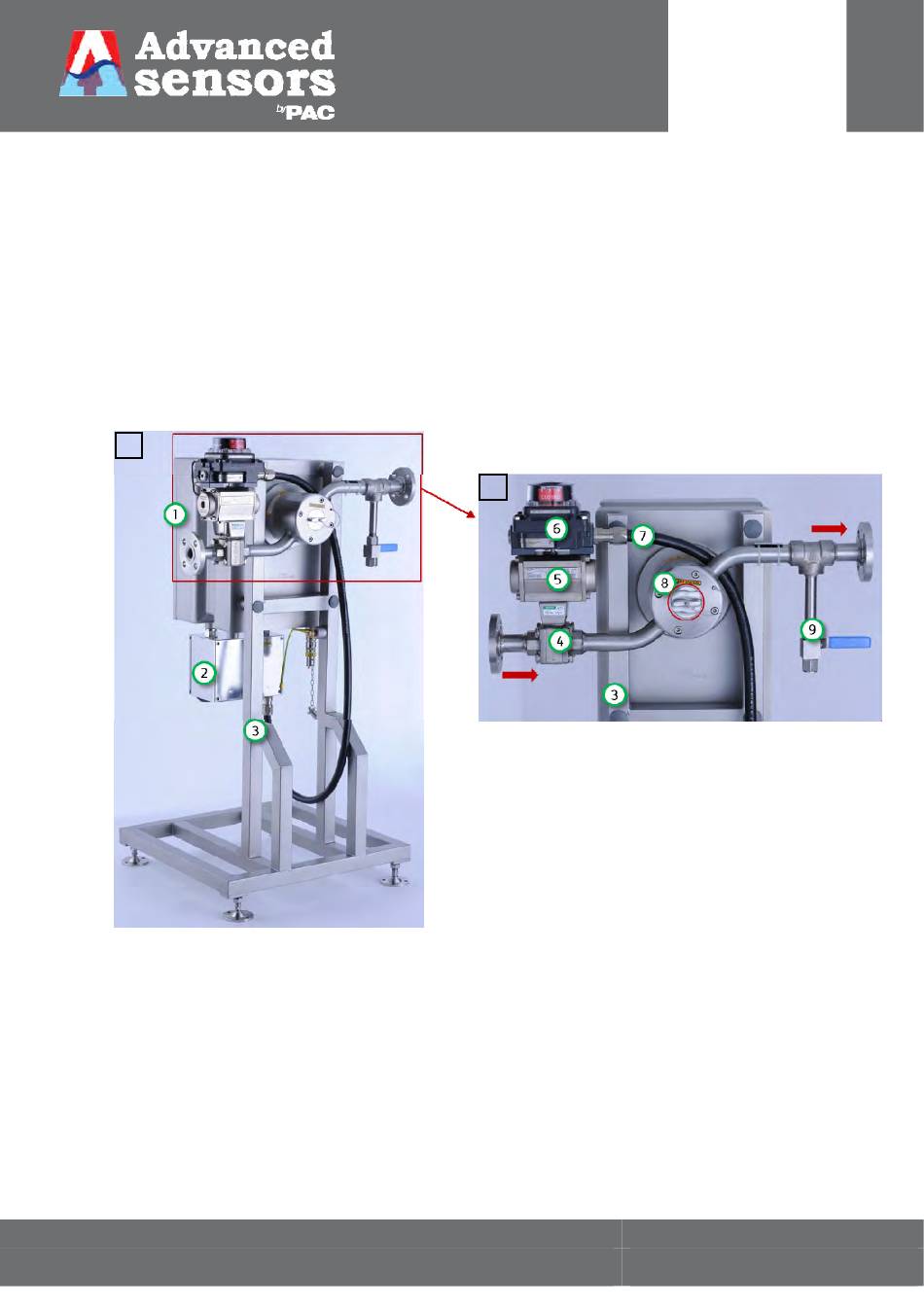

Figure 6: a. Rear and b. Magnified rear views of the analyzer. Red arrows denote flow direction.
1. Enclosure 2. Terminal Box 3. Analyzer Stand 4. Flow Ball Valve 5. Pneumatic Actuator 6. Switchbox/Valve controller
7. Conduit containing electrical wiring 8. Chamber assembly with removable cover (for the viewing window) and
8 Meadowbank Road, Carrickfergus, BT38 8YF, Northern Ireland
b.
9. Sample point with valve.
