3.2.3 – Lower Panel: Configuration Options, Login, Overview and Graphical Displays
From this panel the user can view and configure the various system parameters, login/logout of the system, view the
configuration settings or display an additional graph. Users can toggle between each panel display using the F3 button.
A. Config Options & Login/Logout.

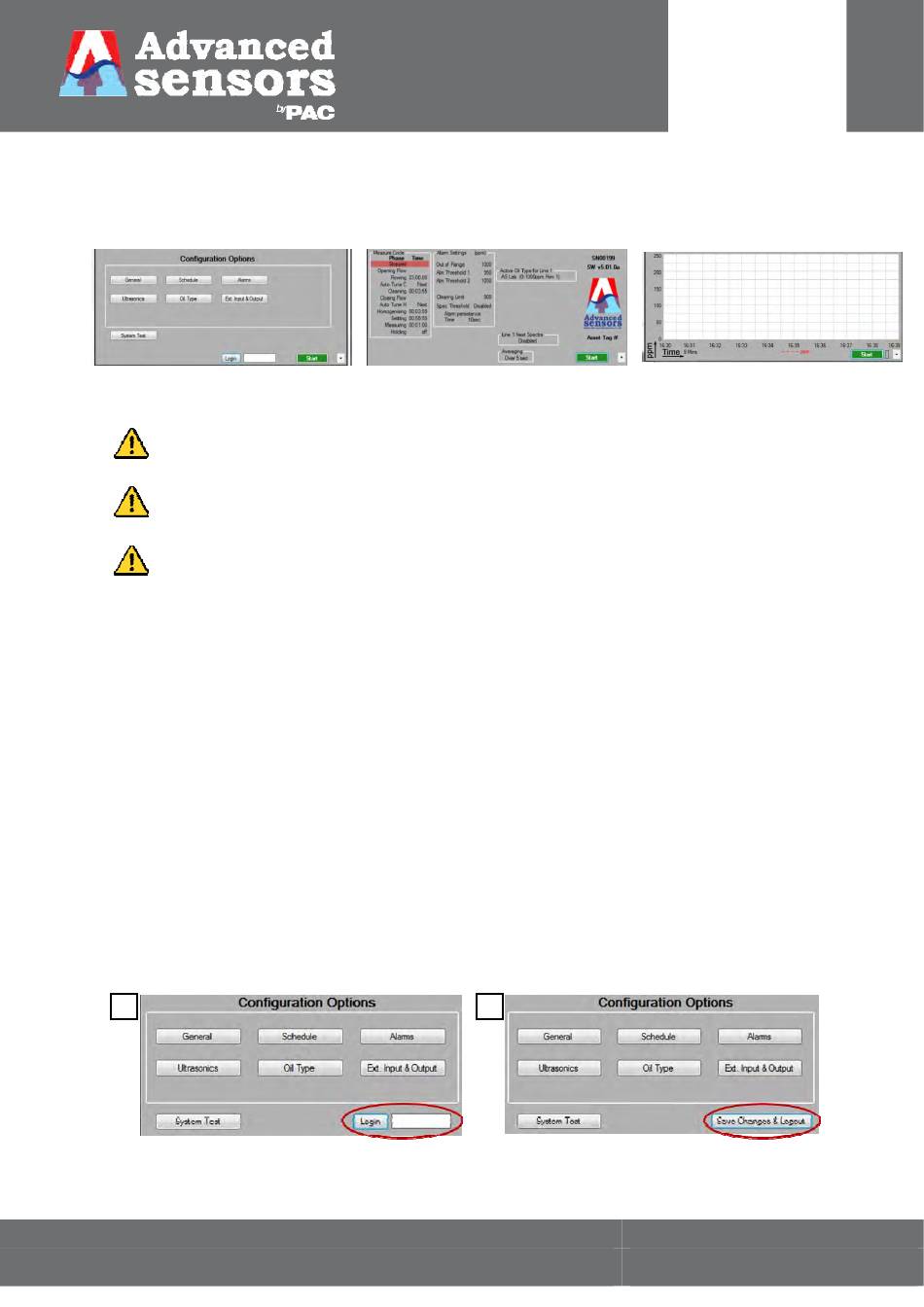

Figure 37: Screen options for the lower panel of the EX Series. Use F3 to toggle between each screen.
NOTE: If an incorrect password is entered more than 3 times then a log will be written to the system log
file and (if enabled) an alarm will be raised.
INFORMATION: After changes are made if the unit is powered down or the software shut down all changes
INFORMATION: The user must be logged on to the system in order to make any changes to the
3.2.3.1 – Configuration Options Panel
To enable configuration of the system parameters the user must first login. The following configuration panel buttons,
each opens a menu of options subdivided under individual tabs, are available for user configuration:
1. General
5. Oil Type
Login/Logout Function:
The left side 'Configuration Options' display area in Figure 38 below shows the 'Login' prompt for password entry. Once
the user has entered a valid password and successfully logged in, the 'Login' box will change to the 'Save Changes &
Logout' button, as shown in b on the right side of Figure 38 below. Any configuration changes made will take effect
immediately allowing the user to preview the new configurations. However, the 'Save Changes & Logout' button must
be selected for the new configuration(s) to be permanently applied. Otherwise the system will, by default, automatically
logout after 60 minutes saving any changes.
a
.
8 Meadowbank Road, Carrickfergus, BT38 8YF, Northern Ireland
B. Overview settings.
will be lost unless the 'Save Changes & Logout' button has been selected.
configurations and must log out to save the changes.
2. Schedule
6. Ext. Input & Output
Figure 38: a. Logged OUT and b. Logged IN screens.
C. Graphical display.
3. Alarms 4. Ultrasonics
7. System Test
b.
