2.3.6.1 About Circular Connectors

Circular connector pairs (Figure 2-5) feature a sleeve lock configuration, with an
array of pins (male side) coupled to mating sockets (female side).

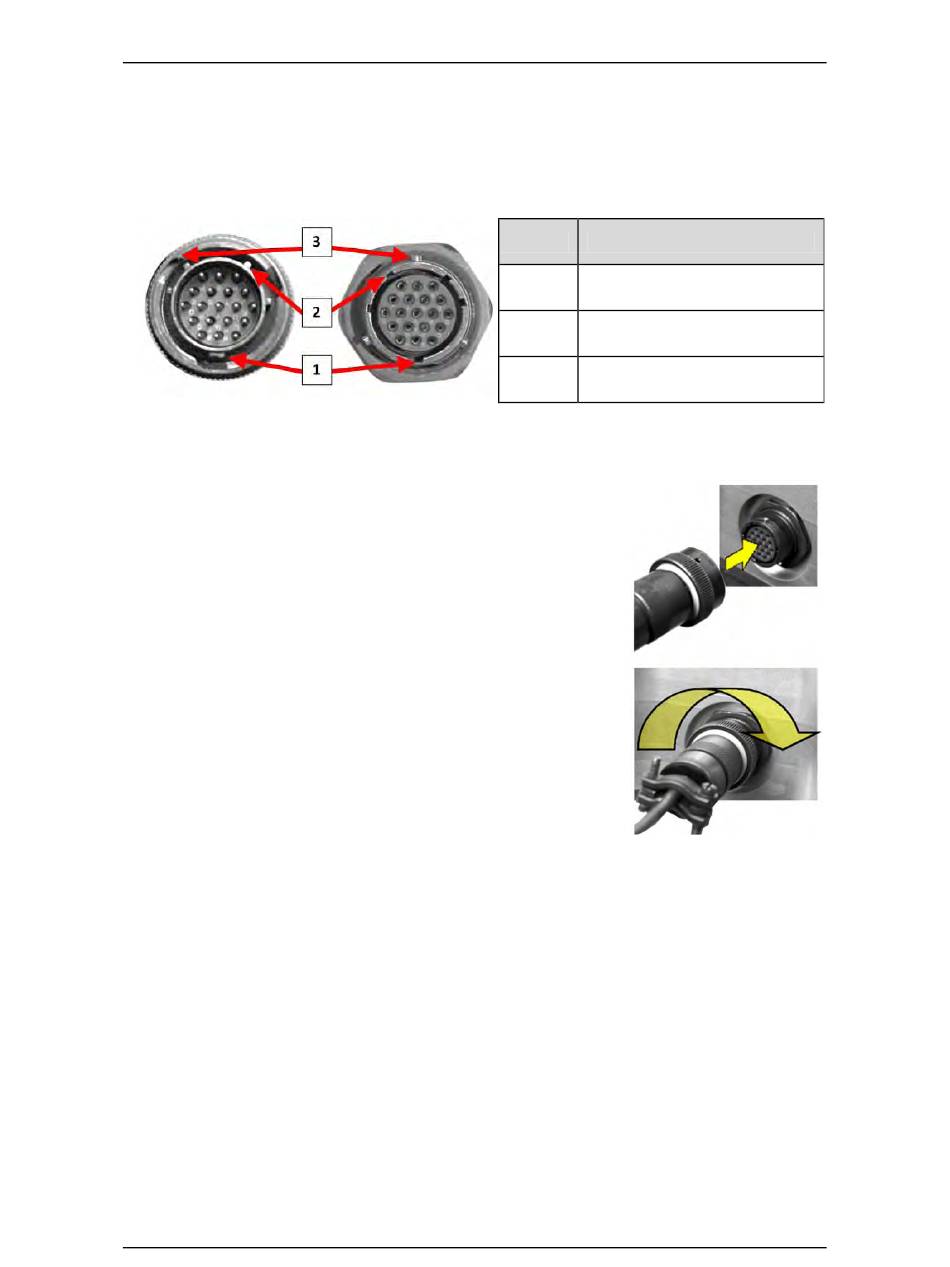

Figure 2-5. Circular Connector Example

Connection Instructions – Engage all of the alignment
and lock features between the male connector (on the
interconnection cable) and female socket. To install the
male connector into the female connector, do these
steps:
1. Engage the primary and secondary alignment
tabs on the male connector with the mating
cutouts on the female socket.
2. Push the male connector into the female socket.
3. Turn the male connector sleeve clockwise until
the sleeve lock cutouts engage fully with the
female socket tabs and you hear a "click" sound.
Feature Description
1 Primary Alignment features
2 Secondary Alignment features
3 Sleeve Lock features
