LPOD-R Outdoor Amplifier / Block Up Converter (BUC)
Appendix A
A.3.1
RF Cable (Type 'N')
Use this Type 'N' cable for the Tx or Rx connections in LPOD-R standalone or future 1:1 Redundancy applications:
• For all LPOD-R standalone applications – This cable connects directly from the Tx signal source to the 'J1 | L-BAND IN' LPOD
interface.
• For LPOD-R PS 1 C-Band standalone applications – This cable connects directly from the 'J2 | RF OUT' LPOD interface to the
Rx signal destination.

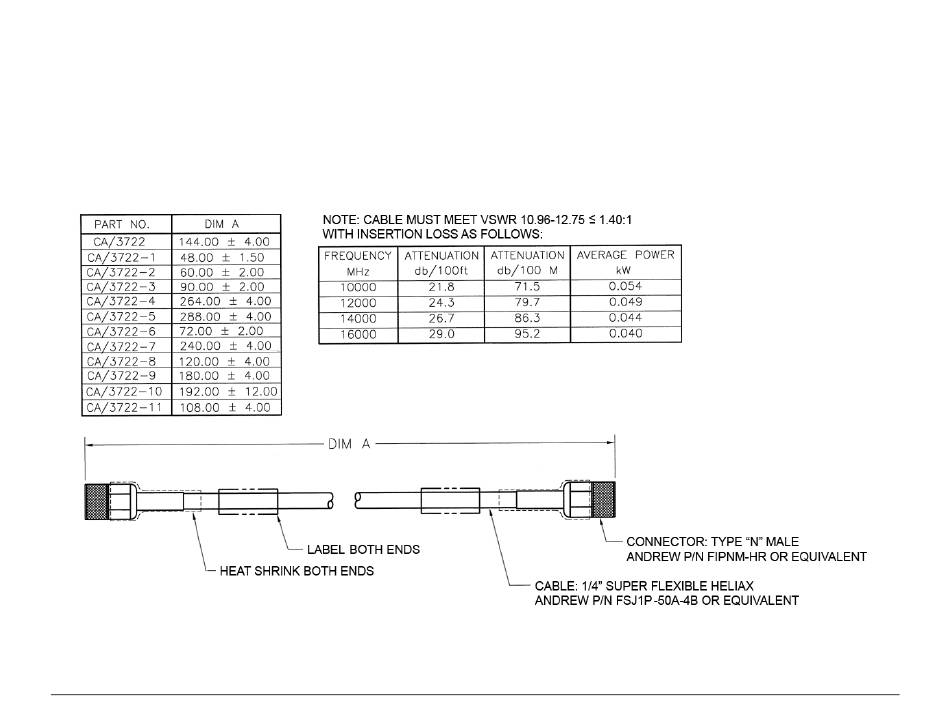

Figure A-4. 1/4" Heliax Coaxial Cable (CA/3722-X)
A-6
MN-LPODR
Revision 3
