Cash register characteristics

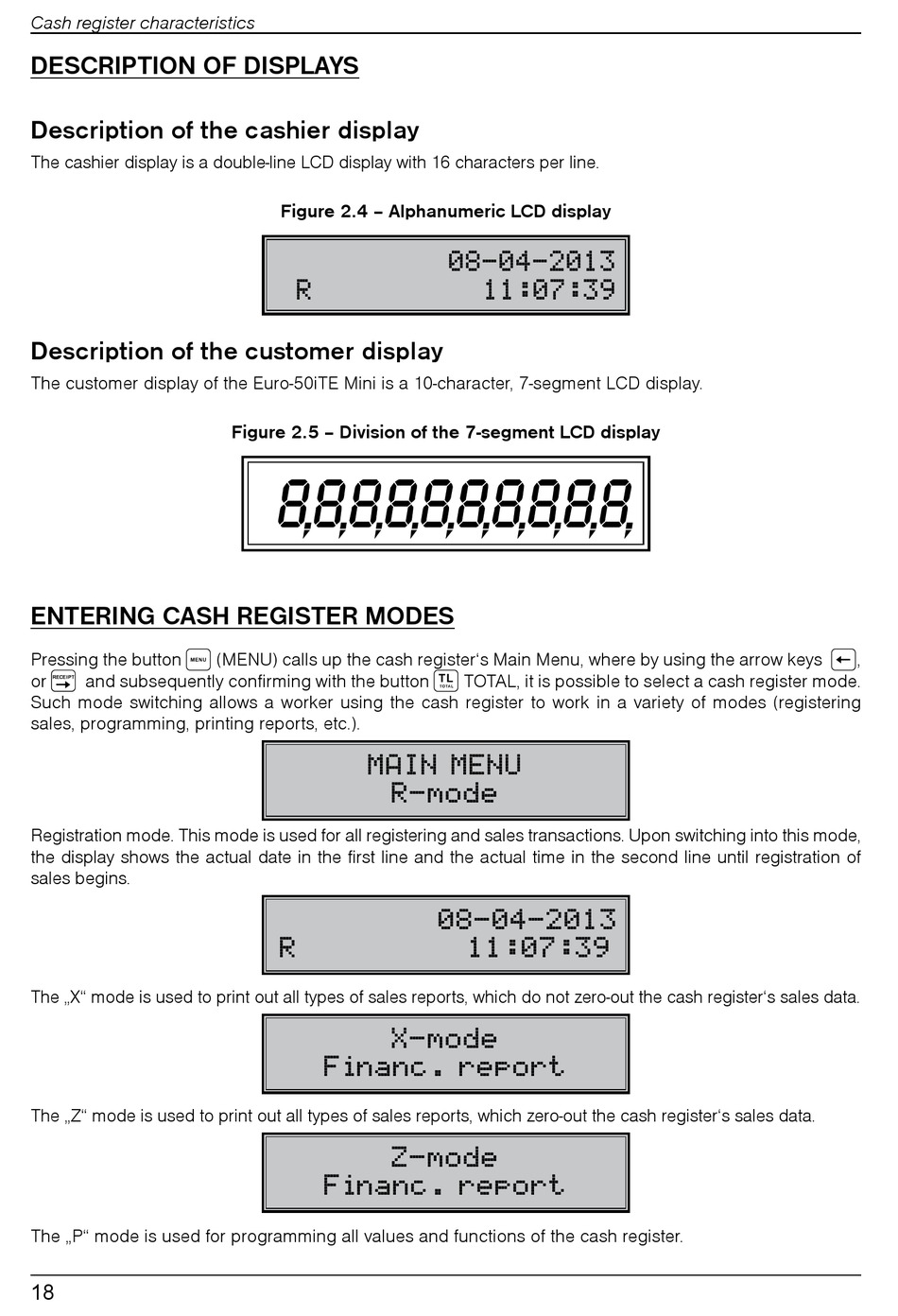

DESCRIPTION OF DISPLAYS

Description of the cashier display

The cashier display is a double-line LCD display with 16 characters per line.

Description of the customer display

The customer display of the Euro-50iTE Mini is a 10-character, 7-segment LCD display.

ENTERING CASH REGISTER MODES


Pressing the button
or � and subsequently confirming with the button
Such mode switching allows a worker using the cash register to work in a variety of modes (registering
sales, programming, printing reports, etc.).
Registration mode. This mode is used for all registering and sales transactions. Upon switching into this mode,
the display shows the actual date in the first line and the actual time in the second line until registration of
sales begins.
The „X" mode is used to print out all types of sales reports, which do not zero-out the cash register's sales data.
The „Z" mode is used to print out all types of sales reports, which zero-out the cash register's sales data.
The „P" mode is used for programming all values and functions of the cash register.
18
Figure 2.4 – Alphanumeric LCD display
R
Figure 2.5 – Division of the 7-segment LCD display
(MENU) calls up the cash register's Main Menu, where by using the arrow keys
MAIN MENU
R
Financ. report
Financ. report
08-04-2013
11:07:39
 TOTAL, it is possible to select a cash register mode.
R-mode
08-04-2013
11:07:39
X-mode
Z-mode

,
