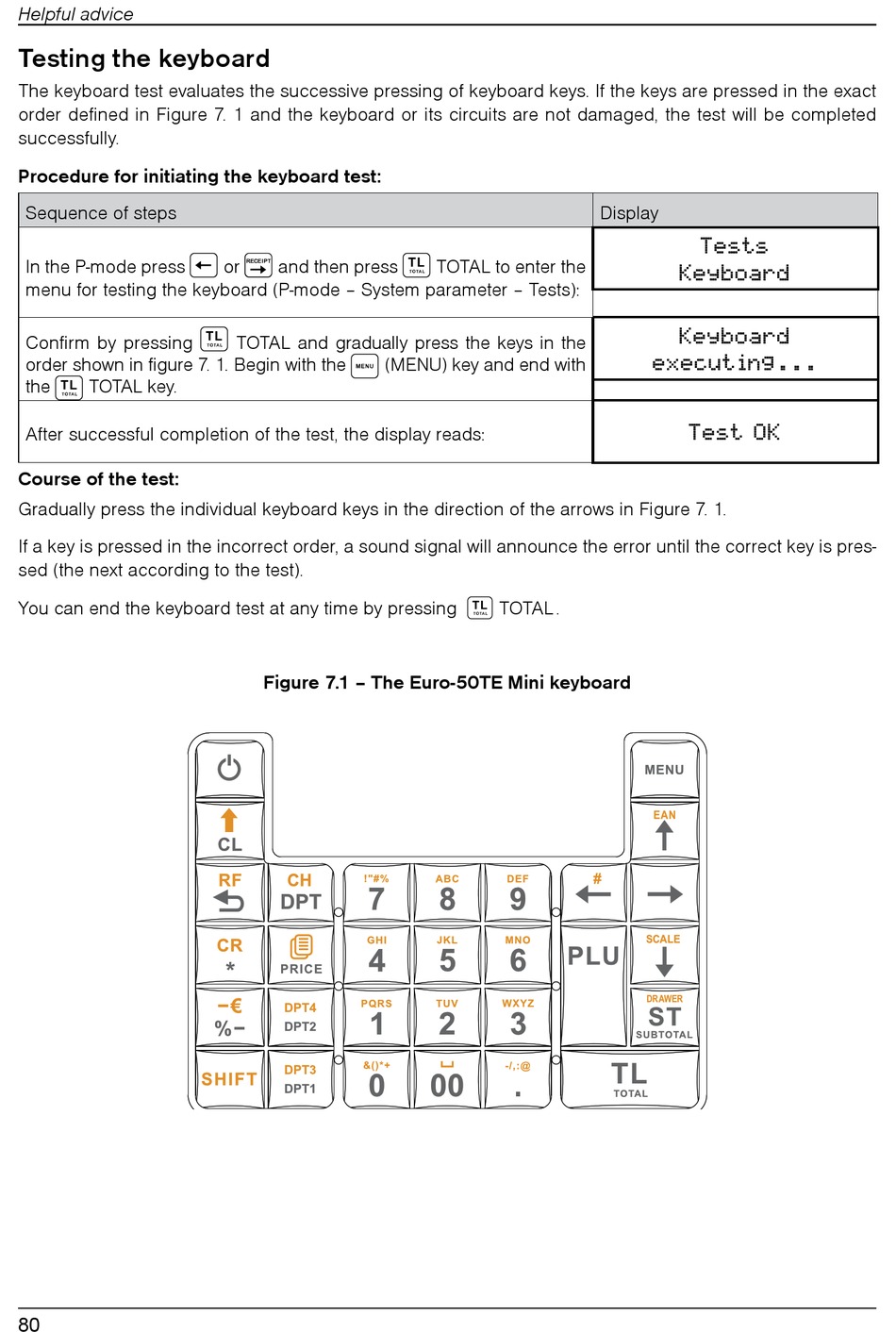

Testing the keyboard

The keyboard test evaluates the successive pressing of keyboard keys. If the keys are pressed in the exact
order defined in Figure 7. 1 and the keyboard or its circuits are not damaged, the test will be completed
successfully.
Procedure for initiating the keyboard test:
Sequence of steps
In the P-mode press
menu for testing the keyboard (P-mode – System parameter – Tests):
Confirm by pressing
order shown in figure 7. 1. Begin with the
the  TOTAL key.
After successful completion of the test, the display reads:
Course of the test:
Gradually press the individual keyboard keys in the direction of the arrows in Figure 7. 1.
If a key is pressed in the incorrect order, a sound signal will announce the error until the correct key is pres-
sed (the next according to the test).
You can end the keyboard test at any time by pressing
80
 �
or and then press

TOTAL and gradually press the keys in the

Figure 7.1 – The Euro-50TE Mini keyboard

TOTAL to enter the
(MENU) key and end with
 TOTAL .
M040879
orange keyboard prints
100% Pantone 158 CVC
gray keyboard prints
100% Pantone Cool Gray 8 CVC
Display
Tests
Keyboard
Keyboard
executing...
Test OK
