15. Bluetooth Low Energy module

Technical specifications:
Protocol: Bluetooth v.4.0 / Bluetooth Smart
•
Chipset: BLE112
•
RX Sensitivity: -103 dBm
•
TX Power: [-23 dBm, +3 dBm]
•
Antenna: 2 dBi/5 dBi antenna options
•
Security: AES-128
•
Range: 100 meters (at maximum TX power)
•
Consumption: sleep (0.4 uA) / RX (8 mA) / TX (36 mA)
•
Send broadcast advertisements (iBeacons)
•
Connect to other BLE devices as Master / Slave
•
Connect with smartphones and tablets
•
Set automatic cycles sleep / transmission
•
Calculate distance using RSSI values
•
Perfect for indoor location networks (RTLS)
•
Scan devices with maximum inquiry time
•
Scan devices with maximum number of nodes
•
Scan devices looking for a certain user by MAC address
•

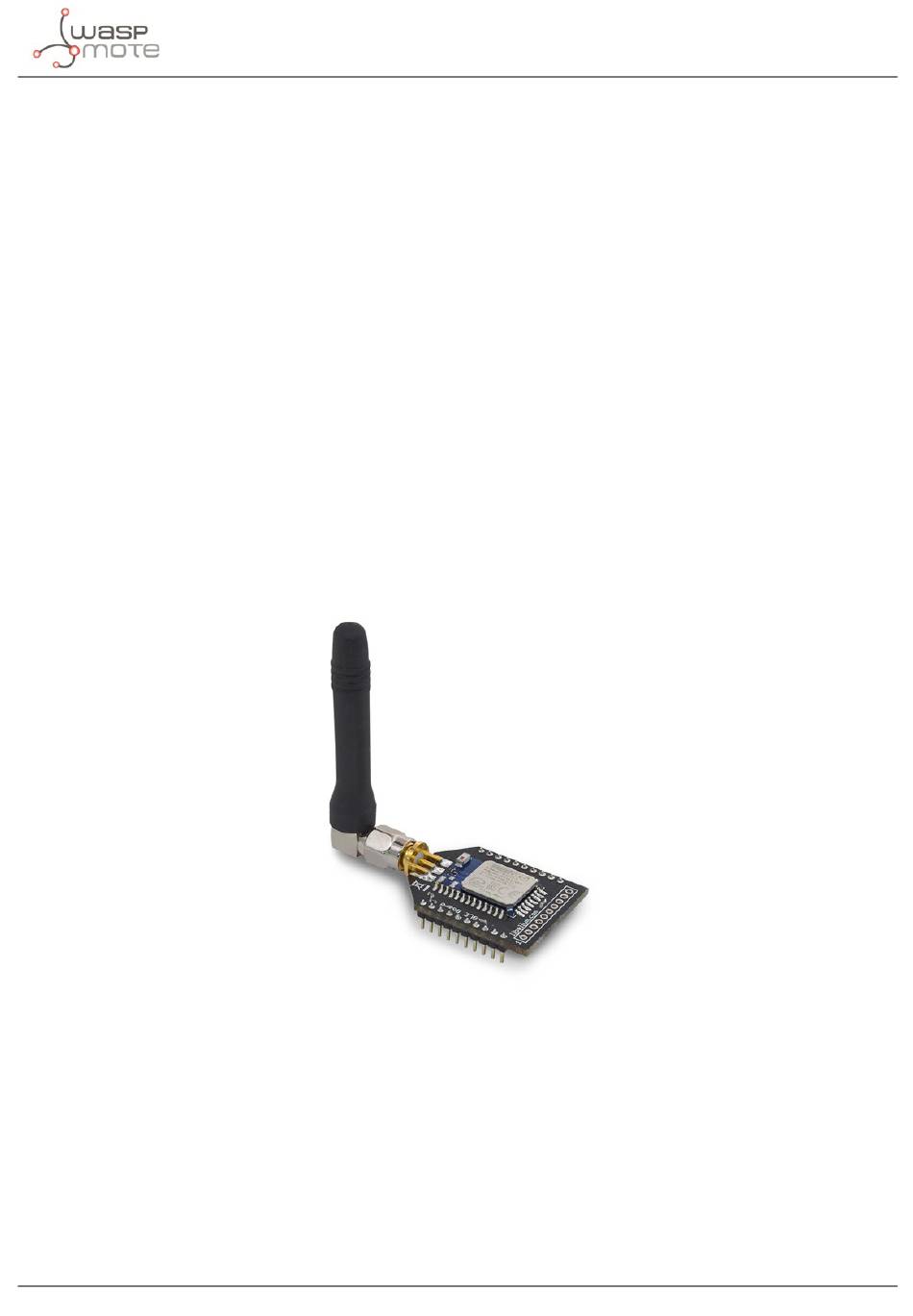

Figure: Waspmote Bluetooth Low Energy module
BLE modules use the 2.4 GHz band (2402 MHz – 2480 MHz). It has 37 data channels and 3 advertisement channels,
with a 2MHz spacing.
Bluetooth Low Energy module
