17. 3G module

Waspmote can integrate a UMTS (Universal Mobile Telecommunication System based in WCDMA technology) /
GPRS (General Packet Radio Service) module to enable communication using the 3G/GPRS mobile telephone
network.
Model: SIM5215 (SIMCom)
•
Versions: Europe and America/Australia
•
Europe version:
•
Dual-Band: 900/2100 MHz
-
Tri-Band: 850/900/1800 MHz
-
America/Australia version:
•
Dual-Band: 850/1900 MHz
-
Quad-Band: 850/900/1800/1900 MHz
-
WCDMA (downlink): up to 384 kbps
•
WCDMA (uplink): up to 384 kbps
•
TX power:
•
UMTS 850/900/1900/2100: 0.25 W
-
GSM 850/900: 2 W
-
DCS 1800 / PCS 1900: 1 W
-
Sensitivity: -106 dBm
•
Antenna connector: U.FL
•
External antenna: 0 dBi
•
This module can carry out the following tasks:
Support microSD card up to 32 GB
•
64 MB of internal storage space
•
Making/Receiving calls
•
Making 'x'-second lost calls
•
Sending/Receiving SMS
•
Single connection and multiple connections TCP/IP and UDP/IP clients
•
TCP/IP server
•
HTTP and HTTPS service
•
FTP and FTPS service (downloading and uploading files)
•
Sending/receiving email (SMTP/POP3)
•
This model uses the UART1 at a baudrate of 115200 bps to communicate with the microcontroller.
Related API libraries: Wasp3G.h, Wasp3G.cpp
All information about programming and operation can be found in the
All the documentation is located in the
Note: A rechargeable battery must be always connected when using this module (USB power supply is not enough).
Development section of Libelium website.
-102-
3G/GPRS Networking Guide.
3G module

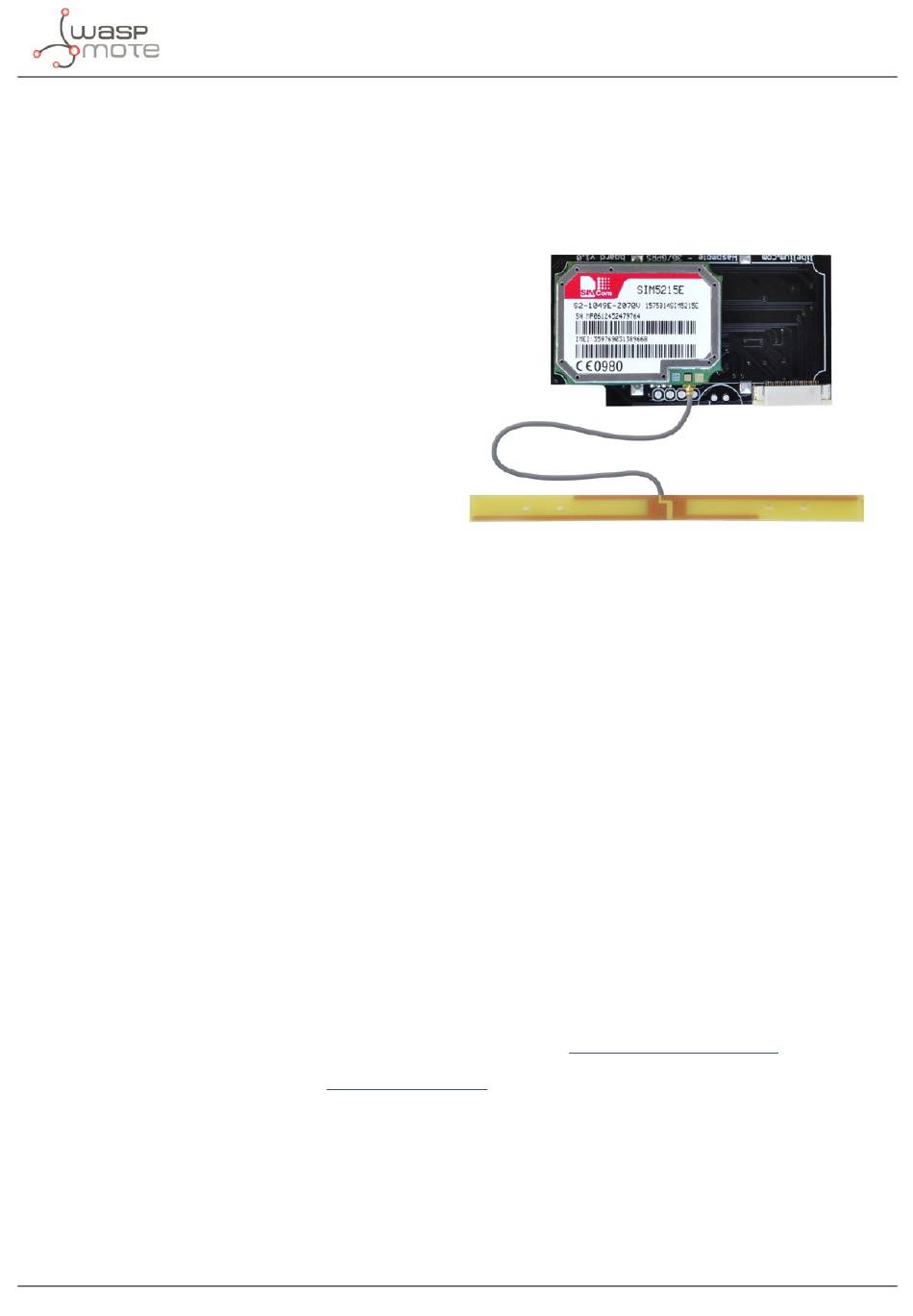

Figure: 3G module
v8.2
