4. Hardware

4.1. Modular architecture

Waspmote is based on a modular architecture. The idea is to integrate only the modules needed in each device.
These modules can be changed and expanded according to needs.
The modules available for integration in Waspmote are categorized in:
ZigBee/802.15.4 XBee modules (2.4 GHz, 868 MHz, 900 MHz)
•
LoRaWAN module (433/868/900 MHz)
•
LoRa module (868/900 MHz)
•
Sigfox module (868/900 MHz)
•
GPRS module (Quadband: 850/900/1800/1900 MHz)
•
3G module (Dual-Band WCDMA/UMTS 900/2100 MHz and Tri-Band GSM/GPRS/EDGE 850/900/1800 MHz)
•
NB-IoT / Cat-M module (global version, multiband)
•
4G Module (Europe/Brazil, America and Australia versions)
•
WiFi module
•
Bluetooth modules: Bluetooth Low Energy and Bluetooth Pro
•
NFC/RFID module
•
GPS module
•
Sensor modules (Sensor boards)
•
Storage module: SD Memory Card
•

4.2. Specifications

Microcontroller: ATmega1281
•
Frequency: 14.7456 MHz
•
SRAM: 8 kB
•
EEPROM: 4 kB
•
FLASH: 128 kB
•
SD Card: 16 GB
•
Weight: 20 g
•
Dimensions: 73.5 x 51 x 13 mm
•
Temperature range: [-30 ºC, +70 ºC]*
•
* Temporary extreme temperatures are supported. Regular recommended usage: -20, +60 ºC.

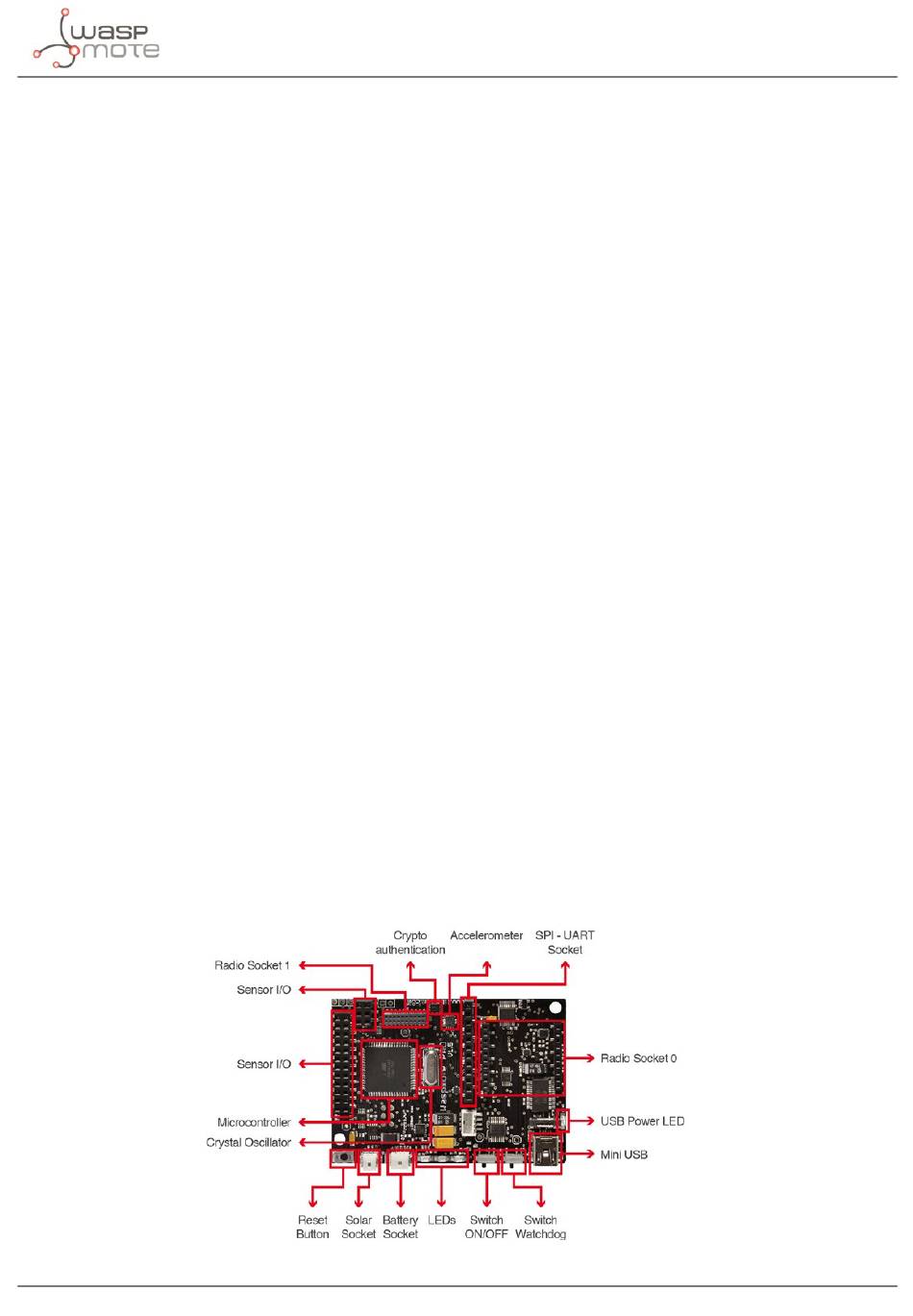

Figure: Main Waspmote components – Top side
