28.3. USB

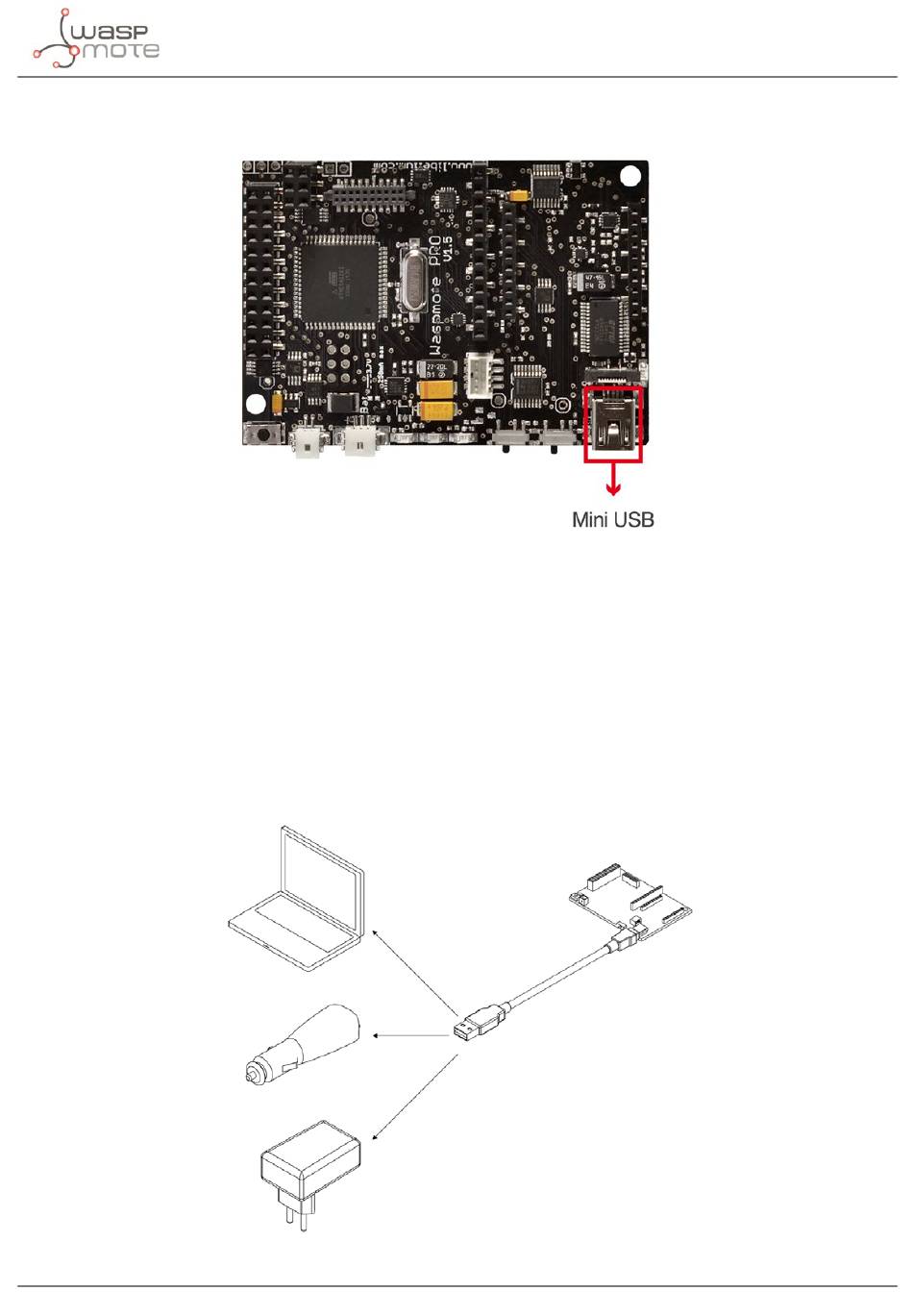

Figure: Mini-USB connector
Waspmote's USB power sources are:
USB to PC connection
•
USB to 220 V connection
•
USB to vehicle connector connection
•
The charging voltage through the USB has to be 5 V.
The maximum charging current through the USB is 480 mA (100 mA in batches since summer 2018).
The mini USB connector must be standard mini USB model B.
Figure: Possible connections for the USB
-128-
Power supplies
v8.2
