9.2. XBee-PRO ZigBee

Radio version
XBee-PRO ZigBee
* To determine your range, perform a range test under your operating conditions

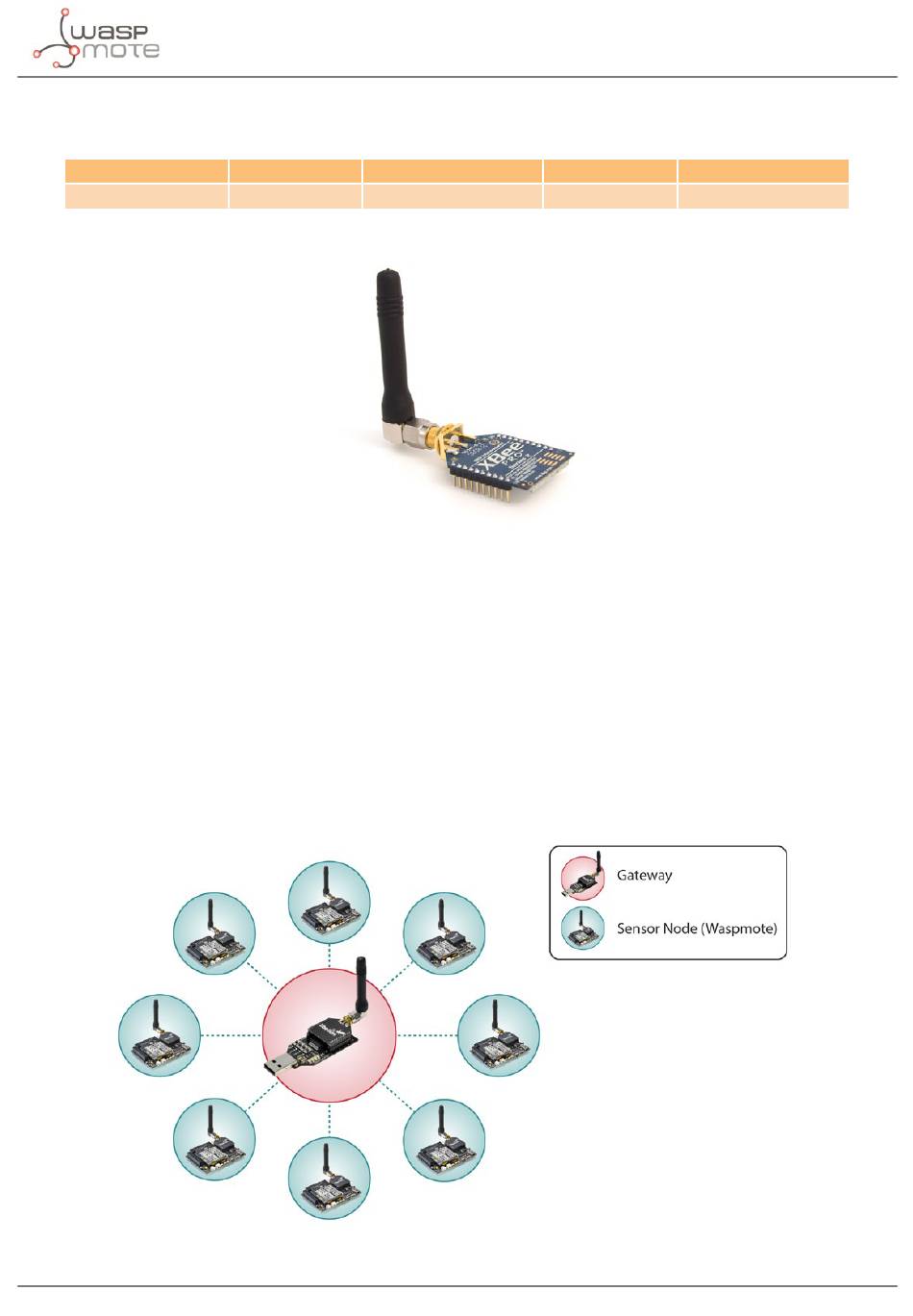

Figure: XBee-PRO ZigBee
As the ZigBee standard is supported in the IEEE 802.15.5 link layer, it uses the same channels as described in the
previous section, with the peculiarity that the XBee-PRO ZigBee model limits the number of channels to 13.
The XBee-PRO ZigBee modules comply with the ZigBee-PRO v2007 standard. These modules add certain
functionalities to those contributed by ZigBee, such as:
Node discovery: some headings are added so that other nodes within the same network can be discove-
•
red. It allows a node discovery message to be sent, so that the rest of the network nodes respond indicating
their specific information (Node Identifier, @MAC, @16 bits, RSSI).
Duplicated packet detection: This functionality is not set out in the standard and is added by the XBee
•
modules.
The topologies in which these modules can be used are: star and tree.
Figure: Star topology
Frequency Transmission power
2.4 GHz 17 dBm
Sensitivity
-102 dBm
-86-
802.15.4/ZigBee/RF modules
Range*
3200 m
