Waspmote Kit
3.11.2. Smart Security
The main applications for this Waspmote Plug & Sense! configuration are perimeter access control, liquid presence
detection and doors and windows openings. Besides, a relay system allows this model to interact with external
electrical machines.

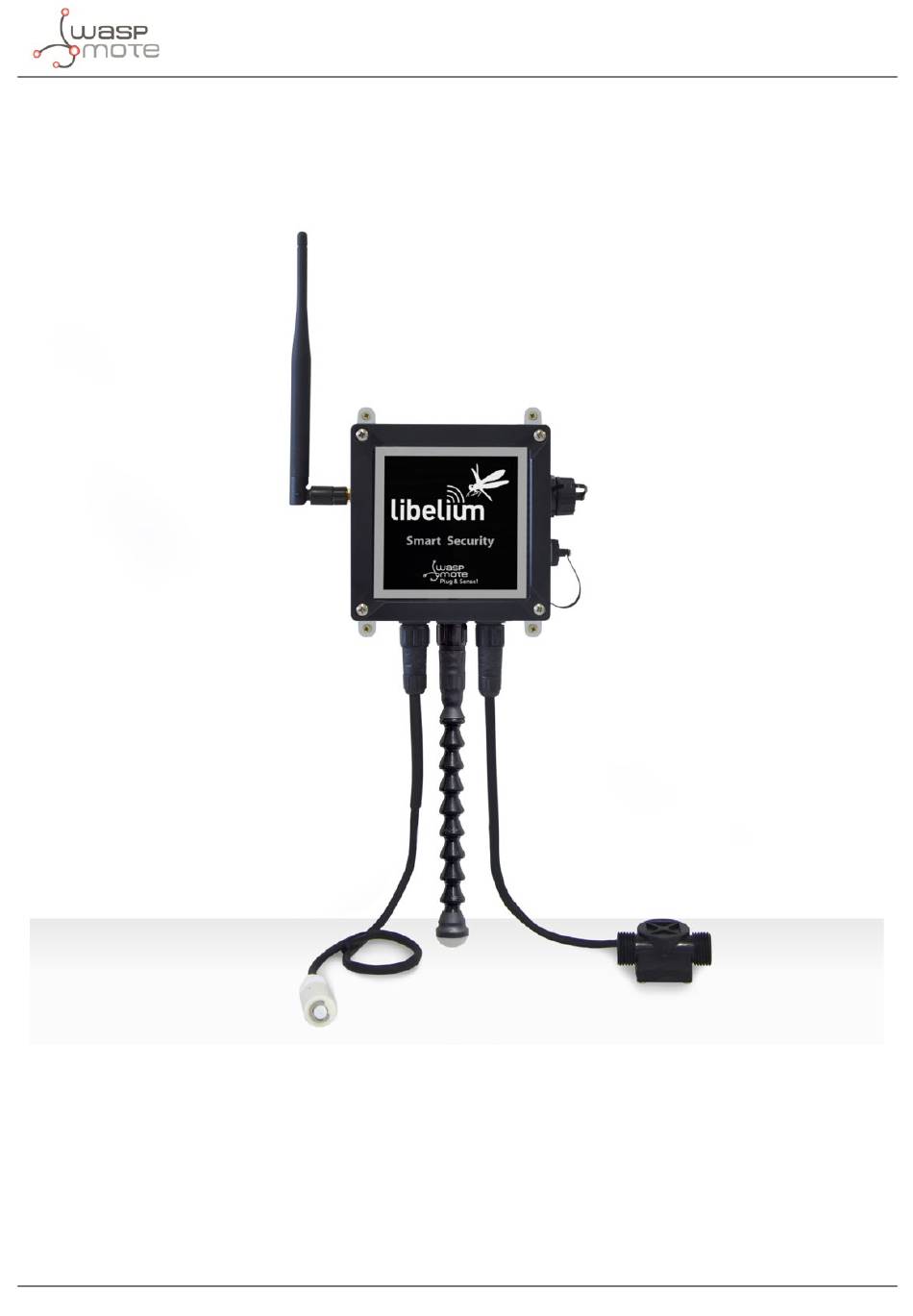

Figure: Smart Security Waspmote Plug & Sense! model
Note: The probes attached in this photo could not match the final location. See next table for the correct configuration.
-34-
v8.2
