Libelium Waspmote Technical Manual page 35

Sensor
Socket
A, C, D or E
B
F
Figure: Sensor sockets configuration for Smart Security model
As we see in the figure below, thanks to the directional probe, the presence sensor probe (PIR) may be placed in
different positions. The sensor can be focused directly to the point we want.

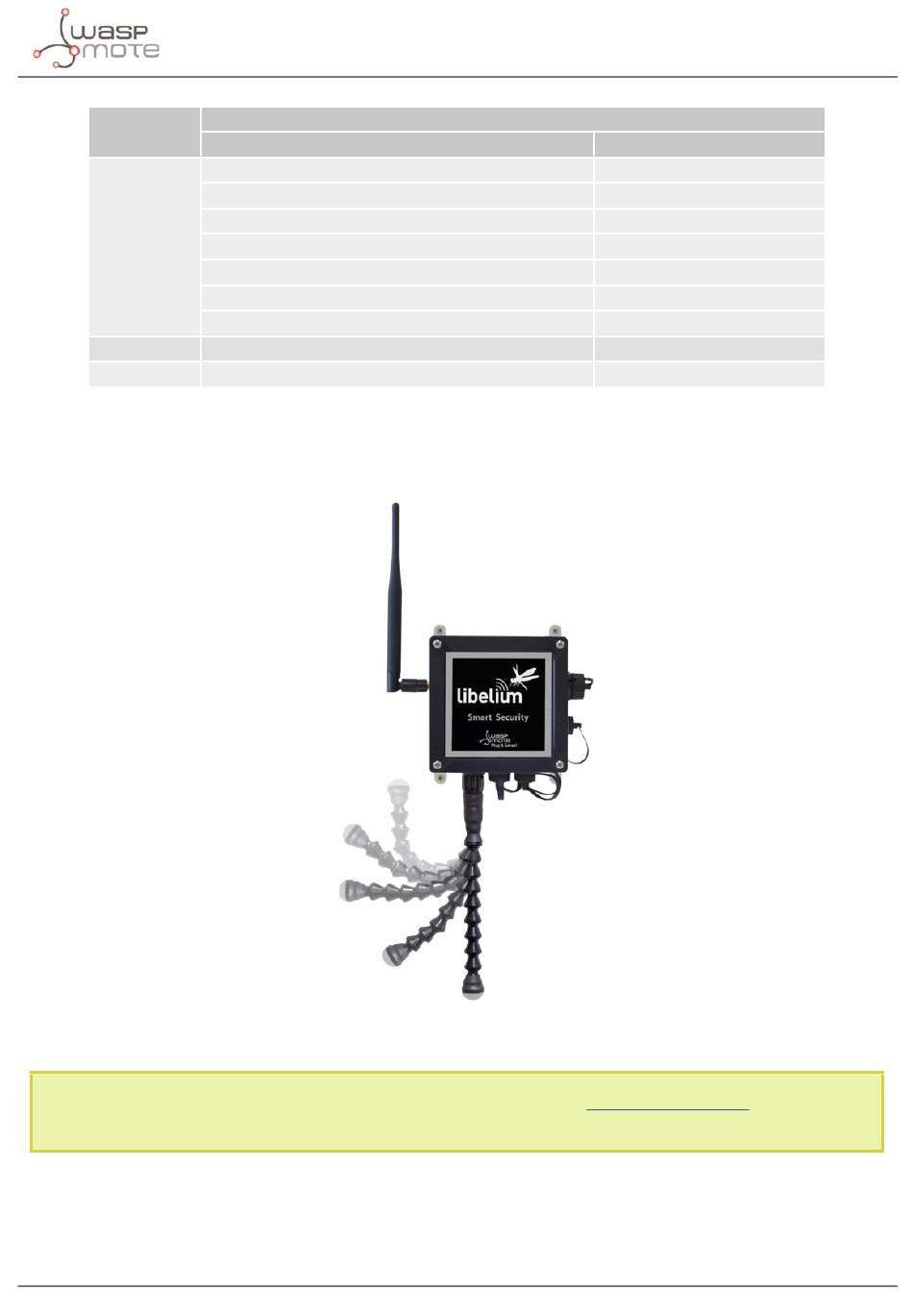

Figure: Configurations of the Presence sensor probe (PIR)
Note: For more technical information about each sensor probe go to the
website.
Sensor probes allowed for each sensor socket
Parameter
Temperature + Humidity + Pressure
Luminosity (Luxes accuracy)
Ultrasound (distance measurement)
Presence - PIR
Liquid Level (combustible, water)
Liquid Presence (Point, Line)
Hall Effect
Liquid Flow (small, medium, large)
Relay Input-Output
Reference
9370-P
9325-P
9246-P
9212-P
9239-P, 9240-P
9243-P, 9295-P
9207-P
9296-P, 9297-P, 9298-P
9270-P
Development section
-35-
