22. Expansion Radio Board

The Expansion Board allows to connect two communication modules at the same time in the Waspmote sensor
platform. This means a lot of different combinations are possible using any of the wireless radios available for
Waspmote: 802.15.4, ZigBee, DigiMesh, 868 MHz, 900 MHz, LoRa, WiFi, GPRS, 3G, NB-IoT / Cat-M, 4G, Sigfox,
LoRaWAN, Bluetooth Pro, Bluetooth Low Energy and RFID/NFC. Besides, the following Industrial Protocols modules
are available: RS-485/Modbus and CAN Bus.

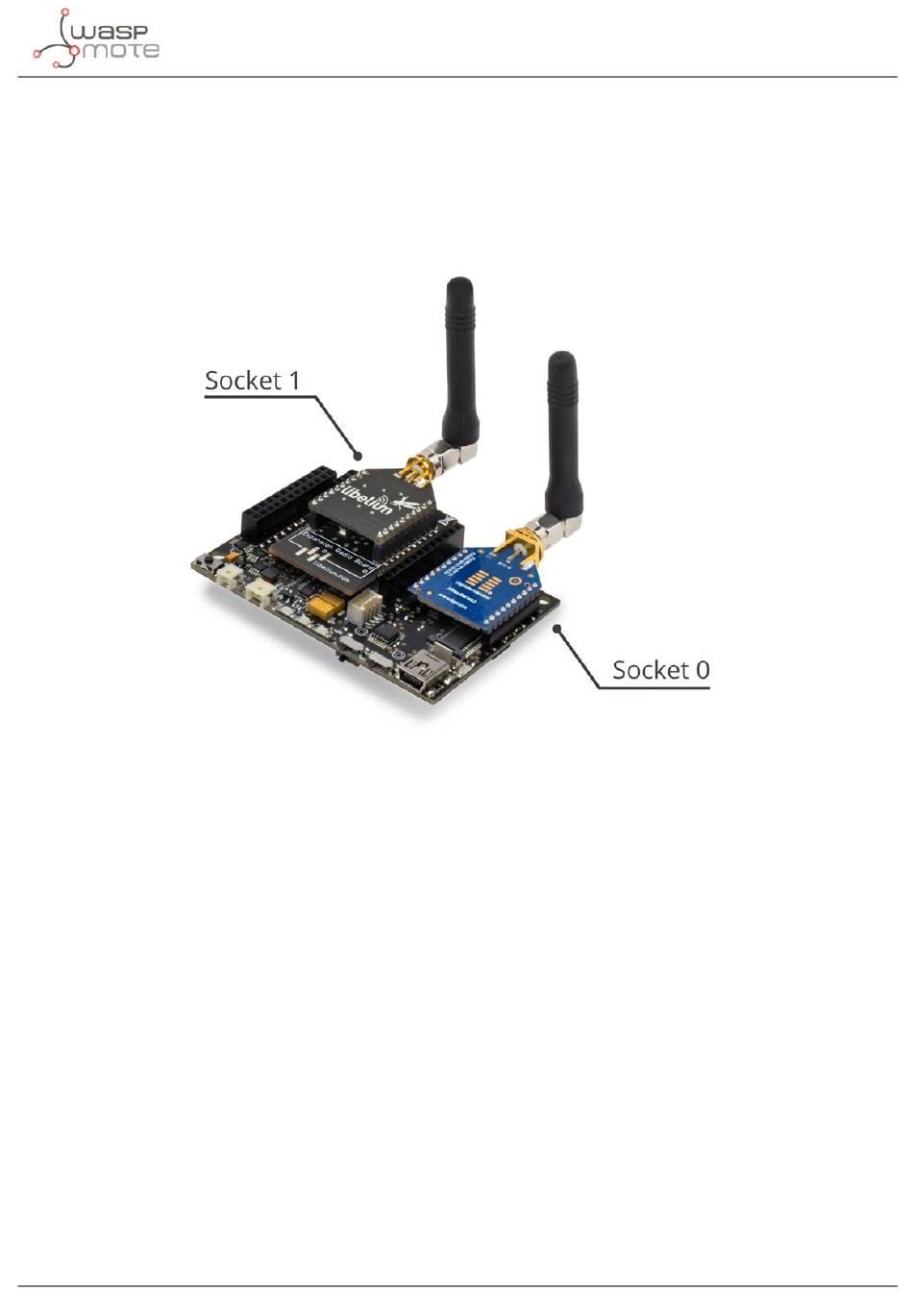

Figure: Expansion Radio Board
Some of the possible combinations are:
LoRaWAN - GPRS
•
802.15.4 - Sigfox
•
868 MHz - RS-485
•
NB-IoT / Cat-M - WiFi
•
DigiMesh - 4G
•
NB-IoT / Cat-M - RFID/NFC
•
WiFi - 3G
•
CAN Bus - Bluetooth
•
etc.
•
Remark: GPRS, 3G, NB-IoT / Cat-M and 4G modules do not need the Expansion Board to be connected to Waspmote.
They can be plugged directly in the socket1.
Applications:
Multifrequency Sensor Networks (2.4 GHz – 868/900 MHz)
•
Bluetooth - ZigBee hybrid networks
•
NFC (RFID) applications with 3G/GPRS
•
ZigBee - WiFi hybrid networks
•
