21.2. RS-485/Modbus module

Technical details:
Protocols: RS-485 and Modbus
Standard: EIA RS-485
Physical media: Twisted pair
Connector: DB9
Network topology: Point-to-point, Multi-dropped, Multi-point
Maximum devices: 32 drivers or receivers
Mode of operation: Differential signaling
Maximum speed: 460800 bps
Voltage levels: -7 V to +12 V
Mark(1): Positive Voltages (B-A > +200 mV)
Space(0): Negative voltages (B-A < -200 mV)
Available signals: Tx+/Rx+, Tx-/Rx-(Half Duplex)Tx+, Tx-, Rx+, Rx- (Full Duplex)
Available sockets in Waspmote: socket 0
Applications:
Industrial Equipment
Machine to Machine (M2M) communications
Industrial Control Systems, including the most common versions of Modbus and Profibus
Programmable logic controllers
RS485 is also used in building automation
Interconnect security control panels and devices
Related API libraries:
Wasp485.h, Wasp485.cpp
ModbusMaster.h, ModbusMaster.cpp
ModbusSlave.h, ModbusSlave.cpp
All information about their programming and operation can be found in the
the Modbus Communication
All the documentation is located in the
Guide.
Development section
RS-485 Communication Guide and
in the Libelium website.
-112-
Industrial Protocols

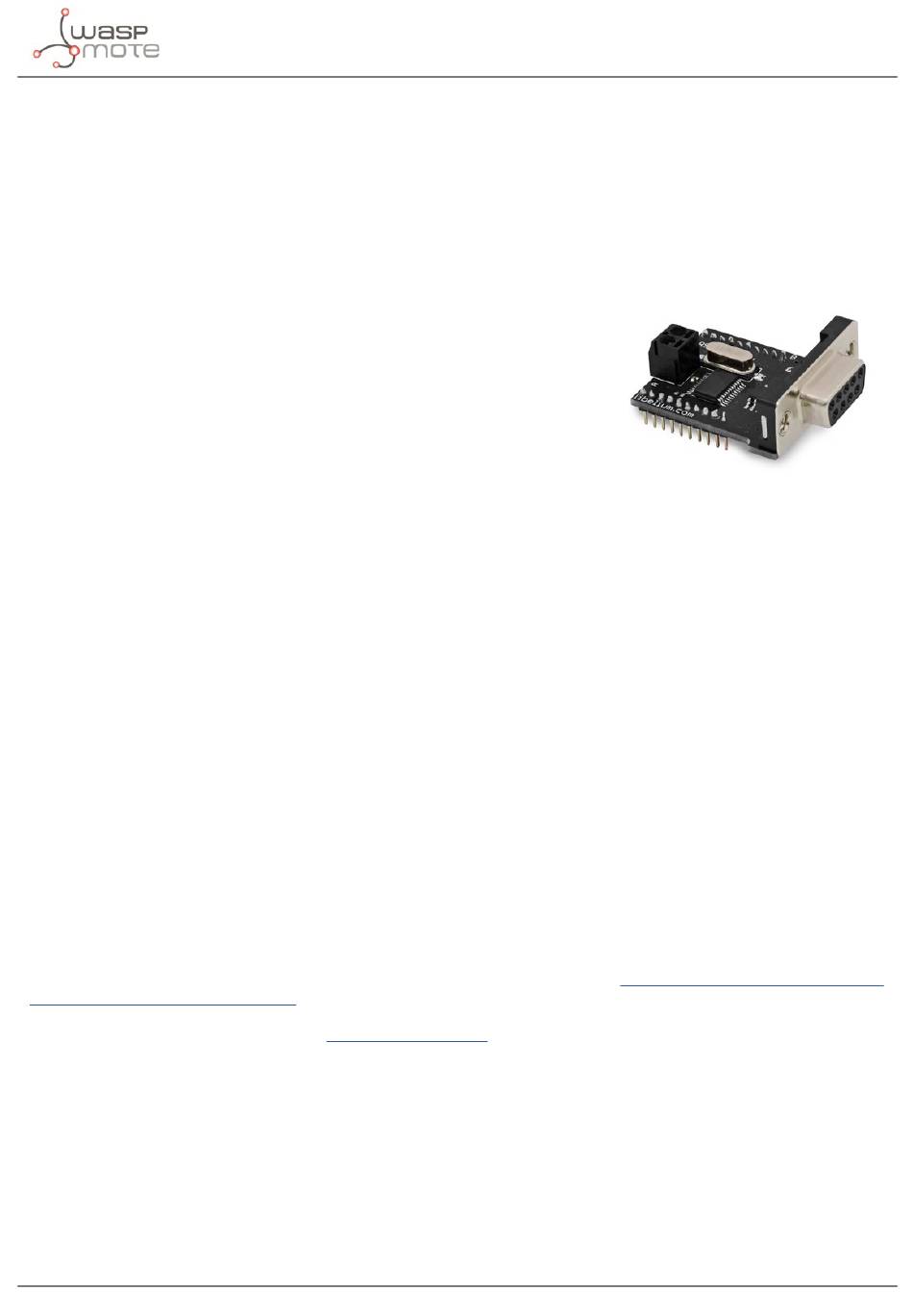

Figure: RS-485/Modbus module
v8.2
