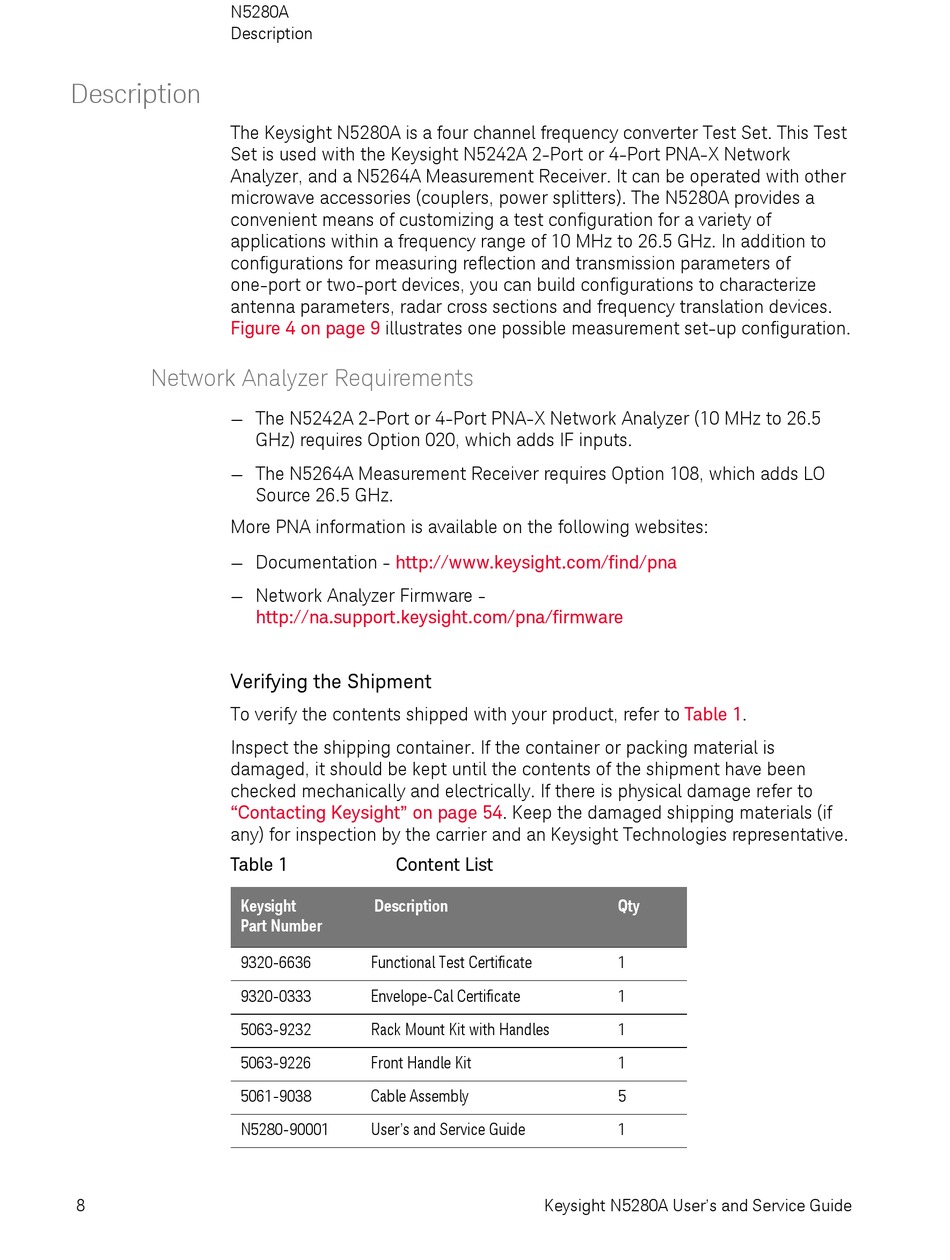

N5280A
Description
Description
The Keysight N5280A is a four channel frequency converter Test Set. This Test
Set is used with the Keysight N5242A 2-Port or 4-Port PNA-X Network
Analyzer, and a N5264A Measurement Receiver. It can be operated with other
microwave accessories (couplers, power splitters). The N5280A provides a
convenient means of customizing a test configuration for a variety of
applications within a frequency range of 10 MHz to 26.5 GHz. In addition to
configurations for measuring reflection and transmission parameters of
one-port or two-port devices, you can build configurations to characterize
antenna parameters, radar cross sections and frequency translation devices.
Figure 4 on page 9
Network Analyzer Requirements
— The N5242A 2-Port or 4-Port PNA-X Network Analyzer (10 MHz to 26.5
— The N5264A Measurement Receiver requires Option 108, which adds LO
More PNA information is available on the following websites:
— Documentation -
— Network Analyzer Firmware -
Verifying the Shipment
To verify the contents shipped with your product, refer to
Inspect the shipping container. If the container or packing material is
damaged, it should be kept until the contents of the shipment have been
checked mechanically and electrically. If there is physical damage refer to
"Contacting Keysight" on page
any) for inspection by the carrier and an Keysight Technologies representative.
Table 1
Keysight
Part Number
9320-6636
9320-0333
5063-9232
5063-9226
5061-9038
N5280-90001
8
illustrates one possible measurement set-up configuration.
GHz) requires Option 020, which adds IF inputs.
Source 26.5 GHz.
http://www.keysight.com/find/pna
http://na.support.keysight.com/pna/firmware
Content List
Description
Functional Test Certificate
Envelope-Cal Certificate
Rack Mount Kit with Handles
Front Handle Kit
Cable Assembly
User's and Service Guide
54. Keep the damaged shipping materials (if
Qty
1
1
1
1
5
1
Keysight N5280A User's and Service Guide
Table
1.
