N5280A
Operational Check

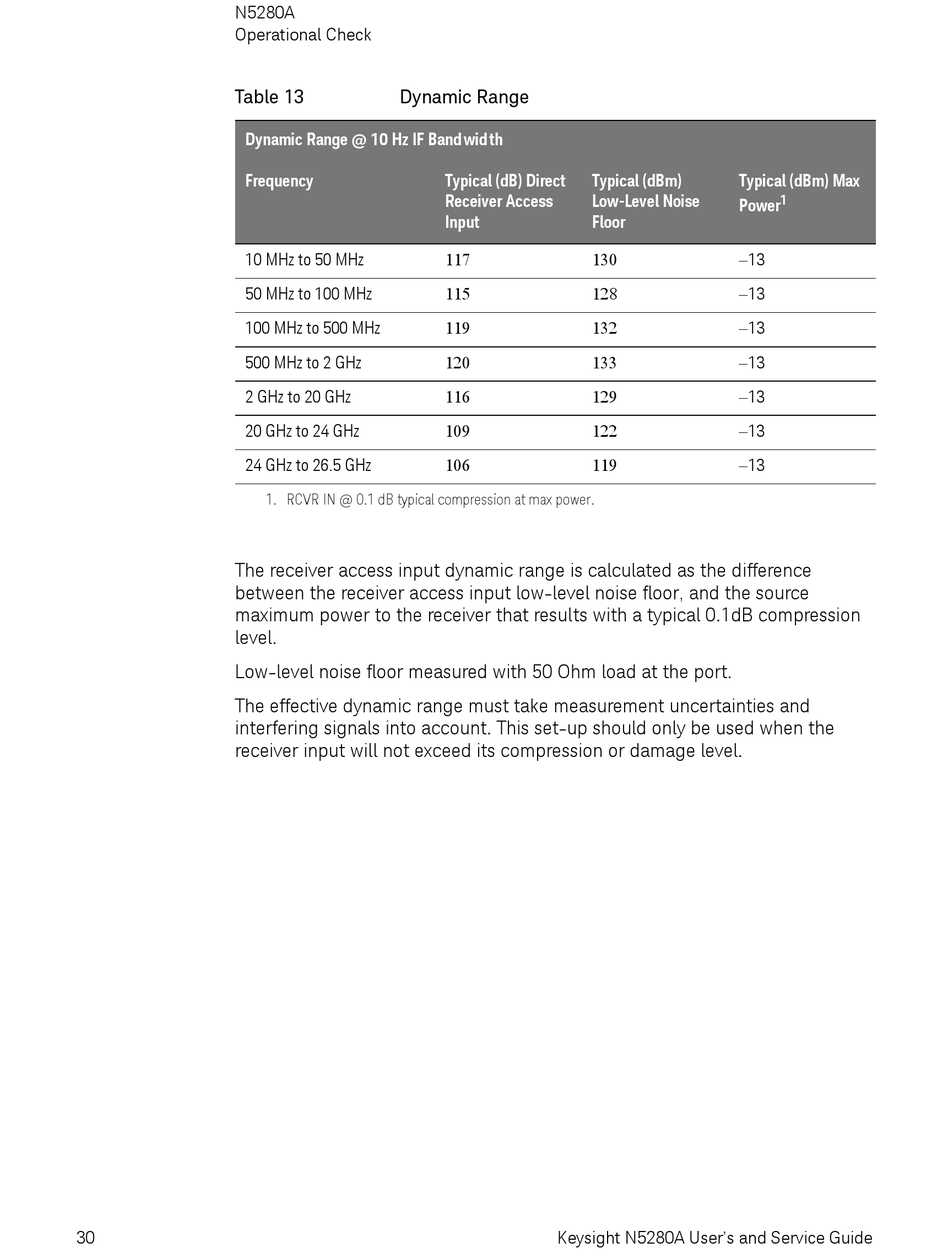

Table 13
Dynamic Range @ 10 Hz IF Band wid th
Frequency
10 MHz to 50 MHz
50 MHz to 100 MHz
100 MHz to 500 MHz
500 MHz to 2 GHz
2 GHz to 20 GHz
20 GHz to 24 GHz
24 GHz to 26.5 GHz
The receiver access input dynamic range is calculated as the difference
between the receiver access input low-level noise floor, and the source
maximum power to the receiver that results with a typical 0.1dB compression
level.
Low-level noise floor measured with 50 Ohm load at the port.
The effective dynamic range must take measurement uncertainties and
interfering signals into account. This set-up should only be used when the
receiver input will not exceed its compression or damage level.
30
Dynamic Range
1. RCVR IN @ 0.1 dB typical compression at max power.
Typical (dB) Direct
Typical (dBm)
Receiver Access
Low-Level Noise
Input
Floor
Keysight N5280A User's and Service Guide
Typical (dBm) Max
1
Power
13
13
13
13
13
13
13
