N5280A
Operational Check

Instrument Setup (Source Calibration)

Using the power meter and power sensor, measure the PSG #1 (RF Source)
and PSG #2 (LO Source) power levels at the frequencies listed in the
on page 40
table.

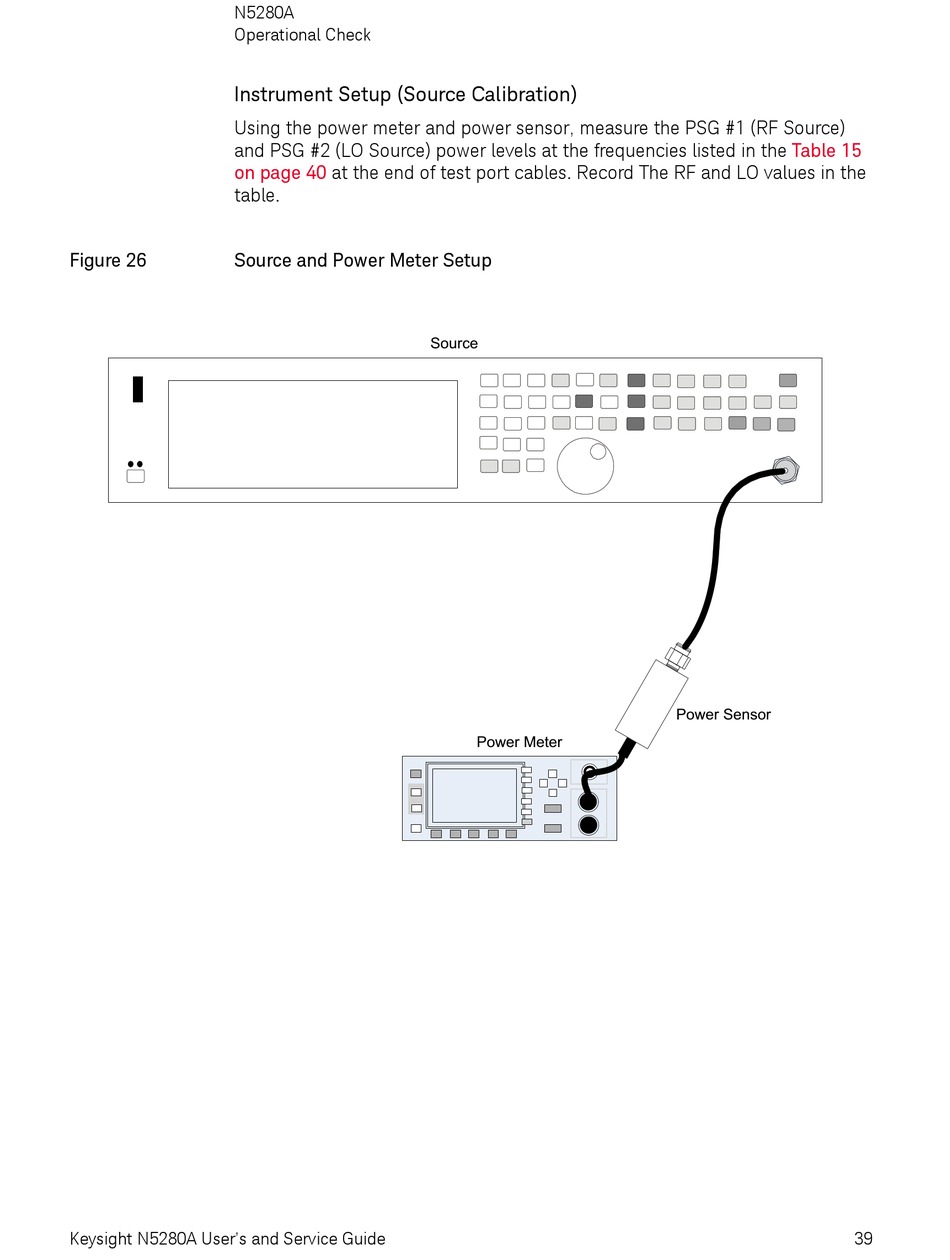

Figure 26 Source and Power Meter Setup
Keysight N5280A User's and Service Guide
at the end of test port cables. Record The RF and LO values in the
Source
Power Meter
Table 15
Power Sensor
39
