N5280A
Operational Check

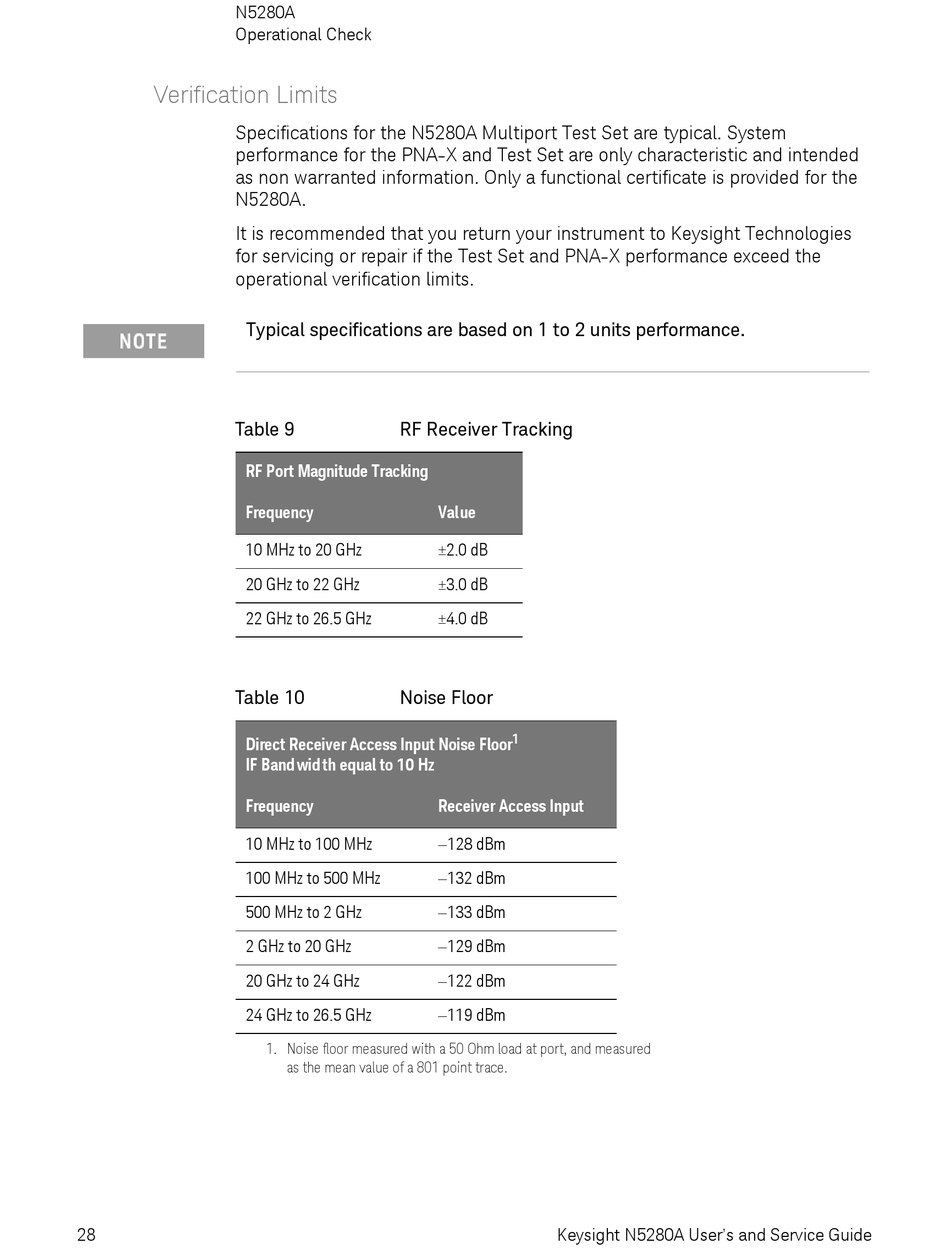

Verification Limits

Specifications for the N5280A Multiport Test Set are typical. System
performance for the PNA-X and Test Set are only characteristic and intended
as non warranted information. Only a functional certificate is provided for the
N5280A.
It is recommended that you return your instrument to Keysight Technologies
for servicing or repair if the Test Set and PNA-X performance exceed the
operational verification limits.
Typical specifications are based on 1 to 2 units performance.
Table 9
RF Port Magnitude Tracking
Frequency
10 MHz to 20 GHz
20 GHz to 22 GHz
22 GHz to 26.5 GHz
Table 10
Direct Receiver Access Input Noise Floor
IF Band wid th equal to 10 Hz
Frequency
10 MHz to 100 MHz
100 MHz to 500 MHz
500 MHz to 2 GHz
2 GHz to 20 GHz
20 GHz to 24 GHz
24 GHz to 26.5 GHz
28
RF Receiver Tracking
Value
±2.0 dB
±3.0 dB
±4.0 dB
Noise Floor
Receiver Access Input
128 dBm
132 dBm
133 dBm
129 dBm
122 dBm
119 dBm
1. Noise floor measured with a 50 Ohm load at port, and measured
as the mean value of a 801 point trace.
1

Keysight N5280A User's and Service Guide
