N5280A

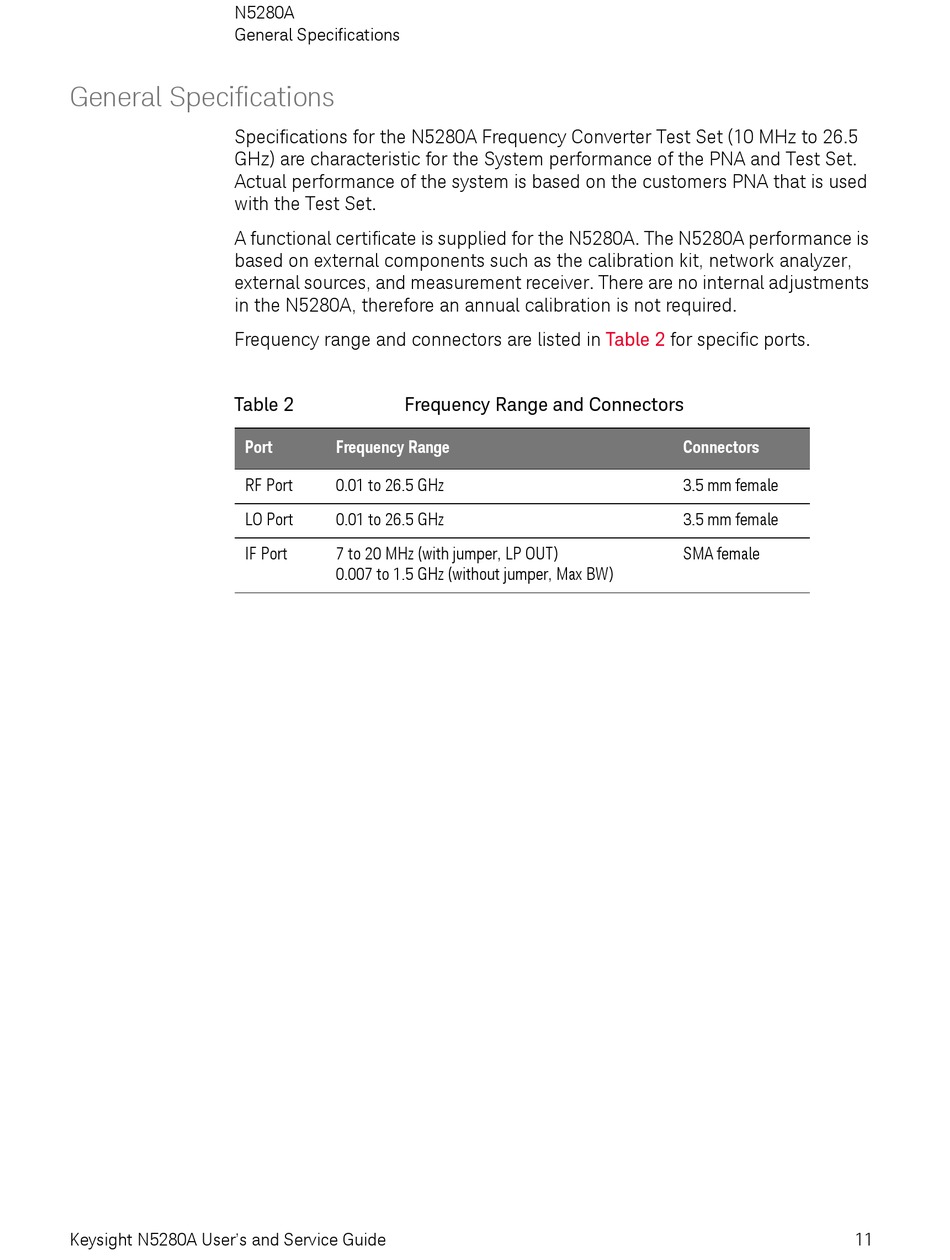

General Specifications

General Specifications
Specifications for the N5280A Frequency Converter Test Set (10 MHz to 26.5
GHz) are characteristic for the System performance of the PNA and Test Set.
Actual performance of the system is based on the customers PNA that is used
with the Test Set.
A functional certificate is supplied for the N5280A. The N5280A performance is
based on external components such as the calibration kit, network analyzer,
external sources, and measurement receiver. There are no internal adjustments
in the N5280A, therefore an annual calibration is not required.
Frequency range and connectors are listed in
Table 2
Port
RF Port
LO Port
IF Port
Keysight N5280A User's and Service Guide
Frequency Range and Connectors
Frequency Range
0.01 to 26.5 GHz
0.01 to 26.5 GHz
7 to 20 MHz (with jumper, LP OUT)
0.007 to 1.5 GHz (without jumper, Max BW)
Table 2
for specific ports.
Connectors
3.5 mm female
3.5 mm female
SMA female
