Triangular Base Assembly - Maytag MAT14CS Service Manual

Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Remove the tub. (see page 4-28).
2. To remove the tub support (see page 4-33).

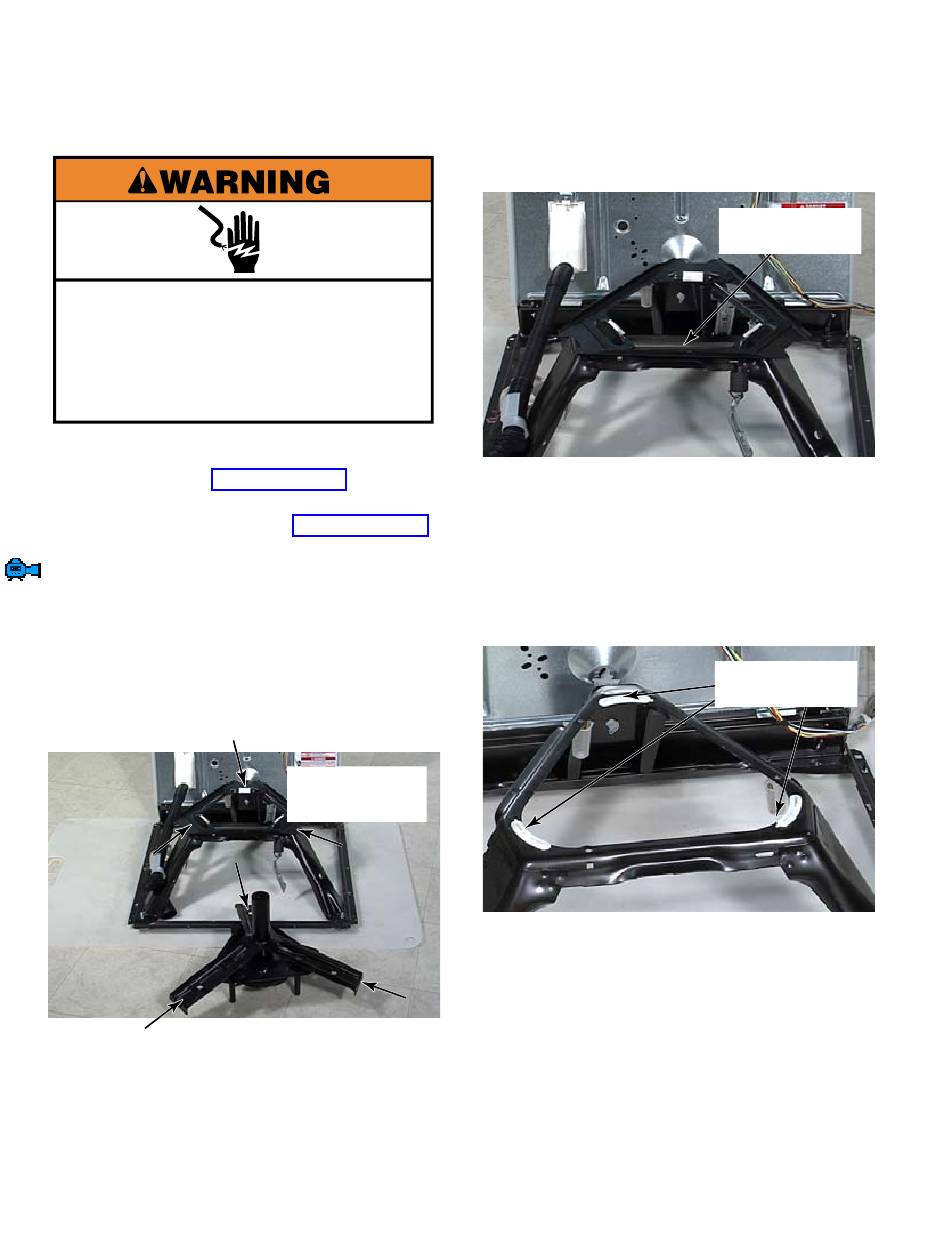

3. The base assembly is triangular shaped
with a leg on each of three corners. During
reassembly make sure that all parts are
reassembled with the corners of the
triangles aligned with each other.
4. The parts are symmetrical so they can be
aligned with any corner.
5. The tub support sits on the skate plate
which must be positioned with the pads
facing up for proper operation of the washer.

TriaNGuLar BaSe aSSeMBLY

Triangular
points align
6. Lift the skate plate off the base to remove it.
7. Below the skate plate are three suspension
pads on the washer base. If the pads are
cracked or flattened on the top they must
be replaced. Replace the Skate Plate if
substantial wear is noted on its underside.
8. Use a rubber mallet to tap the tabs of the
pad out of the holes in the base.
4-34
Skate plate
Suspension
pads
